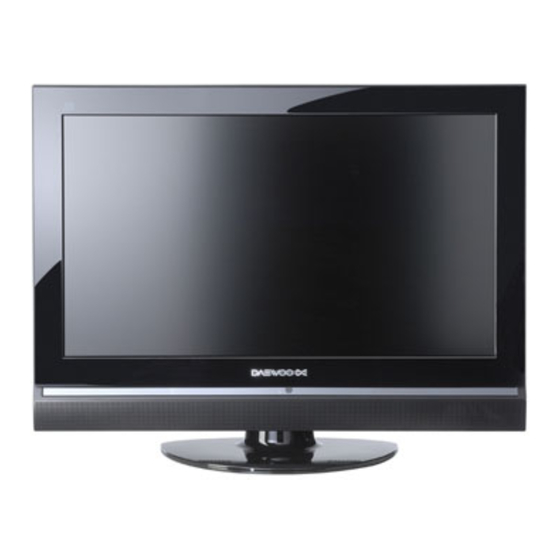

Daewoo DLP-26C2 Instruction Manual
  1. Manuals
  2. Brands
  3. Daewoo Manuals
  4. LCD TV
  5. DLP-26C2
  6. Instruction manual

Daewoo DLP-26C2 Instruction Manual

Lcd television
Hide thumbs Also See for DLP-26C2:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Instruction Manual
LCD TELEVISION

INSTRUCTION MANUAL

DLP-26C2
DLP-26C3
DLP-32C1
DLP-32C2
DLP-32C3
DLP-37C3
DLP-42C1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLP-26C2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo DLP-26C2

Summary of Contents for Daewoo DLP-26C2

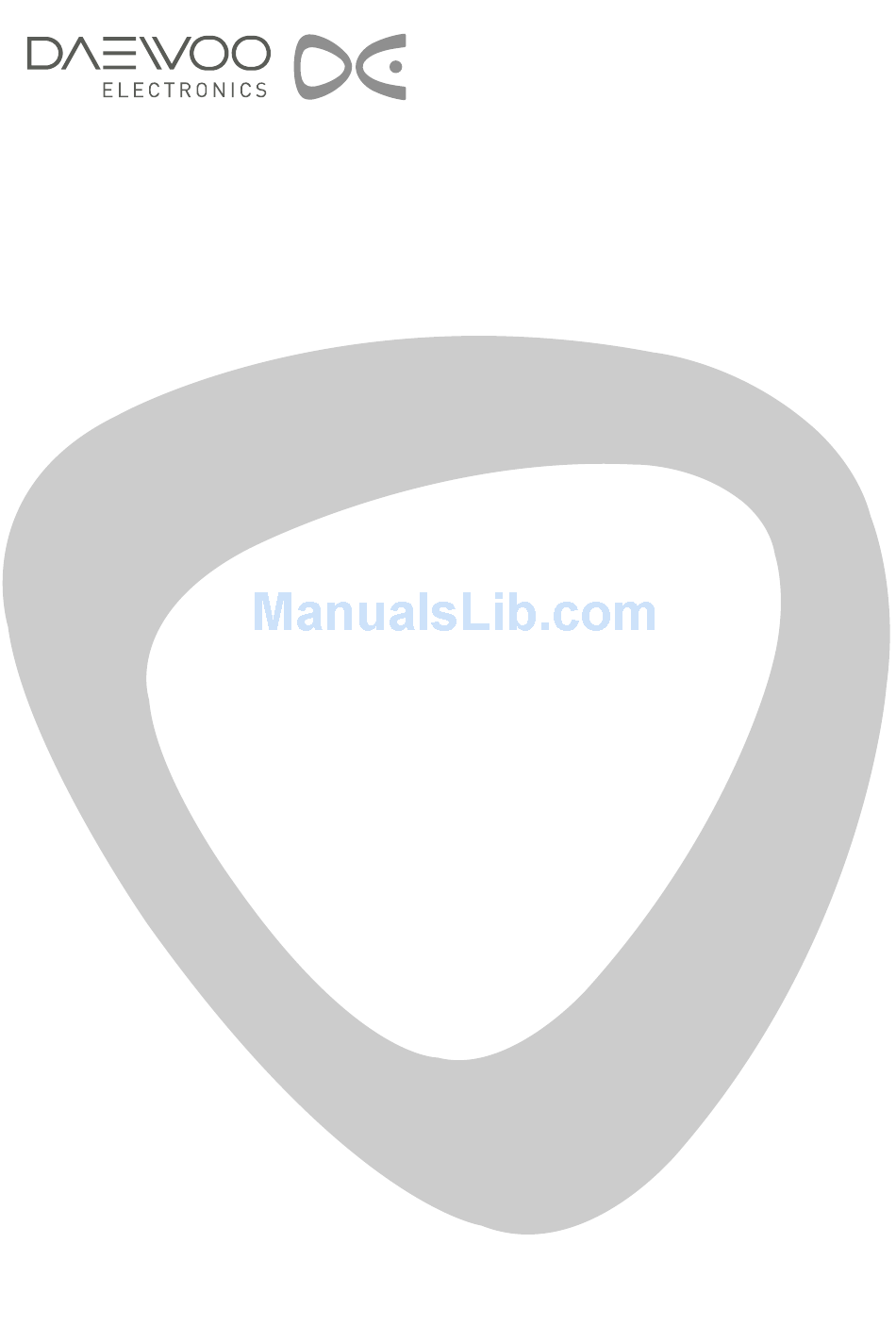

  • Page 1: Instruction Manual

    LCD TELEVISION INSTRUCTION MANUAL DLP-26C2 DLP-26C3 DLP-32C1 DLP-32C2 DLP-32C3 DLP-37C3 DLP-42C1...
  • Page 2 Caution CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulat- ed “dangerous voltage”...

  • Page 3: Power Source

    Important Safeguards Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television. 1. Read, Retain and Follow All Instructions Read all safety and operating instructions before operating the TV. Retain them safely for future reference.

  • Page 4: Replacement Parts

    Important Safeguards 13. Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
  • Page 5 Warning This section must be read carefully and followed by the user prior to the operation of the product. The manual states important instructions for the user's own safety, and the proper operation of the product. In case of an accident, please unplug the unit from the outlet immediately. To reduce the risk of electric shock, do Do not put any object that contains water - To prevent fire and damages to the product,...
  • Page 6 Warning This section must be read carefully and followed by the user prior to the operation of the product. The manual states important instructions for the user's own safety, and the proper operation of the product. Please keep the user's manual in a safe place for future reference. Do not cover the top of the television set.

  • Page 7: Table Of Contents

    Table of Contents Installation and Maintenance Antenna Connection Video Connection Camcorder & Video Game Connection DVD Player Connection STB Connection PC Connection Cable TV Broadcasting Connection Connect with the Dolby Digital AMP Name of Each Part Basic Guide Parts of the Remote Controller Method To Use Basic Menu To Watch TV Setting Up TV Stations...
  • Page 8 Supplied Accessories Make sure that the following accessories are provided with the product. AC cord AC cord Instruction manual Remote controller Batteries Microfiber sheet Cable holder (32/42C1 ONLY) Cover Bottom -When you install wall mounting you set up cover bottom like upper picture. The method of wire arrangement 1.

  • Page 9: Antenna Connection

    Antenna Connection Indoor Antenna Connection 1. Connect the feeder cable of the antenna to the combining adapter. WHEN THE IMAGE IS NOT CLEAR : Unclear screen image and bad reception may be a cause of wrong antenna connection. Be sure to check its direction and place when installing.
  • Page 10 Antenna Connection CTV Antenna Connection Such community TV Antenna installation may be found in most of co-op apartments. When a coaxial cable is used : Plug the coaxial cable to the antenna socket, and fix it firmly by turning it to the right.
  • Page 11 Antenna Connection Outdoor Antenna Connection Outdoor Antenna connection-such as VHF or/and UHF-may be necessary for installation at private houses Single Antenna Connection VHF Antenna BACK OF THE TV SET UHF Antenna HDMI INPUT OPTICAL UP-GRADE PCRT PC INPUT AUDIO S-VHS L - AUDIO - R COMPONENT ANT/CABLE...

  • Page 12: Video Connection

    Video Connection Connecting with an External Source You may connect an S-Video input to enjoy clearer and brighter picture images. You can make the connection with the AV3 input. BACK OF THE TV SET HDMI INPUT PC INPUT AUDIO S-VHS L - AUDIO - R Note : If S-video and RCA jack are connected the same time, The TV set will only detect the S-Video mode.

  • Page 13: Camcorder & Video Game Connection

    Camcorder & Video Game Connection Watching the Camcorder Recording on TV 1. Prepare the S-video and RCA connector. 2. These connectors connect to S-video or AV 3 as shown in the picture below. 3. Turn on the TV set and camcorder/video game. 4.

  • Page 14: Dvd Player Connection

    DVD Player connection When connecting with a component cable and Euro SCART cable BACK OF THE TV SET HDMI INPUT OPTICAL UP-GRADE PCRT PC INPUT AUDIO S-VHS L - AUDIO - R COMPONENT Note : • When you connect with the component video, please check the colour of the cable between the DVD and TV set.

  • Page 15: Stb Connection

    STB(Set Top Box) Connection When connecting with a HDMI cable BACK OF THE TV SET HDMI INPUT OPTICAL UP-GRADE PCRT PC INPUT AUDIO S-VHS L - AUDIO - R COMPONENT Set Top Box When connecting with a component cable BACK OF THE TV SET HDMI INPUT OPTICAL UP-GRADE PCRT...
  • Page 16 Connection When connecting with PC(D-Sub) cable. 1. First adjust resolution of the PC. (640 X 480, 800 X 600, 1024 X 768) 2. Connect between PC and TV set using the D-sub and Audio cable as shown in the picture below. 3.

  • Page 17: Pc Connection

    Connection PC CONNECTION NOTES: 1) The resolution of the TV set is best at 1024 768(XGA). 2) If there is a [Vertial Frequency] setting menu in the [Display] Menu of the PC, adjust the frequency to 60Hz. 3) If the PC resolution is too high, it may be hard to detect signals. Select a suitable resolution. 4) HDMI input port receives only digital Signal.

  • Page 18: Cable Tv Broadcasting Connection

    Cable TV Broadcasting Connection External Input Connection Source Watching cable television is only possible after you have subscribed to the local broadcasting company and installed a cable receiver. You may make the connection to any of the Component input and SCART input AV1, AV2.

  • Page 19: Connect With The Dolby Digital Amp

    Connect with the Dolby Digital AMP. If you connect the optical output to a Dolby digital AMP, you can listen to better sound. BACK OF THE TV SET HDMI INPUT OPTICAL UP-GRADE PCRT PC INPUT AUDIO S-VHS L - AUDIO - R COMPONENT Optical output Dolby Digital AMP...

  • Page 20: Name Of Each Part

    Name of Each Part Front / Side Panel Buttons on the TV set have the same functions as those of the remote controller. MENU Front Panel Side Panel (Right) Control Key Buttons. Buttons : Each time you press this button, the TV will cycle through: TV =>...
  • Page 21 Name of Each Part Side and Rear Panel Side Panel HDMI INPUT OPTICAL UP-GRADE PCRT PC INPUT AUDIO S-VHS L - AUDIO - R COMPONENT Rear Panel...

  • Page 22: Parts Of The Remote Controller

    Parts of the Remote Controller This remote controller is universal; thus, it may be convertible for TV, Video, CTV, etc. (MUTE) : Press this button, and the sound goes off. Press again, and the sound returns. (POWER) : TV on/off button in Stand-By mode. MUTE POWER 3.
  • Page 23 Parts of the remote controller 18. DYNAMIC BASS : Using this button, you can enhance the bass. 19. 3D PANORAMA : Using this button, you can listen to MUTE POWER the virtual surround sound. : When sub screen is RF(TV) mode in the POP, P.PR PICTURE SOUND...

  • Page 24: Method To Use Basic Menu

    Method To Use Basic Menu Basic Menu - The basic menu appears on the screen if you press the “MENU” button of the remote control. - There are 5 items Picture, Screen, Sound, Function, and Install in the basic menu. - Each item has sub-items under it.

  • Page 25: To Watch Tv

    To Watch TV On/Off, Number, Mute, Recall, - Buttons with same name in the main body performs the same function. Press the " " button of the front side of the set or MUTE POWER Remote controller . • The buttons of the remote control and the main body PICTURE SOUND MULTIMEDIA...
  • Page 26 To Watch TV 1. Press the “ ” button of the main body. • The Stand By LED lamp turns on in red colour. • Press “ / ” button of the main body or “POWER” button of the remote control. POWER •...

  • Page 27: Setting Up Tv Stations

    Setting Up TV Stations Auto Tuning - All stations that can be received are stored by this method. It is recommended that you use Auto tuning during installation of this set. 1. Press the “MENU” button to select the Install menu. Mode Normal Brightness...

  • Page 28: Manual Tuning

    Setting Up TV Stations Manual tuning 1. Press the Number buttons(0~9) or the “ PR ” button to select a program number you want. MENU 2. Locate the selection bar on the Manual tuning at the Picture Install menu. Setup MENU •...
  • Page 29 Setting Up TV Stations Setup The Setup menu shows you information as follows: - Picture information: PAL, SECAM, and SECAM-L - Sound information: L, DK3, DK2, DK1, I, BG - Station name, Program number and Real channel number. 1. Searching for channels in the Setup menu Picture •...
  • Page 30 Setting Up TV Stations Edit The Edit menu shows you information as follows: - Program position assignment: Program number and Station name, Real channel number. - Skip information: Red (Skip Yes), White (Skip No) 1. Deleting the program positions. Edit - -- - -- - --...

  • Page 31: Selection Of Av And Multimedia Input Signal

    Selection of AV and Multimedia Input Signal When watching video, Camcorder, DVD, Cable TV with AV - See page 12 for connection method of Camcorder and Video. - When pressing ” ” button on the TV set, screen changes as follows: TV =>...
  • Page 32 Selection of AV and Multimedia Input Signal When connecting PC, STB, DVD with Multimedia 1. Pressing the "MULTIMEDIA" button on the remote controller. MUTE POWER • The screen changes as follows: PICTURE SOUND MULTIMEDIA PC => HDMI => Component => PC ASPECT RECALL C l o c k 1 2 : 0 0...

  • Page 33: Screen Adjustment

    Screen Adjustment When setting up various screen modes - The user may select various screens designed for a good picture without adjusting the brightness, contrast or colour individually. 1. Pressing the “PICTURE” button. MUTE POWER • The screen changes as follows: PICTURE SOUND MULTIMEDIA...
  • Page 34 Screen Adjustment When adjusting the screen to taste - You can enjoy various screens by adjusting Brightness, Contrast, Colour, Sharpness, etc to the user’s taste. 1. Select "PICTURE" by pressing the "MENU" button. Mode Normal Brightness • The menu screen appears as follows. Picture Contrast MENU...
  • Page 35 Screen Adjustment Adjustment of Screen Size in TV and AV mode - Randomly change the size of the screen. PICTURE SOUND MULTIMEDIA - The AUTO screen operates when power is first turned on. ASPECT RECALL 1. Pressing the "ASPECT" button on the remote controller. MENU •...
  • Page 36 Screen Adjustment Adjustment of the screen in the PC mode 1. Adjustment of the H-Position Aspect 16:9 H-Position • Move to H-Position in the Screen menu. Picture V-Position • Press the ” VOL ” buttons to adjust the horizontal MENU Phase Screen Auto...

  • Page 37: Pop Mode

    POP Mode 1. POP mode when main picture is TV and AV. PREV PR • Press the "P.MODE" button, then POP mode will function. • Press the "P.STILL" button, then Sub screen will freeze. P.MODE P.STILL P.SWAP P.INPUT • If you want to swap main for the Sub, press the "P.SWAP" button. DYNAMIC BASS 3D PANORAMA P.PR...

  • Page 38: Sound Adjustment

    Sound Adjustment When selecting various sound modes 1. Sound mode selects what you want. MUTE POWER • Press the "SOUND" button, then the sound status changes PICTURE SOUND MULTIMEDIA as followed : ASPECT RECALL Favourite => News => Music => Favourite MENU M o d e F a v o u r i t e...
  • Page 39 Sound Adjustment When adjusting sound to taste - The user can enjoy various sounds by adjusting Sound Mode, Equalizer, 3D Panorama, Dynamic Bass and Balance. 1. To adjust the audio equalizer Mode Normal • Move to Equalizers in the Sound menu. 100 Hz Picture 300 Hz...
  • Page 40 Sound Adjustment Multi-Sound and Stereo 1. Mono Sound Selection PREV PR • During Stereo sound reception if the stereo is weak, you can switch P.MODE P.STILL P.SWAP P.INPUT to MONO by pressing the button. Then the colour of DYNAMIC BASS 3D PANORAMA P.PR "MONO"...

  • Page 41: Selection Of Language

    Selection of Language Selection of Language When you first turn on the TV set, the window of language selection is displayed automatically. 1. Press the “MENU” button and select "Function". Language Timer Picture Child Lock MENU MGDI DEMO Screen Sound Function Install Position...

  • Page 42: Adjustment Of Time

    Adjustment of Time Adjustment of Time - You must previously adjust current time in order to reserve Automatic On/Off. 1. Setting the Clock Clock 12 : 00 Picture Auto Colck • Move to Timer in the Function menu. Auto Colck Pr MENU Screen Wake up...
  • Page 43 Adjustment of Time 4. Set up of Off Time Clock 12 : 00 Picture Auto Colck • Move to Timer in the Function menu. Auto Colck Pr MENU Screen Wake up • To go to the Off Timer, press the " PR " button. Wake up Time - - : - - Sound...

  • Page 44: Other Functions

    Other Functions 1. Setup of Child Lock Language • Move to Child Lock in the Function menu. Timer Picture Child Lock MENU • Select Child Lock to "On" using the “VOL ” button Screen MGDI DEMO • You can also select this function using the "LOCK" Sound button on the remote controller.

  • Page 45: Teletext

    Teletext Teletext SWITCHING TELETEXT ON/OFF Press the “TELETEXT” button ( The index page or the page viewed last will appear. Press the “TELETEXT” button again to return to the TV mode. NOTE: Teletext works only in TV/AV mode. COLOUR BUTTONS IN TOP/FLOF TELETEXT A red, green, yellow and blue field is shown at the bottom of the screen.

  • Page 46: Troubleshooting

    Troubleshooting Symptoms and Solutions Please check the following list prior to calling Daewoo Electronics Service Centre for assistance Symptom Check items Neither picture - Check the contact of sockets is all right. nor sound - Check the TV main power is on.
  • Page 47 Troubleshooting In PC mode Symptom Check items “OUT OF RANGE” - Check the resolution and frequency of your PC. Then, adjust them appears on the to optimum condition for LCD TV. screen - Refer to the table of PC mode input format (If registered resolution and frequency on the table no listed then no picture OUT OF RANGE will be displayed.)

  • Page 48: Standard Of Product

    Standard of Product Screen Size 26"(66Cm) 32"(81Cm) 37”(94Cm) 42”(106Cm) LCD Panel Aspect Ratio 16:9 16:9 16:9 16:9 Resolution 1366 x 768 (WXGA) 1366 x 768 (WXGA) 1366 x 768 (WXGA) 1366 x 768 (WXGA) Pixel Pitch 0.4215 mm 0.51075 mm 0.200 x 0.600 mm 0.227 x 0.681 mm Contrast Ratio 3000:1...
