Summary of Contents for Daewoo DLT-32C5

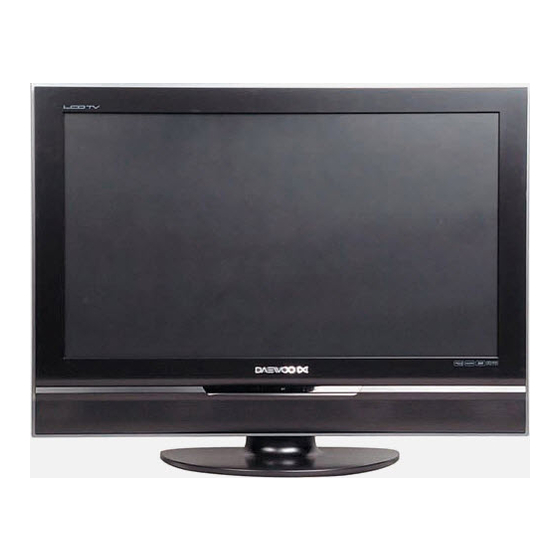

- Page 1 LCD TELEVISION INSTRUCTION MANUAL DLT-26C2 DLT-26C3 DLT-32C2 DLT-32C3 DLT-32C5 DLT-32C6 DLT-32C7 DLT-37C3 DLT-37C7 Helpline Number: 0870 100 2525...
- Page 2 RISK OF ELECTRIC SHOCK CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 3: Power Source
Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television. 1. Read, Retain and Follow All Instructions Read all safety and operating instructions before operating the TV. Retain them safely for future reference. Follow all operations and instructions accordingly. -
Page 4: Replacement Parts
Safeguards 12. Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. - Page 5 This section must be read carefully and followed by the user prior to the operation of the product. The manual states important instructions for the user’s own safety, and the proper operation of the product. WARNING In case of an accident, please unplug the unit from the outlet immediately. To reduce the risk of electric shock, do not remove cover or back.
- Page 6 This section must be read carefully and followed by the user prior to the operation of the product. The manual states important instructions for the user’s own safety, and the proper operation of the product. CAUTION Please keep the user’s manual in a safe place for future reference. Do not put volatile substance-such as benzene, naphtha- near the product since it may cause a change in the product’s colour.
-
Page 7: Table Of Contents
Installation and Maintenance Antenna Connection ....... . 9 Video Connection ....... . . 12 Camcorder &... -
Page 8: Supplied Accessories
Accessories Make sure that the following accessories are provided with the product. AC cord Remote controller Cable holder (Except C2 Series) The method of wire arrangement 1. Assemble the cable holder enclosed on the back of TV. (PICTURE1) (ASSEMBLY METHOD: After you push the „A”(prominence part of cable holder) in the hole, rotate the cable holder clockwise as an angle of 90°. -
Page 9: Antenna Connection
1. Connect the feeder cable of the antenna to the combining adapter. WHEN THE IMAGE IS NOT CLEAR : Unclear screen image and bad reception may be a cause of wrong antenna con- 2. Connect the combining adapter to the antenna input at the left side of the TV set. WHEN USING THE COMBINING ADAPTER : You may obtain the combining adapter at your closest Service Cen- indoor aerial Antenna... - Page 10 Connection Such community TV Antenna installation may be found in most of co-op apartments. When a coaxial cable is used : Plug the coaxial cable to the antenna socket, and fix it firmly by turning it to the right. Antenna socket on the wall When a feeder cable is used : Plug the coaxial cable to the antenna socket, and fix it firmly by turning it to the right.
-
Page 11: Outdoor Antenna Connection
Outdoor Antenna connection-such as VHF or/and UHF-may be necessary for installation at private houses. Single Antenna Connection VHF Antenna UHF Antenna Separate Antenna Connection. VHF Antenna In case of coaxial cable In case of feeder cable UHF Antenna Antenna Connection Outdoor Antenna Connection Back of the tv set HDMI INPUT... -
Page 12: Video Connection
Connection Connecting with an External Source You may connect an S-Video input to enjoy clearer and brighter picture images. You can make the connection with the AV3 input. Note : If S-video and RCA jack are connected the same time, The TV set will only detect the S-Video mode. -
Page 13: Camcorder & Video Game Connection
Watching the Camcorder Recording on TV 1. Prepare the S-video and RCA connector. 2. These connectors connect to S-video or AV 3 as shown in the picture below. 3. Turn on the TV set and camcorder/video game. 4. Select AV3/S-video mode, using the ” AV”button of the Remote controller or “ Camcorder Video game Note : If S-video and RCA jack are connected at the same time, the TV set only detects the S-Video... -
Page 14: Dvd Player Connection
DVD Player connection When connecting with a component cable and Euro SCART cable Note : • When you connect with the component video, please check the colour of the cable between the DVD and TV set. When connecting with a S-VHS cable and RCA cable Note : If S-video and RCA jack are connected at the same time, the TV set will only detect the S-Video mode. -
Page 15: Stb(Set Top Box) Connection
When connecting with a HDMI cable HDMI INPUT PC INPUT PC AUDIO S-VHS L - AUDIO - R Set Top Box When connecting with a component cable HDMI INPUT PC INPUT PC AUDIO S-VHS L - AUDIO - R Back of the tv set Set Top Box STB(Set Top Box) Connection... -
Page 16: When Connecting With A Hdmi Cable
Connection When connecting with PC(D-Sub) cable. 1. First adjust resolution of the PC. (Refer to table in page 17.) 2. Connect between PC and TV set using the D-sub and Audio cable as shown in the picture below. 3. Turn on the PC and TV set. 4. -
Page 17: Pc Connection
PC CONNECTION NOTES: 1) The resolution of the TV set is best at 1360(6) x 768(WXGA). 2) If there is a [Vertial Frequency] setting menu in the [Display] Menu of the PC, adjust the frequency to 60Hz. 3) If the PC resolution is too high, it may be hard to detect signals. Select a suitable resolution. 4) HDMI input port receives only digital Signal. -
Page 18: Cable Tv Broadcasting Connection
Broadcasting Connection External Input Connection Source Watching cable television is only possible after you have subscribed to the local broadcasting company and installed a cable receiver. You may make the connection to either the Component input or SCART input AV1 or AV2. Back of the tv set HDMI INPUT PC INPUT PC AUDIO... -
Page 19: Connect With The Dolby Digital Amp
If you connect the optical output to a Dolby digital AMP, you can listen to better sound. Surround L Connect with the Dolby Digital AMP. Back of the tv set HDMI INPUT PC INPUT PC AUDIO S-VHS L - AUDIO - R Dolby Digital AMP Woofer Centre... -
Page 20: Name Of Each Part
Name of Each Part Front / Side Panel Buttons on the TV set have the same functions as those of the remote controller. Control Key Buttons. ① TV/VIDEO Button : Each time you press this button, the TV will cycle through: TV / AV1 / AV2 / AV3(S-Video) / PC/HDMI / COMPONENT. -
Page 21: Side And Rear Panel
Side and Rear Panel HDMI INPUT PC INPUT PC AUDIO S-VHS L - AUDIO - R Rear Panel Name of Each Part OPTICAL COMPONENT Side Panel... -
Page 22: Parts Of The Remote Controller
Parts of the Remote This remote controller is universal; thus, it may be convertible for TV, Video, CTV, etc. Controller (MUTE) : Press this button, and the sound goes off. Press again, and the sound returns. (POWER) : TV on/off button in Stand-By mode. 3. - Page 23 17. MENU : Menu display button. 18. ASPECT : Select screen aspect ratio. 19. PICTURE : changes picture mode as follows: 20. RECALL : The present modes (TV, Video, Component, PC) and 21. TEXT : see page 49. 22. MGDI : Using this button, you can see MGDI DEMO screen. Inserting Batteries into the Remote Control Unit To load the batteries, turn the remote control handset over and open the battery compartment.
-
Page 24: Method To Use Basic Menu
Method To Use Basic Menu - The basic menu appears on the screen if you press the “MENU” button of the remote control. - There are 5 items Picture, Screen, Sound, Function, and Install in the basic menu. - Each item has sub-items under it. If the desired item is selected, the relevant sub-items are displayed upward. 1. -
Page 25: To Watch Tv
On/Off, Number, Mute, Recall, Buttons with same name in the main body performs the same function. Press the “ON/OFF” button of the front side of the set or Remote con- troller. • The buttons of the remote control and the main body operate only when AC power is turned on. - Page 26 To Watch TV - If AV1 terminal on TV set is connected with external device, TV will be ON at AV1 mode. Otherwise, TV will be ON at RF mode. 1. Turning on the TV. • Plug AC Cord into a power outlet. •...
-
Page 27: Setting Up Tv Stations
- All stations that can be received are stored by this method. It is recommended that you use Auto tuning during in- stallation of this set. 1. Press the “MENU” button to select the Install menu. • Move the selection bar to the Install menu with “ / ” but- tons. -
Page 28: Manual Tuning
Setting Up TV 1. Press the Number buttons(0~9) or the to select a program number you want. 2. Locate the selection bar on the Manual tuning at the Install menu. • Press the “MENU” button to select the Install menu. •... - Page 29 The Setup menu shows you information as follows: - Picture information: PAL, SECAM, and SECAM-L - Sound information: L, DK3, DK2, DK1, I, BG - Station name, Program number and Real channel number. 1. Searching for channels in the Setup menu •...
- Page 30 Setting Up TV The Edit menu shows you information as follows: - Program position assignment: Program number and Station name, Real channel number. - Skip information: Red (Skip Yes), White (Skip No). - One can move on this edit mode directly using „EDIT” button on the remote control. 1.
-
Page 31: Dvb Menu
- Press the “MENU” button to display the main menu. then, select DVB MENU. You may see the DVB MENU OSD. Whenever you need more information during any DVB MENU directory, press info button “ more detailed information on the screen. And in some menus, you can use blue, yellow, red, green button. -
Page 32: Channel List
DVB Menu Channel List 1. BBC ONE 2. BBC TWO 3. ITV 1 4. Channel 4 5. five 6..select ◄ ► Function - Select and Delete function is to choose or delete the channel. - Select Edit Name function to change the channel name as you want. Press key to change characters. - Page 33 - This menu allows you to make your favourite channel list. You can make 5 favourite lists. - Move highlight on any list (1~5). Then press Select key to make your own list. When you press Select key, the mark (①②③④⑤) will show up on the channel name’s left side. For example, If there is ③...
- Page 34 DVB Menu Electronic Programme Guide BBC ONE 1. BBC ONE 2. BBC TWO 3. ITV 1 4. CHANNEL 4 5. FIVE 6. ITV2 8. 8 10. ITV3 13. More 4 ◄ ► ▼ ▲ Navigate List Schedule EPG - You can check program schedule here. Navigate channel by pressing up/down/right/left button. - Press Yellow/cyan buttons to change date.
- Page 35 Select each sub-menu Configuration This has 4 sub-menus. - Subtitle on/off (also can control this with remote control SUB TITLE but- ton. - Change Banner time : off - 1 sec - 2sec - 4sec - 8sec - You can choose your favourite list (see page 32) on Favourite Mode. If it is selected as off, all channel are shown.
-
Page 36: Common Interface
DVB Menu - Manual Search is the function to scan for an individual channel. Enter the Channel number to be scanned. - Signal Quality consists of 5 levels : none - poor - medium - good - very good Manual Search Channel Number Signal Quality: Very Good Signal Level:... -
Page 37: Selection Of Av And Multimedia Input Signal
When watching video, Camcorder, DVD, Cable TV with AV - See page 12 for connection method of Camcorder and Video. - When pressing ” ” button on the TV set, screen changes as follows: TV => AV1 => AV2 => AV3/S-Video => PC => HDMI => Component => TV 1. - Page 38 Selection of AV and Multimedia Input Signal When connecting PC, STB, DVD with Multimedia 1. Pressing the “MULTIMEDIA” button on the remote controller. • The screen changes as follows: PC => HDMI => Component => PC HDMI & PC mode 1.
-
Page 39: Screen Adjustment
When setting up various screen modes - The user may select various screens designed for a good picture without adjusting the brightness, contrast or col- our individually. 1. Pressing the “PICTURE” button. • The screen changes as follows: Normal I => Normal II => Favourite => Normal I •... - Page 40 Screen Adjustment When adjusting the screen to taste - You can enjoy various screens by adjusting Brightness, Contrast, Colour, Sharpness, etc to the user’s taste. 1. Select “PICTURE” by pressing the “MENU” button. • The menu screen appears as follows. 2.
- Page 41 Adjustment of Screen Size in TV and AV mode - Randomly change the size of the screen. - The AUTO screen operates when power is first turned on. 1. Pressing the “ASPECT” button on the remote controller. • The screen changes as follows: Auto =>...
- Page 42 Screen Adjustment Adjustment of the screen in the PC mode 1. Adjustment of the H-Position • Move to H-Position in the Screen menu. • Press the ” / ” buttons to adjust the horizontal position of displayed image. 2. Adjustment of the V-Position •...
-
Page 43: Sound Adjustment
When adjusting sound to taste - The user can enjoy various sounds by adjusting Sound Mode, Equalizer, Balance and Amp Speaker. 1. To adjust the audio equalizer • Move to Equalizer in the Sound menu. • Select and use the relevant frequency by pressing the ” / ” button. - Page 44 Sound Adjustment 1. Mono Sound Selection • During Stereo sound reception if the stereo is weak, you can switch to MONO by pressing the “ character will change to Red. In Mono reception the depth of sound is improved. • To switch back to stereo, press the “ MONO Note : •...
-
Page 45: Selection Of Language
When you first turn on the TV set, the window of language selection is displayed automatically. 1. Press the “MENU” button and select “Function” . 2. Select “Language” by pressing “ / ” button. 3. Select your desired language by pressing the “ / ” button. -
Page 46: Adjustment Of Time
Adjustment of Time - You must previously adjust current time in order to reserve Automatic On/Off. 1. Manual clock setting • Move to Timer in the Function menu. • To go to the Clock, press the “ ” button. • Place the cursor to Hour / Minute with “ / ” buttons. •... - Page 47 3. Set up of Off Time • Move to Timer in the Function menu. • To go to the Off Timer, press the “ / ” button. • Select Off Timer to “Yes” • Set the Off time in the same way as above for the Clock. The set will turn off at the selected time.
-
Page 48: Other Functions
Other Functions 1. Setup of Child Lock • Move to Child Lock in the Function menu. • Select Child Lock to “On” using the “ ” button Note : • This prevents the use of the TV set without the remote control. -
Page 49: Teletext
Teletext Teletext SWITCHING TELETEXT ON/OFF Press the “TEXT” button ( The index page or the page viewed last will appear. Press the “TEXT” button again to return to the TV mode. NOTE: Teletext works only in TV/AV mode. COLOUR BUTTONS IN TOP/FLOF TELETEXT A red, green, yellow and blue field is shown at the bottom of the screen. -
Page 50: Troubleshooting
Troubleshooting Please check the following list prior to calling Daewoo Electronics Service Centre for assistance. Symptom Neither picture nor sound Picture is OK but no sound Sound is OK, but no colour. The picture has image. Picture has “snow noise” . - Page 51 Symptom “UNSUPPORTED” appears on the screen “NO SIGNAL” appears on the screen. Image is not clear. Image is not centered. • AFTER SALES SERVICE Do not hesitate to contact your retailer or service agent if a change in the perfomance of your product indicates that a faulty condition may be present.
-
Page 52: Standard Of Product
Standard of Product Screen Size 26”(66Cm) 32”(81Cm) 37”(94Cm) Aspect Ratio 16:9 Resolution 1366 x 768 (WXGA) Pixel Pitch 0.4215 mm 0.51075 mm 0.600 mm Contrast Ratio 4000:1 5000:1 5000:1 Dimension (W x H x D) 676 x 530 x 230 mm 806 x 626.5 x 250 mm 940 x 720 x 328.5 mm Power Consumption... - Page 53 DMP39...
