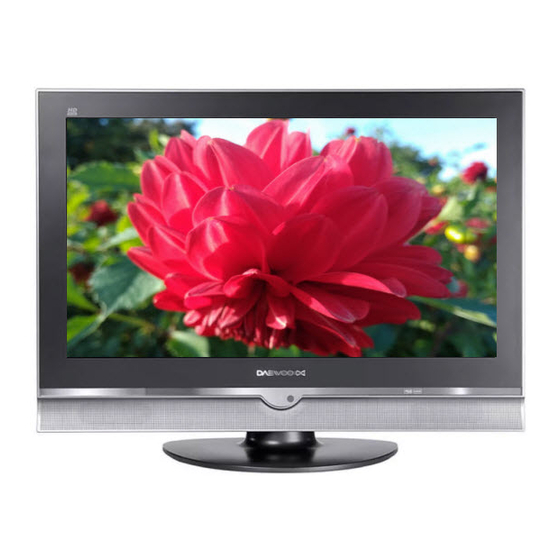

LCD TELEVISION
INSTRUCTION MANUAL
DLP-26C2
DLP-26C3
DLP-32C1
DLP-32C2
DLP-32C3
DLP-32C5
DLP-32C6
DLP-32C7
DLP-37C3
DLP-37C7
All manuals and user guides at all-guides.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLP-26C2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo DLP-26C2

Summary of Contents for Daewoo DLP-26C2

  • Page 1 All manuals and user guides at all-guides.com LCD TELEVISION INSTRUCTION MANUAL DLP-26C2 DLP-26C3 DLP-32C1 DLP-32C2 DLP-32C3 DLP-32C5 DLP-32C6 DLP-32C7 DLP-37C3 DLP-37C7...
  • Page 2 All manuals and user guides at all-guides.com Caution CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulat- ed “dangerous voltage”...
  • Page 3 All manuals and user guides at all-guides.com Important Safeguards Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television. 1. Read, Retain and Follow All Instructions Read all safety and operating instructions before operating the TV. Retain them safely for future reference.
  • Page 4 All manuals and user guides at all-guides.com Important Safeguards 12. Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
  • Page 5 All manuals and user guides at all-guides.com Warning This section must be read carefully and followed by the user prior to the operation of the product. The manual states important instructions for the user's own safety, and the proper operation of the product. Ignoring or disregarding the contents of this section and Warning improper operation of the product may result in the person's...
  • Page 6 All manuals and user guides at all-guides.com Warning This section must be read carefully and followed by the user prior to the operation of the product. The manual states important instructions for the user's own safety, and the proper operation of the product. Ignoring or disregarding the contents of this section and Caution improper operation of the product may result in the person's...

  • Page 7: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents Installation and Maintenance Antenna Connection Video Connection Camcorder & Video Game Connection DVD Player Connection STB Connection PC Connection Cable TV Broadcasting Connection Name of Each Part Basic Guide Parts of the Remote Controller Method To Use Basic Menu To Watch TV Setting Up TV Stations...
  • Page 8 All manuals and user guides at all-guides.com Supplied Accessories Make sure that the following accessories are provided with the product. AC cord Instruction manual Remote controller Batteries Cable holder (Except C2 Series) Cover Bottom -When you install wall mounting you set up cover bottom like upper picture.

  • Page 9: Antenna Connection

    All manuals and user guides at all-guides.com Antenna Connection Indoor Antenna Connection 1. Connect the feeder cable of the antenna to the combining adapter. WHEN THE IMAGE IS NOT CLEAR : Unclear screen image and bad reception may be a cause of wrong antenna connection.
  • Page 10 All manuals and user guides at all-guides.com Antenna Connection CTV Antenna Connection Such community TV Antenna installation may be found in most of co-op apartments. When a coaxial cable is used : Plug the coaxial cable to the antenna socket, and fix it firmly by turning it to the right.
  • Page 11 All manuals and user guides at all-guides.com Antenna Connection Outdoor Antenna Connection Outdoor Antenna connection-such as VHF or/and UHF-may be necessary for installation at private houses Single Antenna Connection VHF Antenna BACK OF THE TV SET UHF Antenna HDMI INPUT PC INPUT PC AUDIO S-VIDEO...

  • Page 12: Video Connection

    All manuals and user guides at all-guides.com Video Connection Connecting with an External Source You may connect an S-Video input to enjoy clearer and brighter picture images. You can make the connection with the AV3 input. BACK OF THE TV SET HDMI INPUT PC INPUT PC AUDIO S-VIDEO...

  • Page 13: Camcorder & Video Game Connection

    All manuals and user guides at all-guides.com Camcorder & Video Game Connection Watching the Camcorder Recording on TV 1. Prepare the S-video and RCA connector. 2. These connectors connect to S-video or AV 3 as shown in the picture below. 3.

  • Page 14: Dvd Player Connection

    All manuals and user guides at all-guides.com DVD Player connection When connecting with a component cable and Euro SCART cable BACK OF THE TV SET HDMI INPUT PC INPUT PC AUDIO S-VIDEO L - AUDIO - R COMPONENT Note : •...

  • Page 15: Stb Connection

    All manuals and user guides at all-guides.com STB(Set Top Box) Connection When connecting with a HDMI cable BACK OF THE TV SET HDMI INPUT PC INPUT PC AUDIO S-VIDEO L - AUDIO - R COMPONENT When connecting with a component cable BACK OF THE TV SET HDMI INPUT PC INPUT PC AUDIO...

  • Page 16: Pc Connection

    All manuals and user guides at all-guides.com PC Connection When connecting with PC(D-Sub) cable. 1. First adjust resolution of the PC. (Refer to table in page 17.) 2. Connect between PC and TV set using the D-sub and Audio cable as shown in the picture below. 3.
  • Page 17 All manuals and user guides at all-guides.com PC Connection PC CONNECTION NOTES: 1) The resolution of the TV set is best at 1360 x 768 (WXGA). 2) If there is a [Vertial Frequency] setting menu in the [Display] Menu of the PC, adjust the frequency to 60Hz. 3) If the PC resolution is too high, it may be hard to detect signals.

  • Page 18: Cable Tv Broadcasting Connection

    All manuals and user guides at all-guides.com Cable TV Broadcasting Connection External Input Connection Source Watching cable television is only possible after you have subscribed to the local broadcasting company and installed a cable receiver. You may make the connection to any of the Component input and SCART input AV1, AV2.

  • Page 19: Name Of Each Part

    All manuals and user guides at all-guides.com Name of Each Part Front / Side Panel Buttons on the TV set have the same functions as those of the remote controller. MENU Front Panel Side Panel (Right) Control Key Buttons. TV/VIDEO Button : Each time you press this button, the TV will cycle through: TV =>...
  • Page 20 All manuals and user guides at all-guides.com Name of Each Part Side and Rear Panel Side Panel HDMI INPUT PC INPUT PC AUDIO S-VIDEO L - AUDIO - R COMPONENT Rear Panel...

  • Page 21: Parts Of The Remote Controller

    All manuals and user guides at all-guides.com Parts of the Remote Controller This remote controller is universal; thus, it may be convertible for TV, Video, CTV, etc. (MUTE) : Press this button, and the sound goes off. Press again, and the sound returns. (POWER) : TV on/off button in Stand-By mode.
  • Page 22 All manuals and user guides at all-guides.com Parts of the remote controller 18. PREV PR : Previous PROGRAMME button in TV mode. 19. MENU : Menu display button. 20. ASPECT : Select screen aspect ratio. POWER MUTE Auto => 16:9 => 14:9 => 4:3 => Zoom1 => Zoom2 => Auto Note.

  • Page 23: Method To Use Basic Menu

    All manuals and user guides at all-guides.com Method To Use Basic Menu Basic Menu - The basic menu appears on the screen if you press the “MENU” button of the remote control. - There are 5 items Picture, Screen, Sound, Function, and Install in the basic menu. - Each item has sub-items under it.

  • Page 24: To Watch Tv

    All manuals and user guides at all-guides.com To Watch TV On/Off, Number, Mute, Recall, VVOLW VPRW - Buttons with same name in the main body performs the same function. Press the " " button of the front side of the set or Remote controller .
  • Page 25 All manuals and user guides at all-guides.com To Watch TV - If AV1 terminal on TV set is connected with external device, TV will be ON at AV1 mode. Otherwise, TV will be ON at RF mode. - The very first time that you turn on the TV, the LANGUAGE menu will appear on the screen. Its purpose is to enable you to select the language that will be used for all the OSD (On Screen Display) menus.

  • Page 26: Setting Up Tv Stations

    All manuals and user guides at all-guides.com Setting Up TV Stations Auto Tuning - All stations that can be received are stored by this method. It is recommended that you use Auto tuning during installation of this set. 1. Press the “MENU” button to select the Install menu. PICTURE •...
  • Page 27 All manuals and user guides at all-guides.com Setting Up TV Stations Manual tuning 1. Press the Number buttons(0~9) or the “VPRW” button to select a program number you want. 2. Locate the selection bar on the Manual tuning at the INSTALL Install menu.
  • Page 28 All manuals and user guides at all-guides.com Setting Up TV Stations Setup The Setup menu shows you information as follows: - Picture information: PAL, SECAM, and SECAM-L - Sound information: L, DK3, DK2, DK1, I, BG - Station name, Program number and Real channel number. 1.
  • Page 29 All manuals and user guides at all-guides.com Setting Up TV Stations Edit The Edit menu shows you information as follows: - Program position assignment: Program number and Station name, Real channel number. - Skip information: Red (Skip Yes), White (Skip No) - One can move on this edit mode directly using "EDIT"...

  • Page 30: Selection Of Av And Multimedia Input Signal

    All manuals and user guides at all-guides.com Selection of AV and Multimedia Input Signal When watching video, Camcorder, DVD, Cable TV with AV - See page 12 for connection method of Camcorder and Video. - When pressing ” ” button on the TV set, screen changes as follows: TV =>...
  • Page 31 All manuals and user guides at all-guides.com Selection of AV and Multimedia Input Signal When connecting PC, STB, DVD with Multimedia 1. Pressing the "M.MEDIA" button on the remote controller. POWER MUTE • The screen changes as follows: PC => HDMI => Component => PC M.MEDIA TV/AV SLEEP...

  • Page 32: Screen Adjustment

    All manuals and user guides at all-guides.com Screen Adjustment When setting up various screen modes - The user may select various screens designed for a good picture without adjusting the brightness, contrast or colour individually. 1. Pressing the "NORMAL" button. PREV PR MENU ASPECT...
  • Page 33 All manuals and user guides at all-guides.com Screen Adjustment When adjusting the screen to taste - You can enjoy various screens by adjusting Brightness, Contrast, Colour, Sharpness, etc to the user’s taste. 1. Select "PICTURE" by pressing the "MENU" button. PICTURE •...
  • Page 34 All manuals and user guides at all-guides.com Screen Adjustment Adjustment of Screen Size in TV and AV mode - Randomly change the size of the screen. - The AUTO screen operates when power is first turned on. PREV PR MENU ASPECT RECALL NORMAL...
  • Page 35 All manuals and user guides at all-guides.com Screen Adjustment Adjustment of the screen in the PC mode 1. Adjustment of the H-Position SCREEN • Move to H-Position in the Screen menu. SCALE 16 : 9 H-POSITION V-POSITION • Press the ”C/B” buttons to adjust the horizontal PHASE CLOCK position of displayed image.

  • Page 36: Sound Adjustment

    All manuals and user guides at all-guides.com Sound Adjustment When selecting various sound modes SELECT 1. Sound mode selects what you want. • Press the "SOUND" button, then the sound status changes as followed : EDIT STILL SOUND LOCK Normal => Speech => Music => Favourite => Normal PREV PR MENU ASPECT...
  • Page 37 All manuals and user guides at all-guides.com Sound Adjustment When adjusting sound to taste - The user can enjoy various sounds by adjusting Sound Mode, Equalizer and Balance. 1. To adjust the audio equalizer SOUND • Move to Equalizers in the Sound menu. SOUND MODE NORMAL •...
  • Page 38 All manuals and user guides at all-guides.com Sound Adjustment Multi-Sound and Stereo 1. Mono Sound Selection • During Stereo sound reception if the stereo is weak, you can switch to MONO by pressing the button. Then the colour of S.EFFECT "MONO"...

  • Page 39: Selection Of Language

    All manuals and user guides at all-guides.com Selection of Language Selection of Language When you first turn on the TV set, the window of language selection is displayed automatically. 1. Press the “MENU” button and select "Function". FUNCTION LANGUAGE TIMER CHILD LOCK MGDI DEMO OSD HALFTONE...

  • Page 40: Adjustment Of Time

    All manuals and user guides at all-guides.com Adjustment of Time Adjustment of Time - You must previously adjust current time in order to reserve Automatic On/Off. 1. Manual clock setting FUNCTION • Move to Timer in the Function menu. CLOCK 12 : 00 AUTO CLOCK •...
  • Page 41 All manuals and user guides at all-guides.com Adjustment of Time 4. Set up of Off Time FUNCTION • Move to Timer in the Function menu. CLOCK 12 : 00 AUTO CLOCK • To go to the Off Timer, press the "V/W" button. AUTO CLOCK PR WAKE UP •...

  • Page 42: Other Functions

    All manuals and user guides at all-guides.com Other Functions 1. Child Lock FUNCTION • Move to Child Lock in the Function menu. LANGUAGE • Select Child Lock to "On" using the “B” button TIMER CHILD LOCK MGDI DEMO • You can also select this function using the "LOCK" OSD HALFTONE button on the remote controller.

  • Page 43: Teletext

    All manuals and user guides at all-guides.com Teletext Teletext SWITCHING TELETEXT ON/OFF Press the “TEXT” button ( The index page or the page viewed last will appear. Press the “TEXT” button again to return to the TV mode. NOTE: Teletext works only in TV/AV mode. COLOUR BUTTONS IN TOP/FLOF TELETEXT A red, green, yellow and blue field is shown at the bottom of the screen.

  • Page 44: Troubleshooting

    All manuals and user guides at all-guides.com Troubleshooting Symptoms and Solutions Please check the following list prior to calling Daewoo Electronics Service Centre for assistance Symptom Check items Neither picture - Check the contact of sockets is all right. nor sound - Check the TV main power is on.
  • Page 45 All manuals and user guides at all-guides.com Troubleshooting In PC mode Symptom Check items “UNSUPPORTED” - Check the resolution and frequency of your PC. Then, adjust them appears on the to optimum condition for LCD TV. screen - Refer to the table of PC mode input format UNSUPPORTED (If registered resolution and frequency on the table no listed then no picture will be displayed.)

  • Page 46: Standard Of Product

    All manuals and user guides at all-guides.com Standard of Product Screen Size 26"(66Cm) 32"(81Cm) 37”(94Cm) Aspect Ratio 16:9 1366 x 768 (WXGA) Resolution Pixel Pitch 0.4215 mm 0.51075 mm 0.600 mm Contrast Ratio 3000:1 676 x 530 x 230 mm 806 x 626.5 x 250 mm 940 x 720 x 328.5 mm Dimension(W x H x D)
  • Page 47 All manuals and user guides at all-guides.com 48586300E1-R0...
