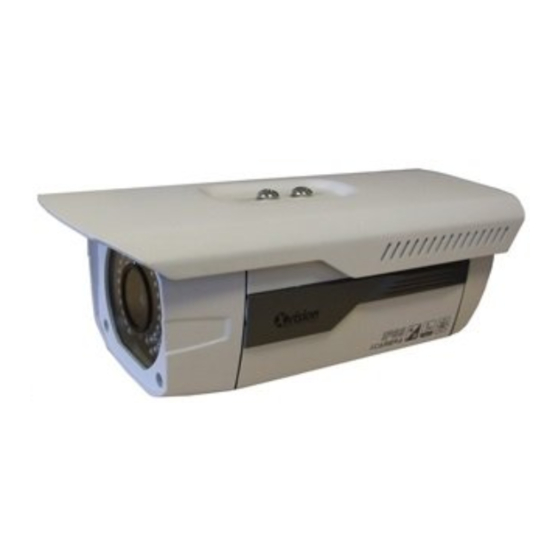

XP3000B
HD IR Waterproof Fixed IP Camera User's Manual
Version 3.5.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XP3000B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XVision XP3000B

Summary of Contents for XVision XP3000B

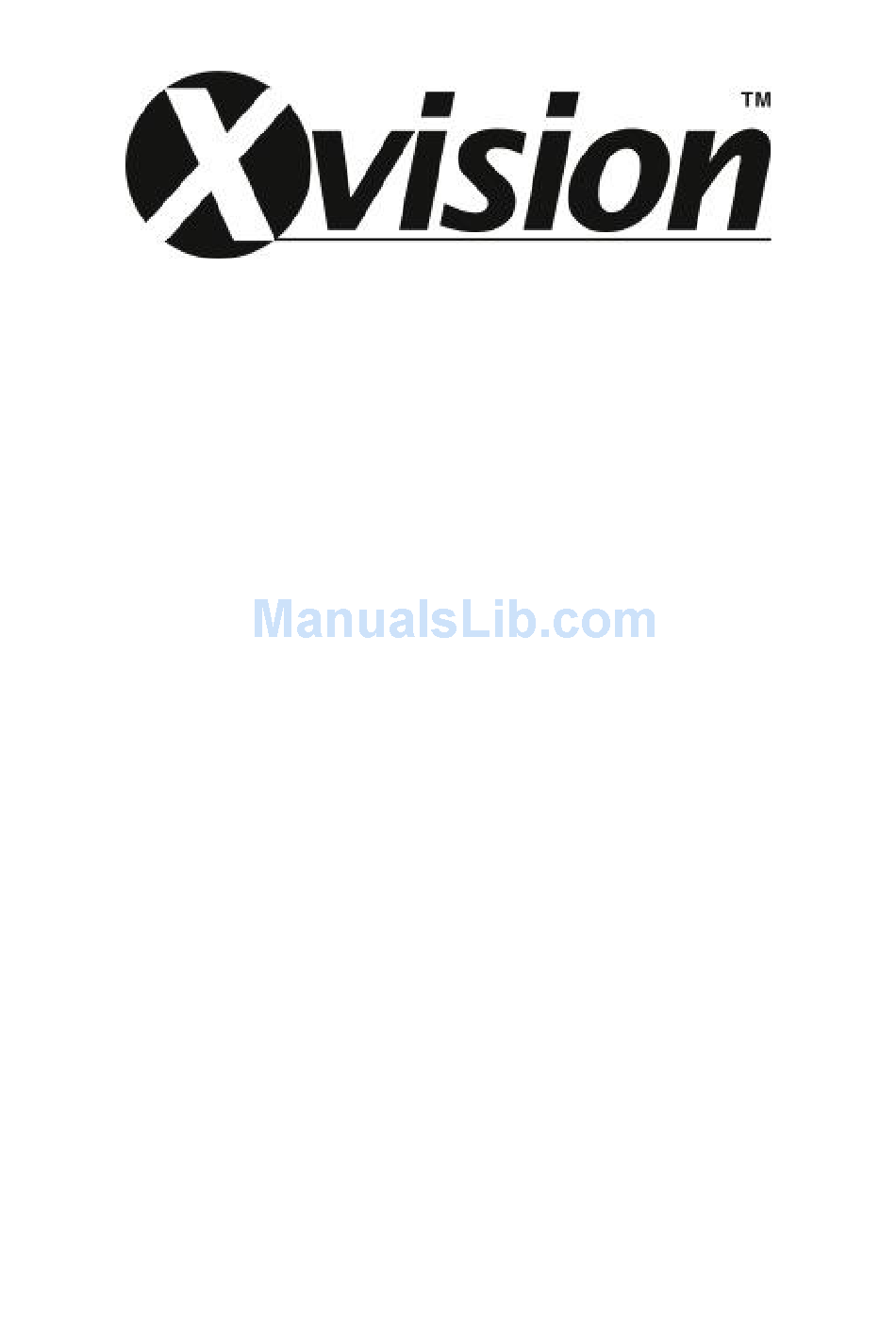

  • Page 1 XP3000B HD IR Waterproof Fixed IP Camera User’s Manual Version 3.5.0...
  • Page 2 Welcome Thank you for purchasing our IP camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!

  • Page 3: Important Safeguards And Warnings

    Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV ( Safety Extra Low Voltage) and the Limited power source is rated 12V DC or 24V AC in the IEC60950-1. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.
  • Page 4 Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera. 7. Accessories Be sure to use all the accessories recommended by manufacturer. Before installation, please open the package and check all the components are included. Contact your local retailer ASAP if something is broken in your package.

  • Page 5: Table Of Contents

    Table of Contents General Introduction ........................1 Overview ........................1 Features ......................... 1 Specifications ........................ 2 1.3.1 Performance......................2 1.3.2 Factory Default Setup ................... 4 Structure ............................ 11 Multiple-function Combination Cable ..............11 Framework and Dimension ..................12 Bidirectional talk ......................13 2.3.1 Device-end to PC-end ..................

  • Page 6: General Introduction

    It can be used alone or used in a network area. When it is used lonely, you can connect it to the network and then use a network client-end. Due to its multiple functions and various uses, the XP3000B is widely used in many environments such office, bank, road monitor and etc. 1.2 Features ...

  • Page 7: Specifications

    The enclosure conforms to the IP 66 protection. Has the waterproof function. 1.3 Specifications 1.3.1 Performance Please refer to the following sheet for IPC performance specification . Model XP3000B Series Parameter Main Processor TI Davinci high performance DSP Embedded LINUX...
  • Page 8 Information Lens 8~16mm @F1.6 Lens Interface C/CS. Lens is the default accessories 1-channel，LINE IN Audio Input 1-channel, 3.5mm JACK SPEAK OUT. Audio Output Bidirectional Reuse the first audio input channel Talk Input Audio Bit Rate 16kbps 16BIT Audio Compression G.711a/G.711u/PCM Standard 396 (18*22) detection zones；sensitivity level ranges from 1 to 6 (The level has the highest sensitivity)

  • Page 9: Factory Default Setup

    1.3.2 Factory Default Setup Please refer to the following sheet for factory default setup information. Default Setup Setup Item XP3000BSeries Brightness Contrast Saturation Gain Mode Auto Gain Limit Exposure Mode Auto Auto Iris Scene Mode Auto Day/night Mode Auto Mirror Flip Bit stream General...
  • Page 10 Default Setup Setup Item XP3000BSeries Bit Rate Type Recomme 192-1024Kb/S nded Bit Bit Rate 1024 I Frame Snapshot General Type Image 1080P（1920*1080） Snapshot Size Quality Interval Privacy Disable Mask Video Overlay Channel Enable Title Time Title Enable Snapshot C:\PictureDownload Path Path Record C:\RecordDownload...
  • Page 11 Default Setup Setup Item XP3000BSeries Enable ARP/Ping Enable set device IP address service Connectio TCP Port 37777 UDP Port 37778 Connection HTTP Port RTSP Port HTTPs Port Enable Disable PPPoE Username Password Server Disable，CN99 DDNS Type Server IP none Server Port DDNS Domain...
  • Page 12 Default Setup Setup Item XP3000BSeries Authentica tion (Encryptio n mode) Title IPC Message (Subject) Attachmen Enable Mail Receiver Send 0 second Interval Email Test Disable，interval=60 minutes Enable UPnP Disable UPnP SNMP v1 Disable SNMP v2 Disable SNMP Port Read public Communit SNMP Write...
  • Page 13 Default Setup Setup Item XP3000BSeries Enable Disable Anti-dither 5 seconds Sensitivity Record Enable Channel Record Motion 10 seconds Delay Detect Relay out Enable Alarm 10 seconds Delay Send Disable Email Snapshot Disable Enable Disable Record Enable Channel Record 10 seconds Delay Video Relay out...
  • Page 14 Default Setup Setup Item XP3000BSeries email Enable Disable Capacity Limit Capacity Relay out Enable Warning Relay out 10 seconds Delay Send Disable Email Enable Disable Relay out Enable Card Relay out 10 seconds Error Delay Send Disable email Enable Disable Record Enable Record...
  • Page 15 Default Setup Setup Item XP3000BSeries Record Main Stream Stream Device No Device factory SN Language English Local Host Video Standard Date Y-M-D Format Time Format Time Zone GMT+08:00 System Sync Time Disable Date DST Type Week time Start Time 00:00:00 of the first Sunday of the month End Time 00:00:00 of the second Monday of the month Disable...

  • Page 16: Structure

    2 Structure 2.1 Multiple-function Combination Cable You can refer to the following figure for multiple-function combination cable information. See Figure Figure 2-1 Please refer to the following sheet for detailed information. Port Name Function Connection Note Video output Output analog video signal. It can connect to the VIDEO OUT port TV monitor to view the video.

  • Page 17: Framework And Dimension

    Port Name Function Connection Note Power port. Input DC 12V or AC 24V. Please note：  Connect the DC5.5 round port to 2-pin Power input converter cable （Provided） when you are POWER port using AC 24V series product.  The DC5.5 round port to 2-pin converter cable is not included in the accessories bag if you are using DC 12V series product.

  • Page 18: Bidirectional Talk

    Figure 2-3 2.3 Bidirectional talk 2.3.1 Device-end to PC-end Device Connection Please connect the speaker or the pickup to the first audio input port in the device rear panel. Then connect the earphone or the sound box to the audio output port in t he PC. Login the Web and then enable the corresponding channel real-time monitor.
  • Page 19 4) Set the WEB alarm output. The alarm output 01 is for the alarm output port of the device. It is th e No.2 pin of the I/O cable. Figure 2-4 Please refer to the following figure for alarm input information. See Figure 2-5. Alarm input: When the input signal is idle or grounded, the device can collect the different statuses of the alarm input port.

  • Page 20: Device Installation

    3 Device Installation Please follow the steps listed below to install the device. Please refer to Figure 3-1 for reference.  Please line up the installation holes of the bottom of the device to the installation holes in the front part of the bracket. Then insert the screws to the holes to fasten the device on the bracket.

  • Page 21: Quick Configuration Tool

    4 Quick Configuration Tool 4.1 Overview Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segme nt. 4.2 Operation Double click the “ConfigTools.exe”icon, you can see an interface is shown as in Figure 4-1.
  • Page 22 Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure 4-3. Figure 4-3 If you want to modify the device IP address without logging in the device web interface, you can go to the configuration tool main interface to set.
  • Page 23 After you logged in, the configuration tool main interface is shown as below. See Figure 4-5. Figure 4-5...

  • Page 24: Web Operation

    5 Web Operation This series XP3000B product support the Web access and management via PC. Web includes several modules: monitor channel preview, system configuration, alarm and etc. 5.1 Network Connection Please follow the steps listed below for network connection. ...
  • Page 25 Figure 5-2 If it is your first time to login in, system pops up warning information to ask you whether install control webrec.cab or not after you logged in for one minute. Please click OK button, system can automatically install the control. When system is upgrading, it can overwrite the previous Web too. If you can’t download the ActiveX file, please check whether you have installed the plug-in to disable the control download.
  • Page 26 Figure 5-3 After you logged in, you can see the main window. See Figure...
  • Page 27 Figure 5-4 Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction.

  • Page 28: Faq

    6 FAQ I can not boot up Please click RESET button for at least five seconds to restore the device. factory default setup. card write Do not set the SD card as the storage media to storage the times schedule record file. It may damage the SD card duration. I can not use the When disk information is shown as hibernation or capacity is 0, disk as the storage...

  • Page 29: Appendix Toxic Or Hazardous Materials Or Elements

    Appendix Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Circuit Board ○ ○ ○ ○ ○ ○ Component Device ○ ○ ○ ○ ○ ○ Construction Material ○ ○ ○ ○ ○...
