XVision XIR501 User Manual

Specification
Model: XIR501
Picture Type: Day/Night (B/W &Colour)
Image Sensor: Sony 1/3" Super HAD CCD
DSP: Xvision IXC1DN
Resolution: 480 TVL
Lens Viewing Angle: 78°
Infra Red Nightvision: 15 metres
Minimum Illumination: 0.1 Lux
Audio: No
Operating Voltage: 12V DC 750mA
Suggested Power Supply: 12V DC 1250mA Regulated
Mounting: Ceiling
Weatherproofing: No
Dimensions (ØxH): 133x84mm
TECHNICAL SUPPORT:
For Technical Support for any Xvision product please contact your local
distributor.
LIMITED WARRANTY:
This product is supplied with a 2 Year warranty. The Warranty excludes
products that have been misused, (including accidental damage) and
damage caused by normal wear and tear. In the unlikely event that you
encounter a problem with this product, it should be returned to the
place of purchase.
Manufactured exclusively for:
Xvision (Europe) Group,
Head Office: London, U.K.
Email: info@x-vision.co.uk
Web: www.x-vision.co.uk
CCTV
XIR501
Model:

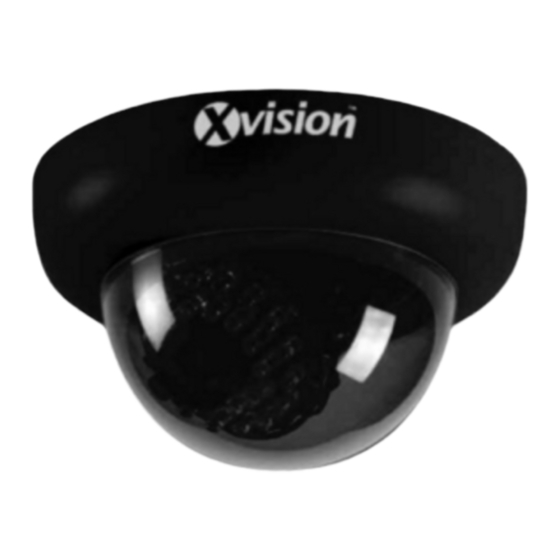

Colour Dome Camera
with 15m Nightvision
Before you begin
•
Please unpack the box carefully and identify that all the parts are present.
The camera is suitable for indoor use only (unless used with an optional external housing).
Please bear in mind the following points when choosing a mounting position.
•
The camera must be positioned so that it will not point directly into the sun (sunrise and
sunset) or any bright light, as this may cause damage to the camera.
•
Avoid viewing areas where half the area is in bright sunlight and the other half is dark,
such as in the shadow of a building. All types of cameras have difficulty in 'seeing' with
such a large lux level variation.
•
Do not cut the camera cables, this will void the warranty.
•
Make sure you use only the recommended power supply. Damage caused to the camera by
incorrect voltage or wiring is not covered by the warranty.
Model:
XIR501
Colour Dome Camera
with 15m Nightvision
CCTV
