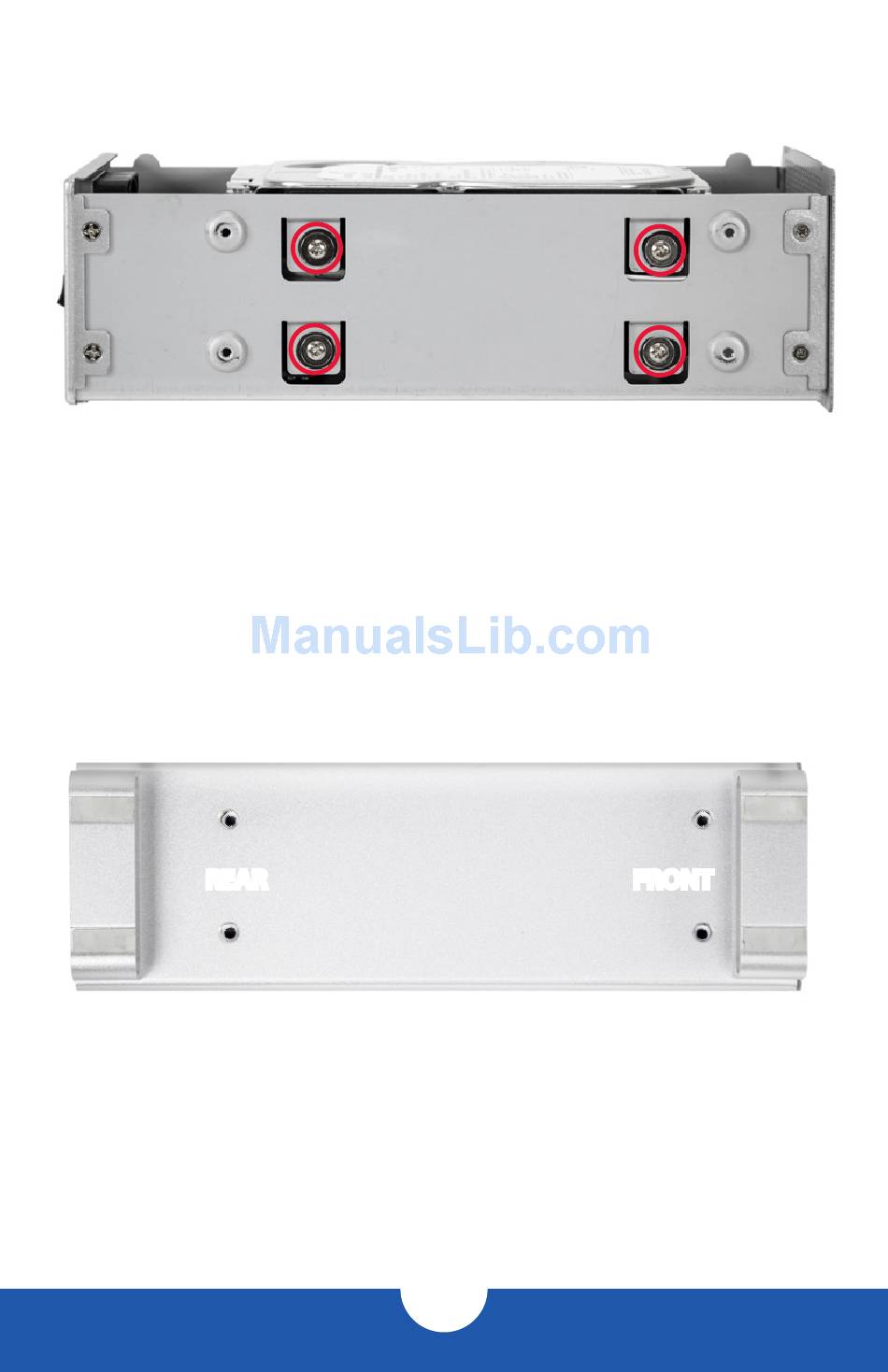

6. Using eight of the larger screws from the packet you removed in Step 1, fasten
the inner chassis to the hard drives. There are four screw holes on each side of the
inner chassis, as shown below.
7. Slide the inner chassis back into the outer enclosure. Note that while the inner
chassis can slide into both sides of the outer enclosure, there is only one correct
way that will allow the screw holes to line up correctly. To determine the correct
orientation relative to the outer enclosure, turn the outer enclosure on its side and
look at the bottom. The screw holes at the front of the outer enclosure are close to
the silicone feet, while the screw holes at the rear of the outer enclosure are farther
away from the silicone feet.
REAR
OWC MERCURY ELITE PRO DUAL
7
FRONT
DEVICE SETUP
