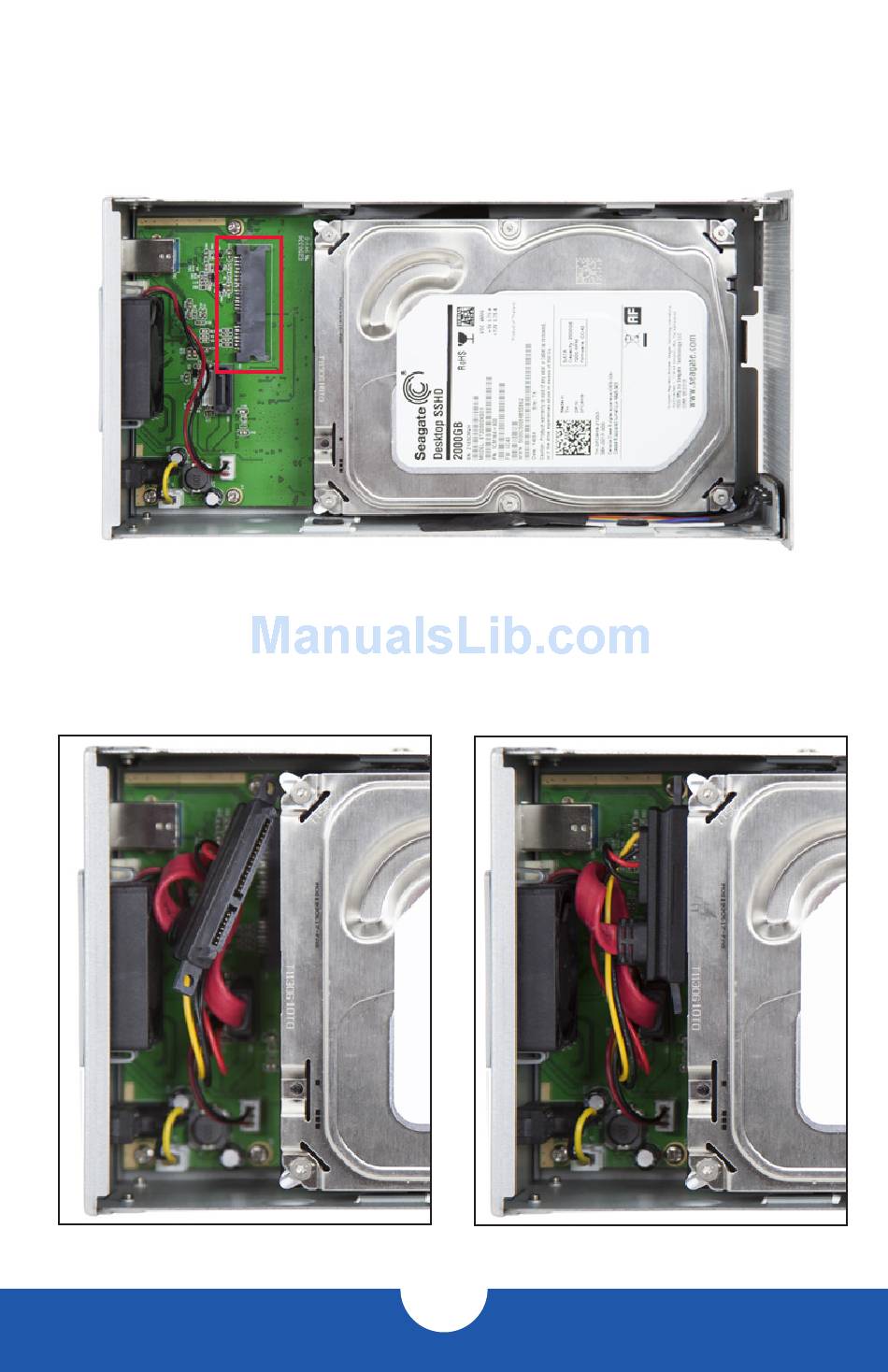

4. Install the first hard drive (Drive 1), as shown below. Slide the SATA connector on
the hard drive into the black SATA connector (shown in red). Make sure the drive
is firmly seated on the black SATA connector before proceeding. NOTE: the red
SATA cable used to connect the second hard drive has been removed in order
to provide a better image.
5. Install the second hard drive (Drive 2), as shown below. Insert the SATA connector
from the red cable into the SATA connector on the hard drive. Make sure the SATA
connectors are firmly seated. NOTE: Make sure that the flat red cable is twisted as
shown (below-right) in order to avoid interfering with the exhaust fan.
OWC MERCURY ELITE PRO DUAL
Do not remove any cables from the Elite Pro Dual.
