Specification; What Is The Turbocharger?; Advantages Of A Turbocharger - SSANGYONG MUSSO Owner's Manual

INTRODUCTION

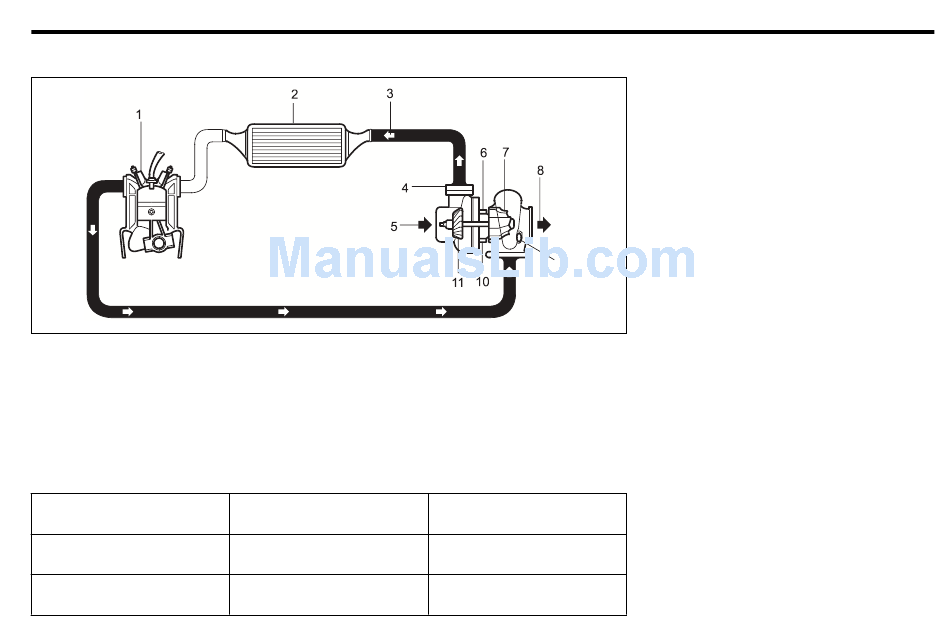

1. Cylinder
2. Intercooler
3. Compressed air flow
4. Compressor
5. Air inlet
6. Turbocharger oil inlet

Specification

Model
Max. torque (kg.m/rpm)
Max. output (ps/rpm)
7. Turbine wheel
8. Exhaust gas outlet
9. Bypass valve
10. Turbocharger oil outlet
11. Compressor wheel
601TD
21.5/2400
101/4000

What is the turbocharger?

Turbochargers are based on gas turbine
engine technology, but operate under con-
siderably greater pressure.
The turbocharger consists of two turbo el-
ements, a turbine and a compressor, both
of which are driven from the main center
shaft. The turbine rotates between 50,000-
100,000 spins per minute and uses the en-
ergy of the exhaust gas to drive the com-
pressor. The compressor, in turn, draws in
fresh air which it supplies to the cylinders
in compressed from.
As more fuel is drawn into the engine, out-
put performance is boosted between 15-
30% in comparison to a non-turbocharged
engine.

Advantages of a turbocharger

Turbocharger helps the engine operate more
smoothly and with greater efficiency.
• Increase specific power
• Compensate for power loss at altitude
602TD
• Reduce emissions and noise
25.5/2400
120/4000
TURBO CHARGER SYSTEM 5–3
