7–32 SERVICE AND MAINTENANCE

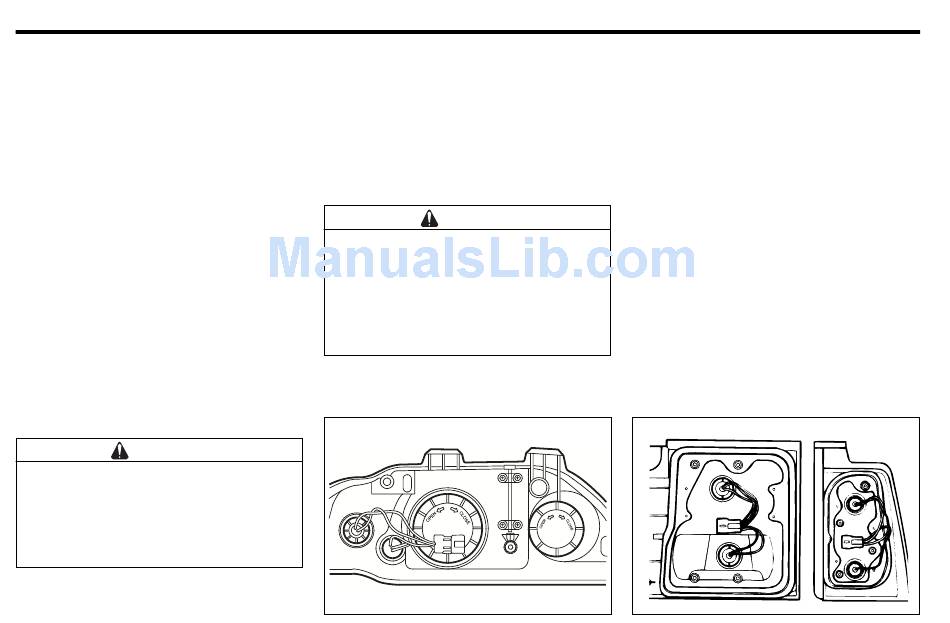

HEAD LAMP HIGH AND LOW BEAM
AND TURN SIGNAL LAMP
1. Open the engine hood and engage the
support.
2. Rotate the plastic cap counterclockwise
and remove.
3. Unscrew the 3 mounting bolts and dis-
connect the wiring harness connector
from the rear of the turn signal lamp.
4. Disconnect the wiring harness connec-
tor from the rear of the headlamp and
remove the protective cover.
5. Release the bulb holder, then remove the
light bulb.
6. Replace the bulb with a new one.
Turn signal lamp
7. If necessary, replace the turn signal lamp
bulb with a new one.
CAUTION
Have all maintenance work carried
out by Ssangyong
Ssangyong Authorized Service Op-
eration in adjusting the head lamp
aiming.
8. Install is the reverse order of removal.
When installing new bulb, make sure that
bulb holder engages correctly in re-
cesses of the housing.
9. Rotate the plastic cap clockwise until it
firmly engages.
Greasy fingers will cause stains, re-
sulting in a dull light.
• Do not touch halogen bulbs with
bare hands.
• Clean with a clean non fluffy cloth
using alcohol or white spirits.
Dealer or
CAUTION
TAIL, BRAKE AND REAR TURN
SIGNAL LAMP
1. Open the tailgate and remove the pro-
tective lamp cover.
2. Unscrew the nuts.
- Brake/Position lamp : 8EA.
- Reverse/Turn signal lamp : 4EA.
3. Rotate the bulb holder counterclockwise
and remove the bulb holder from the
lamp housing.
4. Depress the bulb and rotate it counter-
clockwise to remove it from the bulb
holder.
5. Replace the bulb with a new one.
6. Install is the reverse order of removal.
