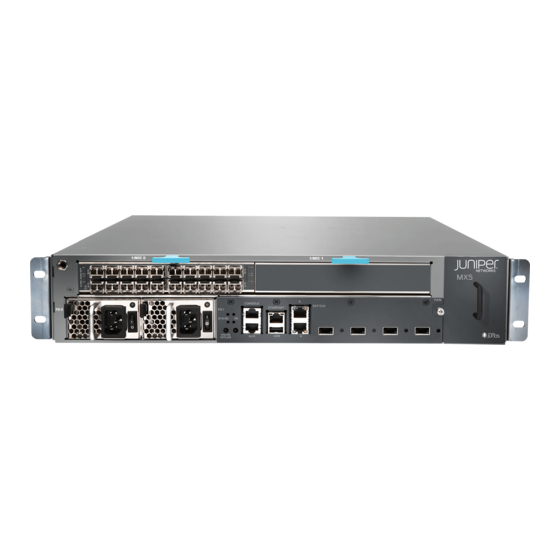

Juniper MX5 Quick Start Manual

Hide thumbs Also See for MX5:
Table of Contents

Advertisement

Quick Links

MX5, MX10, MX40, and MX80
3D Universal Edge Router
Quick Start
January 2015
Part Number: 530-062012
Revision 01
Contents
Copyright © 2015, Juniper Networks, Inc.
This document describes how to install the Juniper Networks
MX80 3D Universal Edge Router.
MX5, MX10, MX40, and MX80 Quick Start Description . . . . . . . . . . . . . . . . . . . . . . 3
MX5, MX10, MX40, and MX80 Router Rack Requirements . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
or MX80 Router, If Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Step 2: Install the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Step 3: Connect the Grounding Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Step 4: Connect External Devices and Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Out-of-Band Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connect the MX5, MX10, MX40, or MX80 Router to a Management Console
or Auxiliary Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Step 5: Connect Power Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connect Power to an AC Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connect Power to a DC Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Step 6: Perform Initial Software Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Enter Configuration Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Configure User Accounts and Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Configure System Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
®
MX5, MX10, MX40, and
1

Advertisement

Table of Contents
loading

Related Manuals for Juniper MX5

Summary of Contents for Juniper MX5

  • Page 1: Table Of Contents

    Contents MX5, MX10, MX40, and MX80 Quick Start Description ..... . 3 Step 1: Prepare the Site for MX5, MX10, MX40, or MX80 Installation ... 4 MX5, MX10, MX40, and MX80 Router Rack Requirements .
  • Page 2 MX5, MX10, MX40, and MX80 3D Universal Edge Router Quick Start Commit the Configuration ......... 17 Safety Warnings .

  • Page 3: Mx5, Mx10, Mx40, And Mx80 Quick Start Description

    A fixed version of the MX80 router (model number: MX80-48T) has 48 fixed 10/100/1000Base-T RJ45 ports in place of the MIC slots. For a list of MICs supported on the MX5, MX10, MX40, and modular MX80 routers, see MICs Supported by MX Series Routers in the MX Series Interface Module Reference.

  • Page 4: Step 1: Prepare The Site For Mx5, Mx10, Mx40, Or Mx80 Installation

    MX5, MX10, MX40, and MX80 3D Universal Edge Router Quick Start Step 1: Prepare the Site for MX5, MX10, MX40, or MX80 Installation MX5, MX10, MX40, and MX80 Router Rack Requirements on page 4 Tools Required to Prepare the MX5, MX10, MX40, and MX80 Router for...

  • Page 5: Tools Required To Prepare The Mx5, Mx10, Mx40, And Mx80 Router For Installation

    Eight screws for securing the mounting brackets to the chassis, supplied with the router Phillips (+) screwdriver, number 2 Move the Mounting Brackets for Center-Mounting the MX5, MX10, MX40, or MX80 Router, If Needed Two removable mounting brackets are attached to the mounting holes closest to the...
  • Page 6 MX5, MX10, MX40, and MX80 3D Universal Edge Router Quick Start Figure 2: Front-Mount the Brackets on the MX5, MX10, MX40, or MX80 Router Figure 3: Center-Mount the Brackets on the MX5, MX10, MX40, or MX80 Router Copyright © 2015, Juniper Networks, Inc.

  • Page 7: Step 2: Install The Router

    Step 2: Install the Router Step 2: Install the Router Tools Required to Install the MX5, MX10, MX40, or MX80 Router on page 7 Install the MX5, MX10, MX40, or MX80 Chassis in the Rack on page 7 Install the MX5, MX10, MX40, or MX80 Cable Management Bracket on page 8...

  • Page 8: Install The Mx5, Mx10, Mx40, Or Mx80 Cable Management Bracket

    MX5, MX10, MX40, and MX80 3D Universal Edge Router Quick Start Figure 4: Install the Front-Mounted Router in the Rack Mounting rack Mounting bracket Figure 5: Install the Center-Mounted Router in the Rack Mounting rack Mounting bracket Install the MX5, MX10, MX40, or MX80 Cable Management Bracket Position the cable management bracket on the left side of the front of the chassis.
  • Page 9 Install the MX5, MX10, MX40, or MX80 Cable Management Bracket Figure 6: Install the Cable Management Bracket Copyright © 2015, Juniper Networks, Inc.

  • Page 10: Step 3: Connect The Grounding Cable

    You ground the router by connecting a grounding cable to earth ground and then attaching it to the chassis grounding points using two SAE 10-32 screws. You must provide the grounding cables (the cable lugs are supplied with the router). To ground the MX5, MX10, MX40, or MX80 router: Verify that a licensed electrician has attached the cable lug provided with the router to the grounding cable.

  • Page 11: Step 4: Connect External Devices And Cables

    ETHERNET Plug the other end of the cable into the network device. Connect the MX5, MX10, MX40, or MX80 Router to a Management Console or Auxiliary Device Turn off the power to the console or auxiliary device. Plug the RJ-45 end of the serial cable...
  • Page 12 MX5, MX10, MX40, and MX80 3D Universal Edge Router Quick Start WARNING: Do not look directly into a fiber-optic transceiver or into the ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cable connected to a transceiver emit laser light that can damage your eyes.

  • Page 13: Step 5: Connect Power Cables

    Connect Power to an AC Router Locate power cords that have a plug appropriate for your geographical location. For more information, see the MX5, MX10, MX40, and MX80 3D Universal Edge Router Hardware Guide. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the ESD points on the chassis.

  • Page 14: Connect Power To A Dc Router

    MX5, MX10, MX40, and MX80 3D Universal Edge Router Quick Start Connect Power to a DC Router Table 1: MX5, MX10, MX40, and MX80 DC Power System Input Voltage Item Specification DC input voltage Operating range: –40 to –72 VDC Switch off the dedicated customer site circuit breakers.
  • Page 15 LED lights green steadily. If the status LED indicates that the power supply is not functioning normally, repeat the installation and cabling procedures. Figure 10: Connecting DC Power to the Router Copyright © 2015, Juniper Networks, Inc.

  • Page 16: Step 6: Perform Initial Software Configuration

    MX5, MX10, MX40, and MX80 3D Universal Edge Router Quick Start Step 6: Perform Initial Software Configuration This procedure connects the router to the network but does not enable it to forward traffic. For complete information about configuring the router to forward traffic, including examples, see the Junos OS configuration guides.

  • Page 17: Configure System Attributes

    Commit the Configuration (Optional) Display the configuration to verify that it is correct. [edit] root@# show system { host-name host-name; domain-name domain-name; backup-router address; root-authentication { authentication-method (password | public-key); name-server { address; Copyright © 2015, Juniper Networks, Inc.
  • Page 18 MX5, MX10, MX40, and MX80 3D Universal Edge Router Quick Start interfaces { fxp0 { unit 0 { family inet { address address/prefix-length; Commit the configuration to activate it on the router. [edit] root@# commit (Optional) Configure additional properties by adding the necessary configuration statements.

  • Page 19: Safety Warnings

    Only trained and qualified personnel should install or replace the router. Perform only the procedures described in this quick start or the MX5, MX10, MX40, and MX80 3D Universal Edge Router Hardware Guide. Other services should be performed by authorized service personnel only.

  • Page 20: Compliance Statements For Nebs

    MX5, MX10, MX40, and MX80 3D Universal Edge Router Quick Start MX80 3D Universal Edge Router Hardware Guide. To prevent injury, keep your back straight and lift with your legs, not your back. Do not attempt to lift the chassis by the power supply handles.

  • Page 21: Compliance Statements For Emc Requirements

    The battery return connection is to be treated as an isolated DC return (i.e. DC-I), as defined in GR-1089-CORE. For Juniper systems with AC power supplies, an external surge protective device (SPD) must be used at the AC power source.

  • Page 22: United States

    MX5, MX10, MX40, and MX80 3D Universal Edge Router Quick Start United States The hardware equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 23: Junos Os Documentation And Release Notes

    7 days a week, 365 days a year. Self-Help Online Tools and Resources For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features: Find CSC offerings: http://www.juniper.net/customers/support/...

  • Page 24: Opening A Case With Jtac

    Juniper Networks, Junos, Steel-Belted Radius, NetScreen, and ScreenOS are registered trademarks of Juniper Networks, Inc. in the United States and other countries. The Juniper Networks Logo, the Junos logo, and JunosE are trademarks of Juniper Networks, Inc. All other trademarks, service marks, registered trademarks, or registered service marks are the property of their respective owners.
