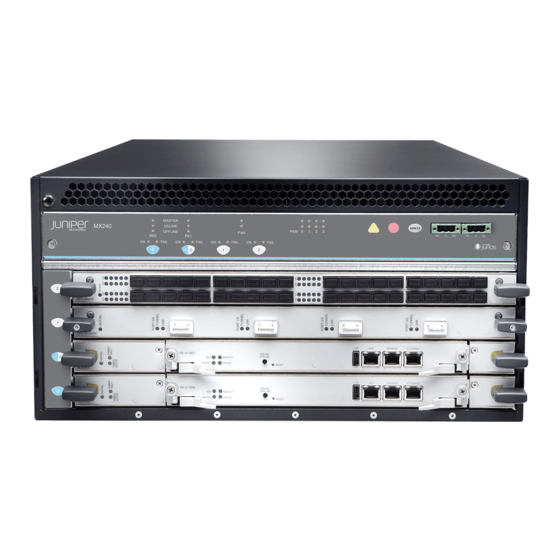

Upgrading MX240, MX480, and MX960
3D Universal Edge Router Fan Trays and
Power Supplies
December 2010
Part Number: 530-036423
Revision 02
Copyright © 2010, Juniper Networks, Inc.
All manuals and user guides at all-guides.com
This document describes the necessary steps to be taken to upgrade any Juniper Networks
MX Series 3D Universal Edge Router chassis to higher capacity cooling and higher capacity
power. Step-by-step descriptions are given for replacement of the various parts in the
chassis. All of these upgrades can be performed while the system is operational, but it
is important to follow the complete process through.
NOTE: Combinations of regular-capacity and high-capacity supplies and fan
trays are not supported outside of the upgrade window.
CAUTION: The router cannot be powered from AC and DC power supplies
simultaneously. The first type of power supply detected by the router when
initially powered on determines the type of power supply allowed by the
router. All installed power supplies of the other type are disabled by the router.
If you install a power supply of the other type while the router is operating,
the router disables the power supply and generates an alarm.
NOTE: Before upgrading, the MX Series router must be running Junos OS
Release 10.0 R1 or later to support high-capacity fan trays. Junos OS Release
10.0 R2 is required to support the MX240 and MX480 AC and DC high capacity
power supplies, and the MX960 AC high- capacity power supplies. Junos OS
Release 10.2 R1 is required to support the MX960 DC high-capacity power
supplies.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX240 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Juniper MX240

Summary of Contents for Juniper MX240

  • Page 1 Release 10.0 R1 or later to support high-capacity fan trays. Junos OS Release 10.0 R2 is required to support the MX240 and MX480 AC and DC high capacity power supplies, and the MX960 AC high- capacity power supplies. Junos OS Release 10.2 R1 is required to support the MX960 DC high-capacity power...

  • Page 2: Table Of Contents

    Replacing the MX240 Fan Tray ........
  • Page 3 All manuals and user guides at all-guides.com Installing the MX240 and MX480 DC High-Capacity Power Supplies ..19 Upgrading the MX960 AC Power Supplies Overview ..... . . 22 Removing the MX960 AC Power Supplies .

  • Page 4: Fan Tray Upgrade Overview

    All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays Fan Tray Upgrade Overview The MX Series high-capacity fan trays satisfy cooling requirements for high-density DPCs and MPCs, and must be upgraded for proper cooling (see Figure 1 on page 4, Figure 2 on page 4, and Figure 3 on page 5).

  • Page 5: Replacing The Mx240 Fan Tray

    All manuals and user guides at all-guides.com Replacing the MX240 Fan Tray Figure 3: MX240 High-Capacity Fan Tray Replacing the MX240 Fan Tray To remove the fan tray (see Figure 4 on page 6 ): Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to an approved site ESD grounding point.
  • Page 6 All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays Figure 4: Removing the Fan Tray To install the fan tray (see Figure 5 on page 6): Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to one of the ESD points on the chassis.

  • Page 7: Replacing The Mx480 Fan Tray

    The fans might still be spinning. NOTE: To prevent overheating, install the replacement fan tray immediately after removing the existing fan tray. Figure 6: Removing the Fan Tray Copyright © 2010, Juniper Networks, Inc.

  • Page 8: Replacing The Mx960 Fan Trays

    All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays To install the fan tray (see Figure 7 on page 8): Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to one of the ESD points on the chassis.
  • Page 9 ESD points on the chassis. Grasp the fan tray on each side, and insert it straight into the chassis. Note the correct orientation by the "this side up" label on the top surface of the fan tray. Copyright © 2010, Juniper Networks, Inc.
  • Page 10 All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays Tighten the captive screws on each side of the fan tray faceplate to secure it in the chassis. Lower the standard cable manager back into position, if necessary.

  • Page 11: Upgrading The Mx960 Air Filter Tray

    CAUTION: Always keep the air filter in place while the router is operating, except during replacement. Because the fans are very powerful, they could pull small bits of wire or other materials into the router through the unfiltered air intake. This could damage the router components. Copyright © 2010, Juniper Networks, Inc.

  • Page 12: Installing The Mx960 High-Capacity Tray And Filter

    All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays To remove the air filter (see Figure 11 on page 12): Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to one of the ESD points on the chassis.

  • Page 13: Fan Tray Power Requirements

    The minimum number of power supplies must be present in the router at all times. Table 2: Minimum Required Number of Power Supplies Router Model Configuration Minimum Required Number of Power Supplies MX240 AC – high line Copyright © 2010, Juniper Networks, Inc.

  • Page 14: Upgrading The Mx240 And Mx480 Ac Power Supplies

    All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays Table 2: Minimum Required Number of Power Supplies (continued) MX240 AC – low line MX240 1 (only 1 zone) MX480 AC –...

  • Page 15: Installing The Mx240 And Mx480 Ac High-Capacity Power Supplies

    All manuals and user guides at all-guides.com Installing the MX240 and MX480 AC High-Capacity Power Supplies To remove an AC power supply (see Figure 19 on page 24): Switch off the dedicated customer site circuit breaker for the power supply, and remove the power cord from the AC power source.

  • Page 16: Upgrading The Mx240 And Mx480 Dc Power Supplies

    All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays Figure 13: Installing an AC Power Supply Upgrading the MX240 and MX480 DC Power Supplies Removing the MX240 and MX480 DC Power Supplies NOTE: The minimum number of power supplies must be present in the router at all times.

  • Page 17: Switch

    All manuals and user guides at all-guides.com Setting the MX240 and MX480 DC High-Capacity Power Supply Input Mode Switch To remove a DC power supply (see Figure 14 on page 17): Switch off the dedicated customer site circuit breaker for the power supply being removed.
  • Page 18 All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays To set the input mode switch: Using a screwdriver, loosen the captive screw holding the metal cover over the input mode switch.

  • Page 19: Installing The Mx240 And Mx480 Dc High-Capacity Power Supplies

    All manuals and user guides at all-guides.com Installing the MX240 and MX480 DC High-Capacity Power Supplies Installing the MX240 and MX480 DC High-Capacity Power Supplies NOTE: During the upgrade process, you can simultaneously run existing and high-capacity power supplies. However, it is recommended to upgrade all power supplies to high-capacity power supplies.
  • Page 20 All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays CAUTION: The maximum torque rating of the terminal studs on the DC power supply is 36 lb-in. (4.0 Nm). The terminal studs may be damaged if excessive torque is applied.
  • Page 21 All manuals and user guides at all-guides.com Installing the MX240 and MX480 DC High-Capacity Power Supplies Observe the status LEDs on the power supply faceplate. If the power supply is correctly installed and functioning normally, the PWR OK BRKR ON...

  • Page 22: Upgrading The Mx960 Ac Power Supplies Overview

    All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays Figure 17: Connecting DC Power to the Router Upgrading the MX960 AC Power Supplies Overview To upgrade the MX960 AC power supplies: Remove one existing old power supply from either slot 0 or slot 3 (either far left or far right), and replace it with a high-capacity power supply.

  • Page 23: Removing The Mx960 Ac Power Supplies

    Let go of the locking pin in the release lever. Ensure that the pin is seated inside the corresponding hole in the chassis. Pull the power supply straight out of the chassis. Copyright © 2010, Juniper Networks, Inc.
  • Page 24 All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays WARNING: Do not touch the power connector on the top of the power supply. It can contain dangerous voltages.

  • Page 25: Installing The Mx960 Ac High-Capacity Power Supplies

    LEDs on the power supply faceplate. If the power supply is correctly installed and functioning normally, the LEDs light steadily, AC OK DC OK and the LED is not lit. PS FAIL Copyright © 2010, Juniper Networks, Inc.
  • Page 26 All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays Figure 20: Installing an AC Power Supply Air exhaust Air exhaust AC Power supplies Power supply ejectors ESD point...

  • Page 27: Upgrading The Mx960 Dc Power Supplies Overview

    Move the input mode switch to position 0 for one feed or position 1 for two feeds. NOTE: For a fully redundant configuration in two-feed mode, 8 feeds are required. For a non-redundant configuration, 4 feeds are required. Copyright © 2010, Juniper Networks, Inc.

  • Page 28: Removing An Mx960 Dc Power Supply

    All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays Figure 22: MX960 DC High-Capacity Power Supply Front View CAUTION: Do not use a pencil, because fragments can break off and cause damage to the power supply.
  • Page 29 Let go of the locking pin in the release lever. Ensure that the pin is seated inside the corresponding hole in the chassis. Pull the power supply straight out of the chassis. WARNING: Do not touch the power connector on the top of the power supply. It can contain dangerous voltages. Copyright © 2010, Juniper Networks, Inc.

  • Page 30: Installing The Mx960 Dc High-Capacity Power Supplies

    All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays Figure 23: Removing a DC Power Supply from the MX960 Router Installing the MX960 DC High-Capacity Power Supplies WARNING: Before performing DC power procedures, ensure that power is removed from the DC circuit.
  • Page 31 36 lb-in. (4.0 Nm). The terminal studs may be damaged if excessive torque is applied. Use only a torque-controlled driver or socket wrench to tighten nuts on the DC power supply terminal studs. Copyright © 2010, Juniper Networks, Inc.
  • Page 32 All manuals and user guides at all-guides.com Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays CAUTION: You must ensure that power connections maintain the proper polarity. The power source cables might be labeled to indicate (–)

  • Page 33: Junos Documentation And Release Notes

    JUNOS Release Notes. ® To obtain the most current version of all Juniper Networks technical documentation, see the product documentation page on the Juniper Networks website at http://www.juniper.net/techpubs/ Requesting Technical Support Technical product support is available through the Juniper Networks Technical Assistance Center (JTAC).

  • Page 34: Self-Help Online Tools And Resources

    Juniper Networks, Junos, Steel-Belted Radius, NetScreen, and ScreenOS are registered trademarks of Juniper Networks, Inc. in the United States and other countries. The Juniper Networks Logo, the Junos logo, and JunosE are trademarks of Juniper Networks, Inc. All other trademarks, service marks, registered trademarks, or registered service marks are the property of their respective owners.
  • Page 35 Products made or sold by Juniper Networks or components thereof might be covered by one or more of the following patents that are owned by or licensed to Juniper Networks: U.S. Patent Nos. 5,473,599, 5,905,725, 5,909,440, 6,192,051, 6,333,650, 6,359,479, 6,406,312, 6,429,706, 6,459,579, 6,493,347, 6,538,518, 6,538,899, 6,552,918, 6,567,902, 6,578,186, and 6,590,785.
