- Page 1 MANUAL ENGLISH CS-620 Ordercode: D6583 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 CS-620 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Installation ................................... 5 Troubleshooting ................................. 5 Product Specification ............................... 6 Dimensions ..................................6 Ordercode: D6583...

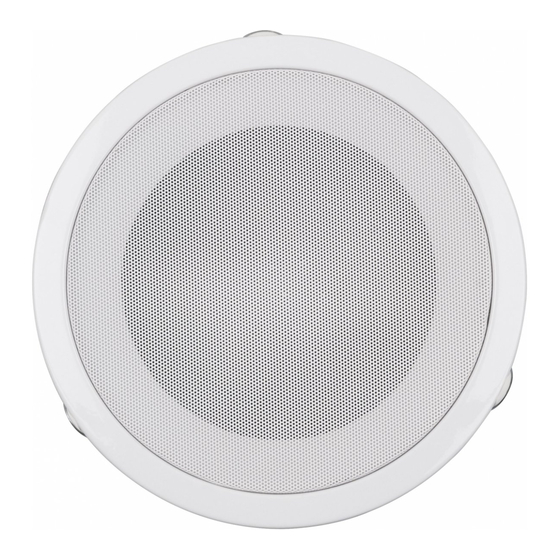

- Page 3 Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Audio CS-620 20W 6" ceiling speaker • Template for ceiling mounting •...
- Page 4 • Clean only with dry cloth. • When making the hole in your ceiling to mount the CS-620, make sure there is sufficient clearance • behind the ceiling (no obstructions like A/C channels, power lines etc). Take care of your speaker wires, they should be free of damage. Damaged speaker wires might •...
- Page 5 CS-620 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
- Page 6 CS-620 Installation 01) Drill a hole in the ceiling, using the template from the box (ø 225 mm). Fig. 01 02) Connect the power supply to the speaker. Connect the common cable to the COM connector. Connect the main feed cable to one of the following 3 connectors: 5/10/20W.
- Page 7 CS-620 Sound Warping If the sound coming out of your ceiling speakers is loud enough, but seems to be warped or distorted, your treble or bass levels may need to be adjusted. If there are not many pieces of furniture in the room and the floor has no carpet or rug, then you will most likely have to set your treble to minus.
- Page 8 ©2015 DAP Audio...
