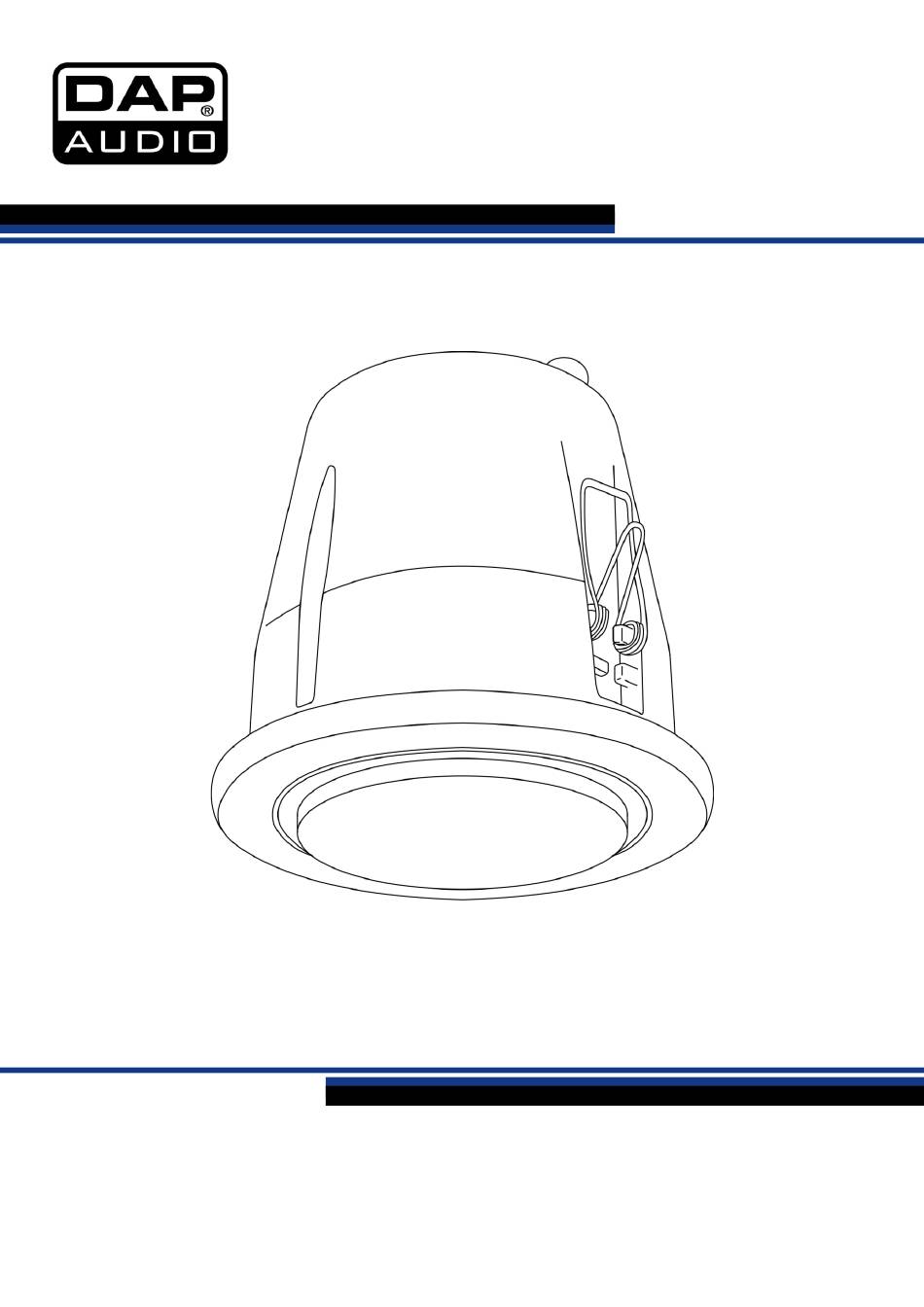

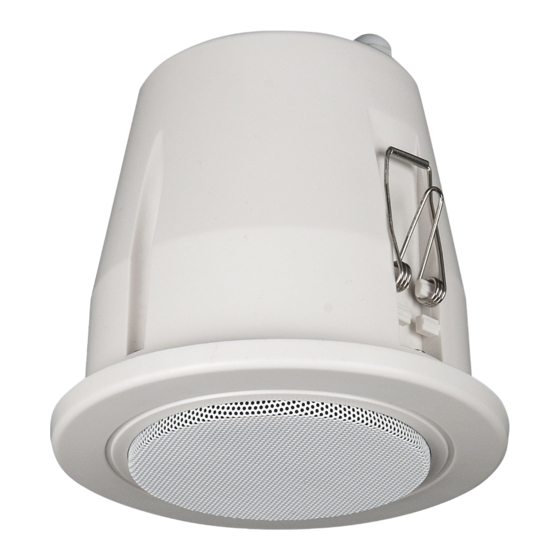

- Page 1 MANUAL ENGLISH WCS-46 Ordercode: D6577 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 WCS-46 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Installation ................................... 5 Troubleshooting ................................. 5 Product Specification ............................... 6 Ordercode: D6577...
- Page 3 Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Audio WCS-46 4” waterproof ceiling speaker • User manual •...
- Page 4 • Clean only with dry cloth. • When making the hole in your ceiling to mount the WCS-46, make sure there is sufficient clearance • behind the ceiling (no obstructions like A/C channels, power lines etc). Take care of your speaker wires, they should be free of damage. Damaged speaker wires might •...
- Page 5 WCS-46 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
- Page 6 WCS-46 Installation 01) Drill a hole in the ceiling, big enough to fit the speaker (Ø 125 mm). 02) Connect the black cable to the common cable. 03) Connect one of the 2 colored cables to the main feed cable: white cable = 6W, green cable = 3W.
- Page 7 WCS-46 Product Specification Power taps: 3/6W Line voltage: 100V Frequency response: 150-18 kHz Sensitivity: 91 dB Housing: Color: White IP rating: IP55 Dimensions: 140 x 140 x 145 mm (LxWxH) Weight: 0,9 kg Design and product specifications are subject to change without prior notice.
- Page 8 ©2015 DAP Audio...
