Summary of Contents for DAPAudio NRG-15S

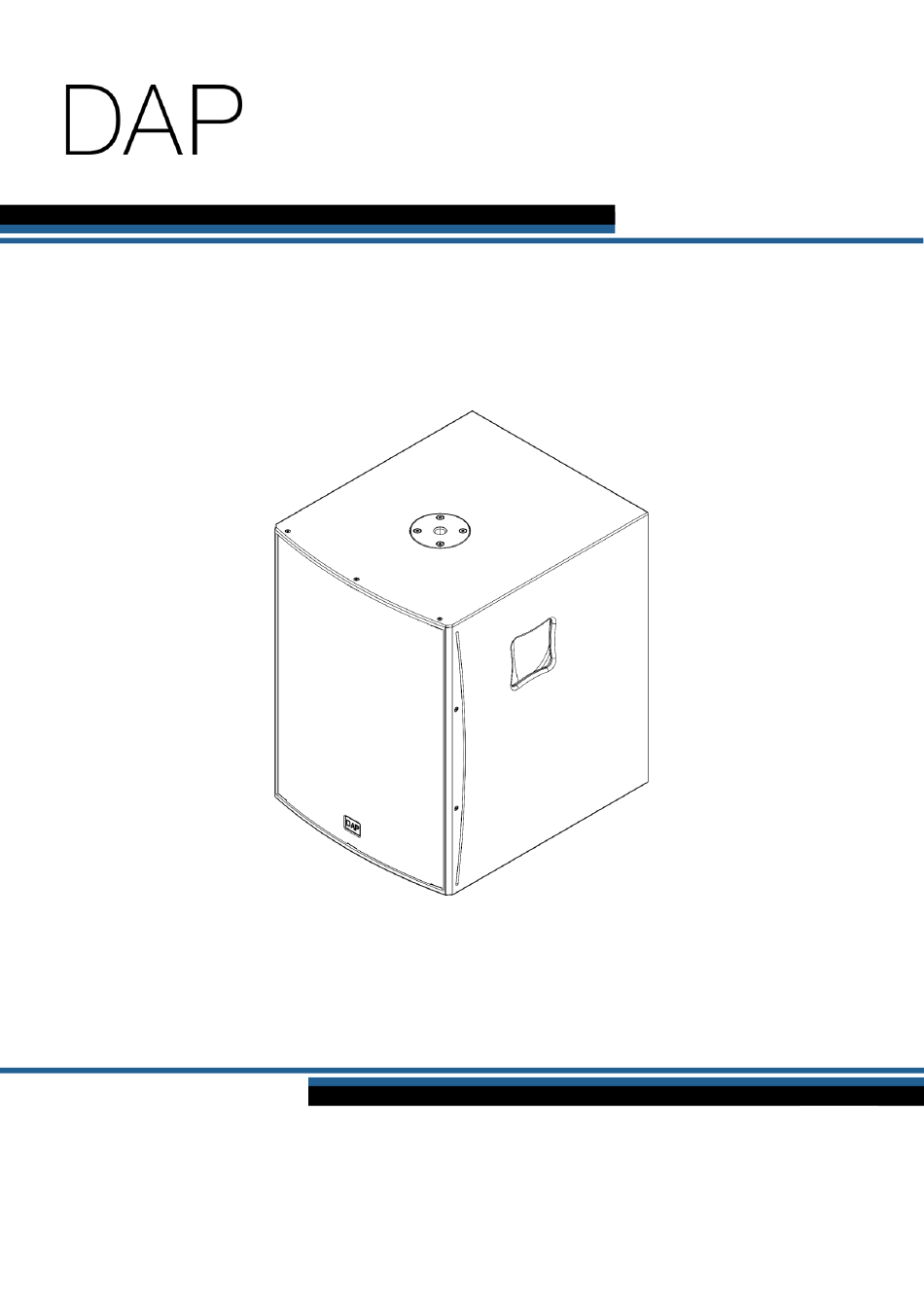

- Page 1 USER MANUAL ENGLISH NRG-15S Product code: D3628 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 NRG-15S Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
NRG-15S Table of contents Introduction ..............................3 Before Using the Product ..........................3 Intended Use ............................... 3 Text Conventions ..............................3 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety................................5 Warnings and Safety Instructions ........................5 Requirements for the User .......................... -
Page 4: Introduction
After unpacking, examine the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● DAP NRG-15S ● User manual Fig. 01 Intended Use This device is designed to be used as a passive subwoofer. It is suitable only for indoor use. Any incorrect use may lead to hazardous situations and result in injuries and material damage. -
Page 5: Symbols And Signal Words
NRG-15S Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 6: Safety
NRG-15S Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... -
Page 7: Requirements For The User
NRG-15S Attention Before each use, examine the device visually for any defects. Make sure that: ● There are no deformations on the housing. ● The power cables are not damaged and do not show any material fatigue. Attention Do not expose the device to conditions that exceed the rated IP class conditions. -
Page 8: Description Of The Device

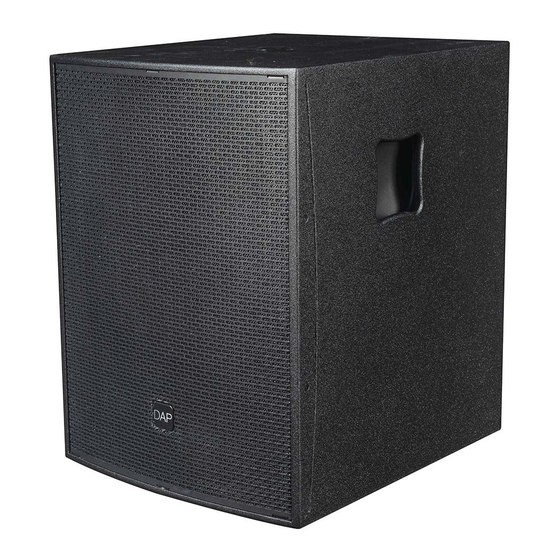

NRG-15S Description of the Device The DAP NRG-15S is a passive subwoofer rated at 1600 W peak (400 W continuous RMS). It uses a 15 ” woofer with a dual 3 " voice coil. Front View 01) Threaded mounting opening (M20) -
Page 9: Product Specifications
NRG-15S Product Specifications Model: DAP NRG-15S Physical: Dimensions: 430 x 587 x 520 mm (W x H x D) Weight: 22,5 kg Inputs: RMS input power: 400 W Peak input power: 1600 W Audio Specifications: Speaker system: Subwoofer Speaker sensitivity (1 W/1 m):... -
Page 10: Optional Accessories
NRG-15S Optional Accessories You can additionally purchase the following accessories: ● D8610 Distance Tube 35 mm ● D8611 Distance Tube M20 Dimensions Fig. 04 Product code: D3628... -
Page 11: Installation
NRG-15S Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. Installation must be carried out only by instructed persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. Make sure that the installation location is free of any obstructions and the speaker cables do not come in contact with other objects. -
Page 12: Setup And Operation
NRG-15S Setup and Operation Warnings and Precautions Attention This device must be used only for the purposes it is designed for. This device is designed to be used as a passive subwoofer. It is suitable only for indoor use. Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use. -
Page 13: Setup With Full-Range Passive Speakers
NRG-15S Setup with Full-Range Passive Speakers You can stack 2 passive subwoofers NRG-15S with 2 full-range passive speakers from the NRG range (NRG-8/NRG-10/NRG-12/NRG-15) and connect them to an amplifier and an audio mixer. To complete this setup: Connect the 1... -
Page 14: Setup With Multiple Passive Subwoofers
NRG-15S Setup with Multiple Passive Subwoofers You can stack 4 passive subwoofers NRG-15S with 2 full-range passive speakers from the NRG range (NRG-8/NRG-10/NRG-12/NRG-15) and connect them to an amplifier and an audio mixer. To complete this setup: Connect the 1... -
Page 15: Troubleshooting
NRG-15S Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 16: Maintenance
NRG-15S Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ● There are no deformations on the housing. -
Page 17: Deinstallation, Transportation And Storage
NRG-15S Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation of the device. ● Wear personal protective equipment in compliance with the national and site-specific regulations. - Page 18 NRG-15S Product code: D3628...
- Page 19 NRG-15S Product code: D3628...
- Page 20 ©2023 DAP...
