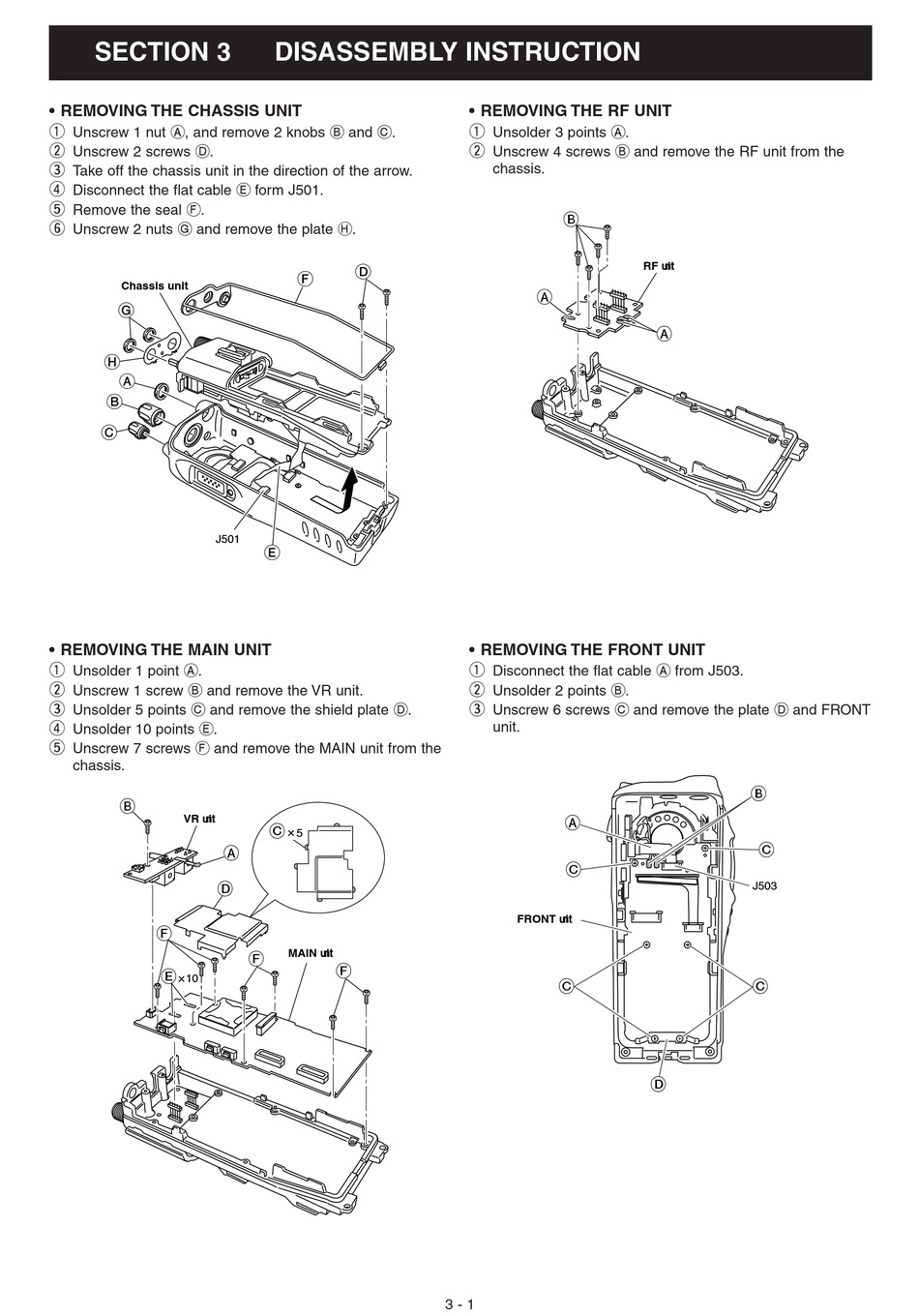

SECTION 3
• REMOVING THE CHASSIS UNIT
1
Unscrew 1 nut A, and remove 2 knobs B and C.
2
Unscrew 2 screws D.
3
Take off the chassis unit in the direction of the arrow.
4
Disconnect the flat cable E form J501.
5
Remove the seal F.
6
Unscrew 2 nuts G and remove the plate H.
Chassis unit
G
H
A
B
C
J501
• REMOVING THE MAIN UNIT
1
Unsolder 1 point A.
2
Unscrew 1 screw B and remove the VR unit.
3
Unsolder 5 points C and remove the shield plate D.
4
Unsolder 10 points E.
5
Unscrew 7 screws F and remove the MAIN unit from the
chassis.
B
VR u n it
D
F
E
10
DISASSEMBLY INSTRUCTION
D
F
E
C
5
A
MAIN u n it
F
F
• REMOVING THE RF UNIT
1
Unsolder 3 points A.
2
Unscrew 4 screws B and remove the RF unit from the
chassis.
B
A
• REMOVING THE FRONT UNIT
1
Disconnect the flat cable A from J503.
2
Unsolder 2 points B.
3
Unscrew 6 screws C and remove the plate D and FRONT
unit.
A
C
FRONT u n it
C
3 - 1
RF u n it
A
B
C
J503
C
D
