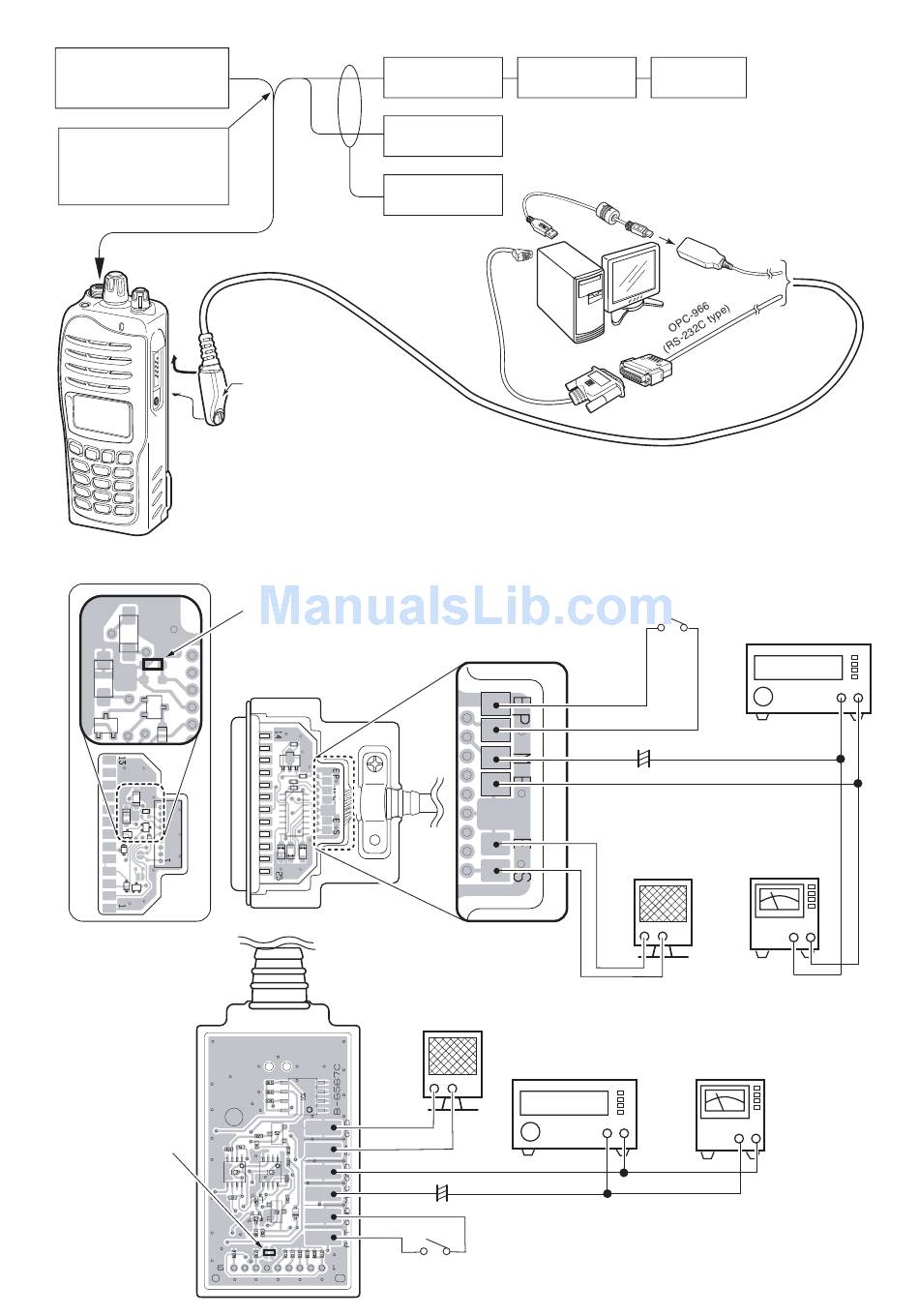

• CONNECT
Standard signal generator
0.1 µV to 32 mV
(–127 dBm to –17 dBm)
CAUTION!
DO NOT transmit while
the SSG is connected to
the antenna connector
to the antenna connector
• JIG CABLES
OPC-966U
(USB type Cloning cable)
Add a jumper wire here
CAUTION: Attach the [SP
MIC] jack snugly, but do
not overtighten.
An overtightened jack will
damage the connector
pins in the transceiver.
Add a jumper wire here
OPC-966
(RS-232C type Cloning cable)
GND
SP
GND
MIC
GND
PTT
Attenuator
20 dB or 30 dB deviation meter
RF power meter
0.1–10 W/50 Ω
Frequency
counter
RS-232C cable
(straight)
EXT. SPEAKER
(1 W/8 Ω)
AUDIO GENERATOR
(300–3000 Hz/1–500 mV)
− +
+
4.7 µF
PTT SWITCH
6 - 2
FM
Osciiloscope
OPC-966U (USB type)
JIG CABLE
PC
JIG CABLE
PTT SWITCH
(300–3000 Hz/1–500 mV)
PTTE
PTT
+
MIC
4.7 µF
MICE
EXT. SPEAKER
(1 W/8 Ω)
(10 mV to 10 V)
− +
GND
SP
AC MILLIVOLTMETER
(10 mV to 10 V)
+ −
+ −
AUDIO GENERATOR
+ −
AC
MILLIVOLT-
METER
+ −
