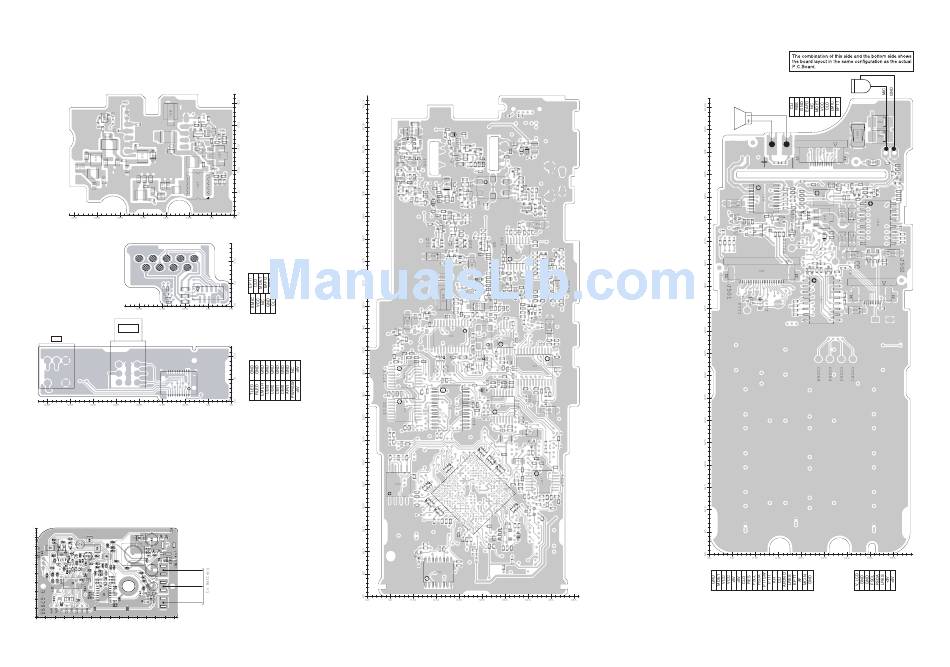

• RF UNIT (BOTTOM VIEW)
C632
C651 R621
C629 C650
Q603
C608 R619
L611
EP602
L603
C612
C633
C640
C639
C610
L609
L601
R615
C620
L608
L606
R603
• JACK UNIT (BOTTOM VIEW)
EP801
D804 J801
EP802
D801
EP803
D805
• VR UNIT
(BOTTOM VIEW)
ROTARY
SELECTOR
VOL
J701
S701
R704
• BC-160 (BOTTOM VIEW)
CHARGE
VSENS
GND
• MAIN UNIT (BOTTOM VIEW)
C643
R618 C642
R614
1 9
J801
to FRONT
unit J503
2 10
to MAIN unit J4
20 2
J701
19 1
IC19
-AFVI
-PWRSW
EMER-
+5V
-T1
S5V
-R5V
-DET
TLVA-
-LVIN
IC5
+5V
T5V
-AFOUT
-BUSY
-RMUT
-MMUT
+5V
-VCC
IC10
• FRONT UNIT (BOTTOM VIEW)
MC1
to JACK
unit J801
10 1
J503
CHASSIS SP1
1
W502
W501
J503
6
B6947A
J501 J502
20 1 8
to MAIN unit J3 to LCD
S-14223HH-P2-e
