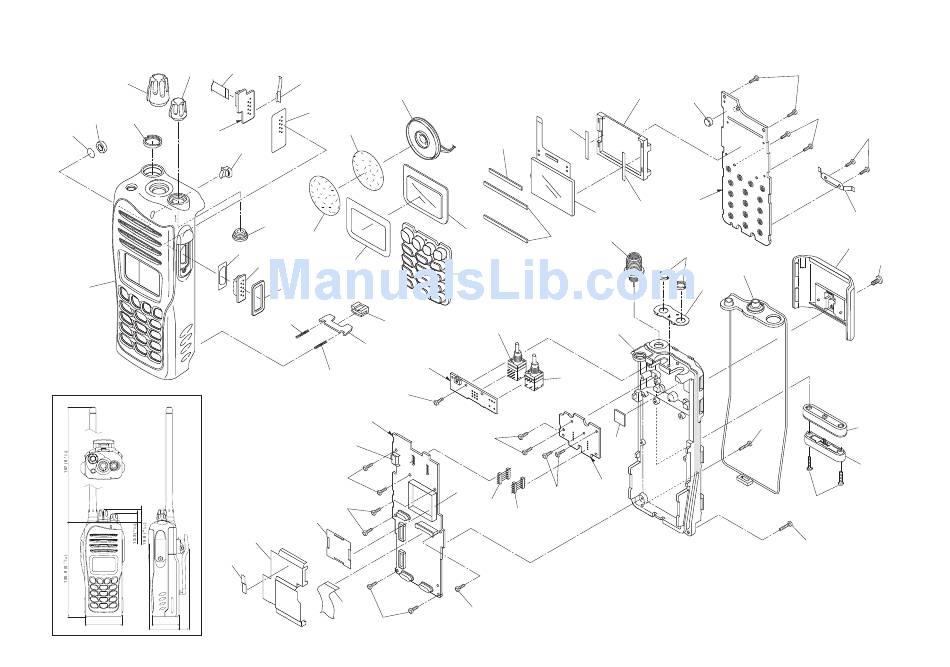

Icom IC-F3061T Servise Manual page 35

W1 (C)
MP10 (C)
MP8 (C)
MP32 (C) MP31 (C)
MP26 (C)
J A CK UNI T
MP7 (C)
MP23 (C)
MP2 (C)*
* MP2 (C), MP12 (C): The shape is depending on the version.
Unit: mm (inch)
MP42 (C)
53 (2 3 / ) 38.5 (1 17 / )
32 32
44 (1 23 / ) 13.8 ( 17 / )
32 32
MP802 (J)
SP1( C)
MP22 (C)
MP27 (C)
MP44 (C)
MP28 (C)
MP41 (C)
MP801(J)
MP24 (C)
MP20 (C) MP19 (C)
MP18 (C)
VR UNIT
MP20 (C)
MP34 (C)
MAIN UNIT
S3 (M)
MP34 (C)
MP34 (C)
MP2 (M)
MP16 (C)
W2 (C)
MP34 (C)
MP502 (F)
MP506 (F)
DS510 (F)
MP4 (C)
MP503 (F)
J1 (C)
MP12 (C)*
S701 (V)
MP1 (C)
R704 (V)
MP35 (C)
MP40 (C)
RF UNIT
MP1 (M)
MP35 (C)
J602 (RF)
J601 (RF)
MP34 (C)
MP33 (C)
MP501 (F)
MC501 (F)
F R ONT UNI T
MP502 (F)
MP30 (C)
MP14 (C)
MP29 (C)
MP39 (C)
MP38 (C)
MP39 (C)
Unit a d dr e viations (C) : CHASSIS P A R T S
8 - 2
MP33 (C)
MP33 (C)
MP15 (C)
MP3 (C)
MP36 (C)
MP17 (C)
J2 (C)
(M) : MAIN UNI T
(F) : F R ONT UNIT
(RF) : RF UNI T
(V) : VR UNI T
(J) : J A CK UNI T
