Removing and Replacing Components
DVD Drive

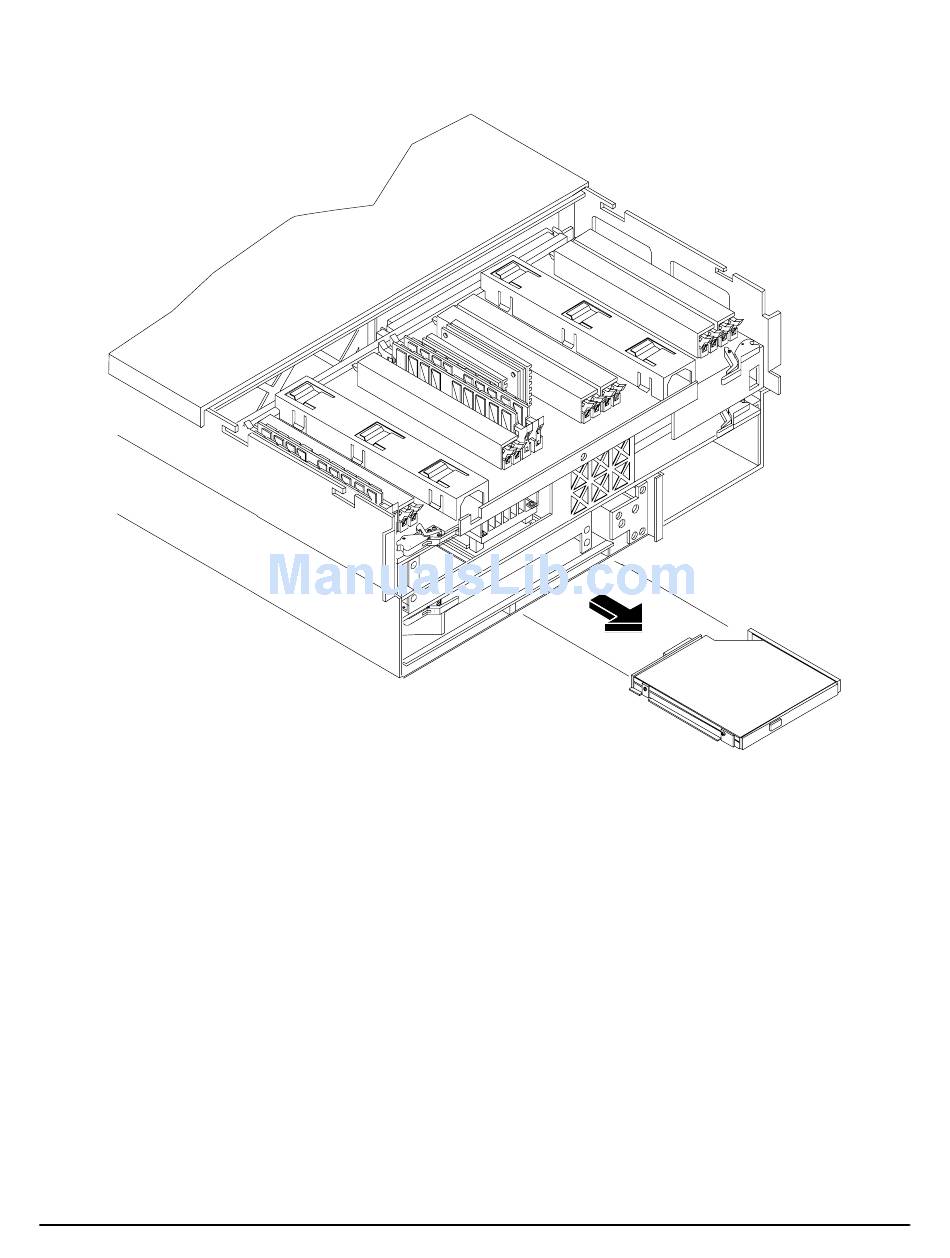

Figure 4-39 DVD Drive Removal and Replacement

Removing a DVD Drive

To remove a DVD drive, perform the following steps:
Step 1. Grasp the front of the DVD drive and squeeze in on the locking tab to release the drive.
Step 2. Remove the front bezel. (Refer to "Front Bezel" on page 38.)
Step 3. Pull the drive straight out to remove it from the chassis.

Replacing a DVD Drive

To replace a DVD drive, perform the following steps:
Step 1. Grasp the front of the DVD drive and squeeze in on the locking tab to release the drive.
Step 2. Push the drive straight into the drive bay until the locking tab clicks into place.
Step 3. Replace the front bezel.
