4. Assembly
IMPORTANT!
TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
The assembly of this barbecue requires 2 people.
Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
Please read the Important Information section carefully before assembly and use of your
barbecue.
1
C11

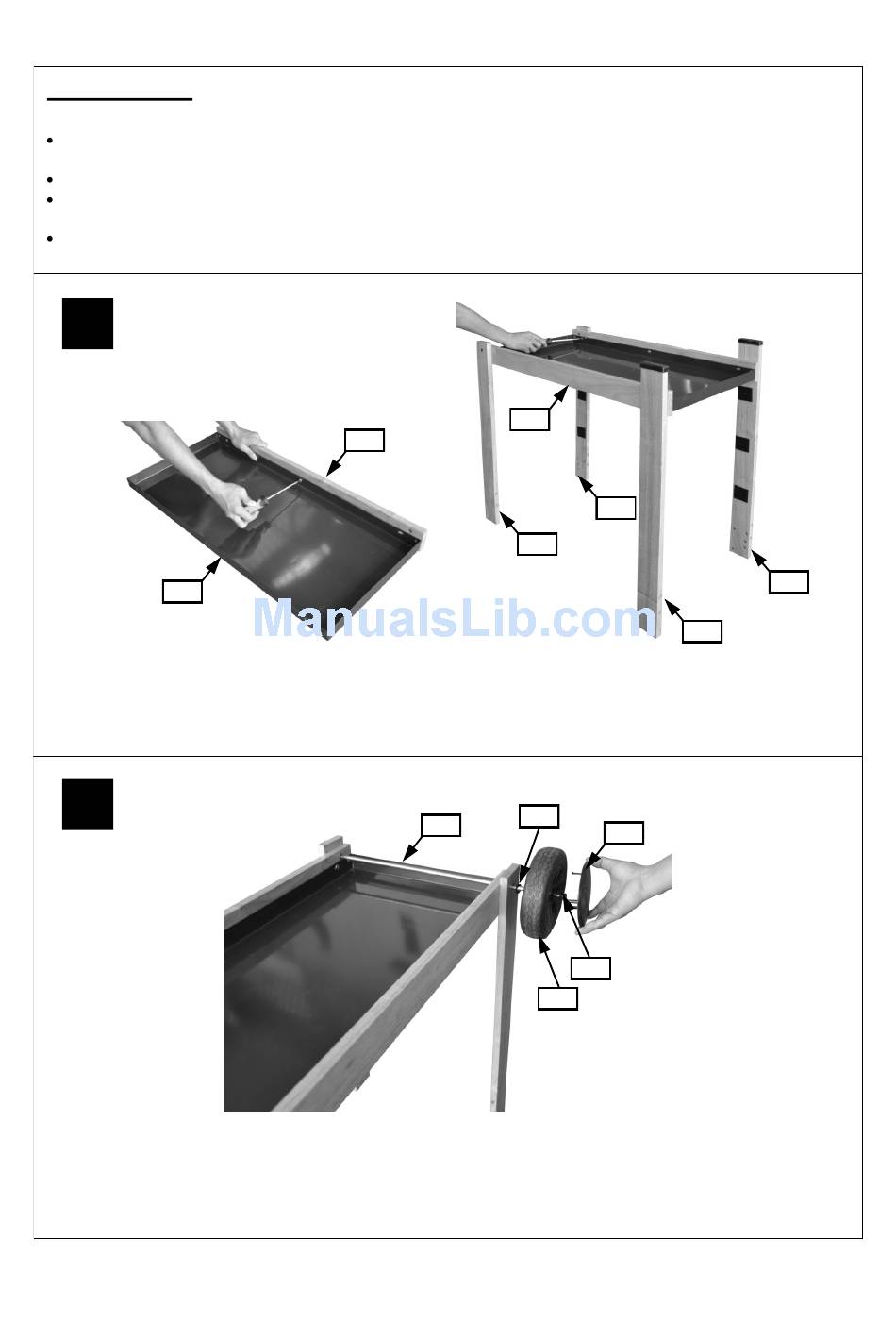

Attach the Front Fixing Support (C10) and Rear Fixing Support (C12) onto the Trolley Base (C11)
by aligning the corresponding holes and fixing with the 1/4-20UNCx12 Bolts (D4). Then attach the
Legs (C3,C4,C5,C6) to the trolley base assembly using the 1/4-20UNCx25 Bolts (D5). Ensure that
the legs with the Velcro attached to them are at the front of the barbecue, facing inwards.
2
Unscrew the Locknuts (D10) from both ends of the Axle (C15) and remove the Axle Washers (D9).
Slide the axle through the corresponding holes in the left legs. Place axle washers on each end of
the axle. Slide the Wheels (C13) over each end of the axle. Secure the wheels into place with the
locknuts. Place the wheel Hubcaps (C14) onto the outside of the wheels.
C12
C10
(Photo depicts trolley
from the reverse side)
C15
5
C3
C4
C6
D9
C14
D10
C13
C5
