Av Connector - Nokia MOBILE TERMINAL Service Manual

RM-356
System Module and User Interface

AV connector

The following features are supported by the engine accessory interface:
• PlugDet signal is grounded when 3.5mm plug is inserted into the AV connector
• Audio output (stereo headset/headphones having the impedance >16ohm)
- DAC33 signal source, TPA6130 two channel audio amplifier
• Audio input (mono microphone from headset)
- Analogue microphone output Mic2P to AVilma
• Control data (ECI)
- Used by AVilma/RAPIDOYAWE for accessory identification when the 3.5mm plug is detected
• TV out composite signal to 75ohm coax cable
- Composite signal is routed to AV connector through a switch (which is controlled by AVVideoCtrl signal)
when TV is detected
• Connects FM receiver to headphones, which serve as FM antenna
- Lines 4 & 5, through the bandpass filter
Issue 1

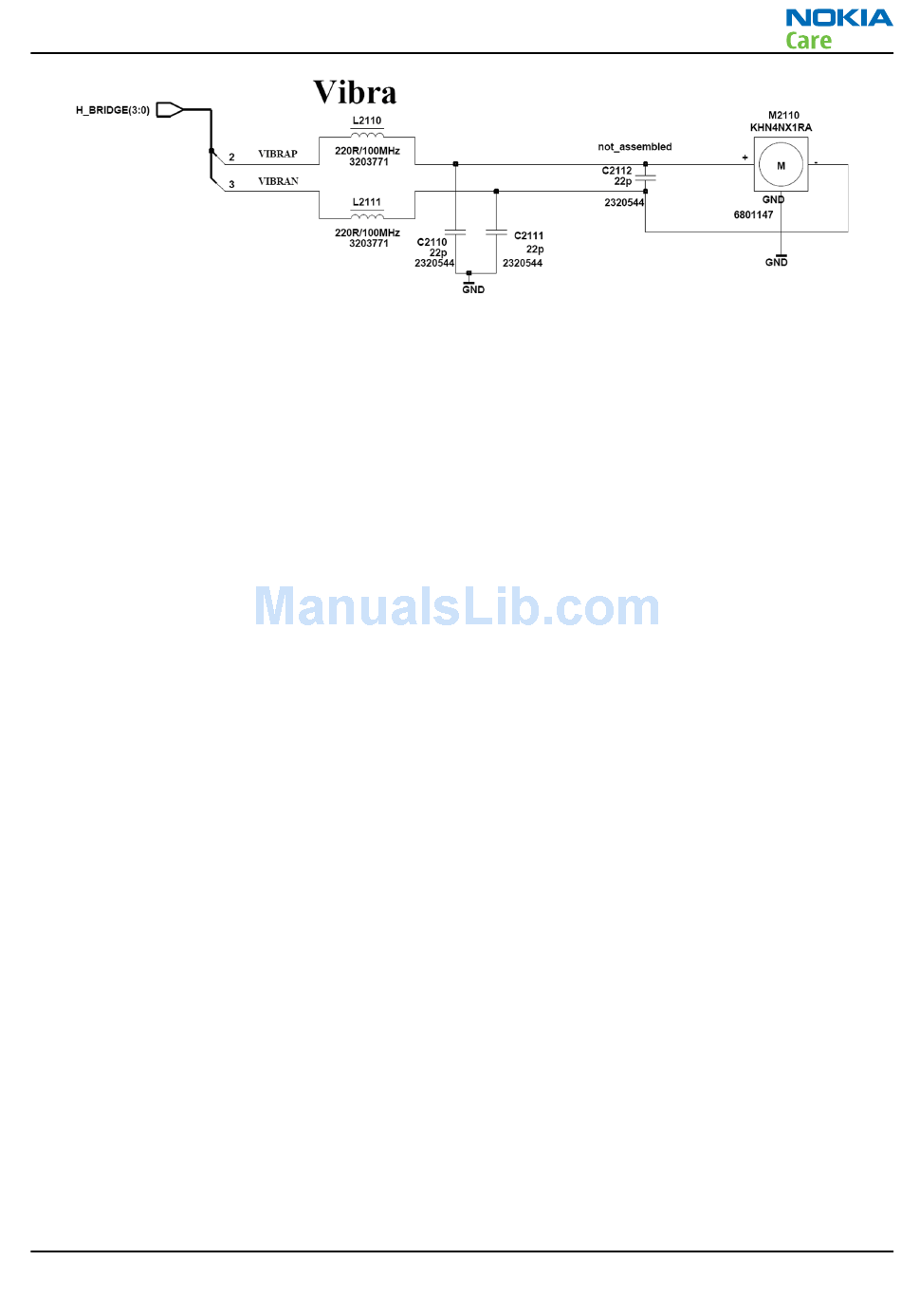

Figure 79 Vibra circuitry
