Tx LO leakage (WCDMA)

Context
The purpose of Tx LO leakage tuning is to minimize the carrier leakage of the IQ-modulator which is caused
by the DC offset voltages in the Tx IQ-signal lines and in the actual IQ modulator.
The tuning improves WCDMA Tx AGC dynamics at low power levels. A self-calibration routine selects the best
combination for internal control words in order to produce minimum LO leakage.

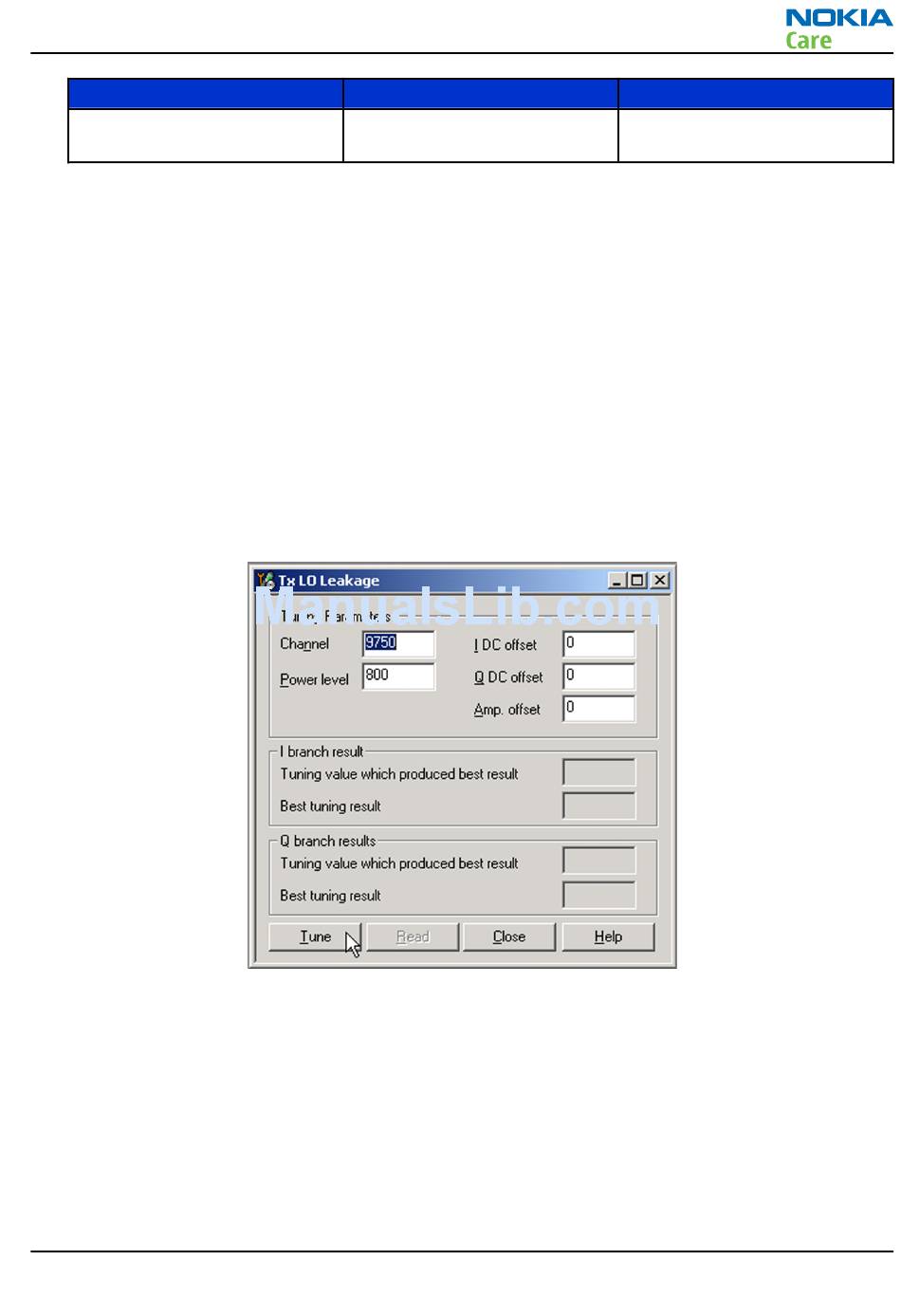

Steps
1. From the Operating mode drop-down menu, set mode to Local.
2. Choose Tuning→WCDMA→ Tx LO Leakage .
3. Click Tune.
4. To end the tuning, click Close.
