Printer Parts
>
Printer parts

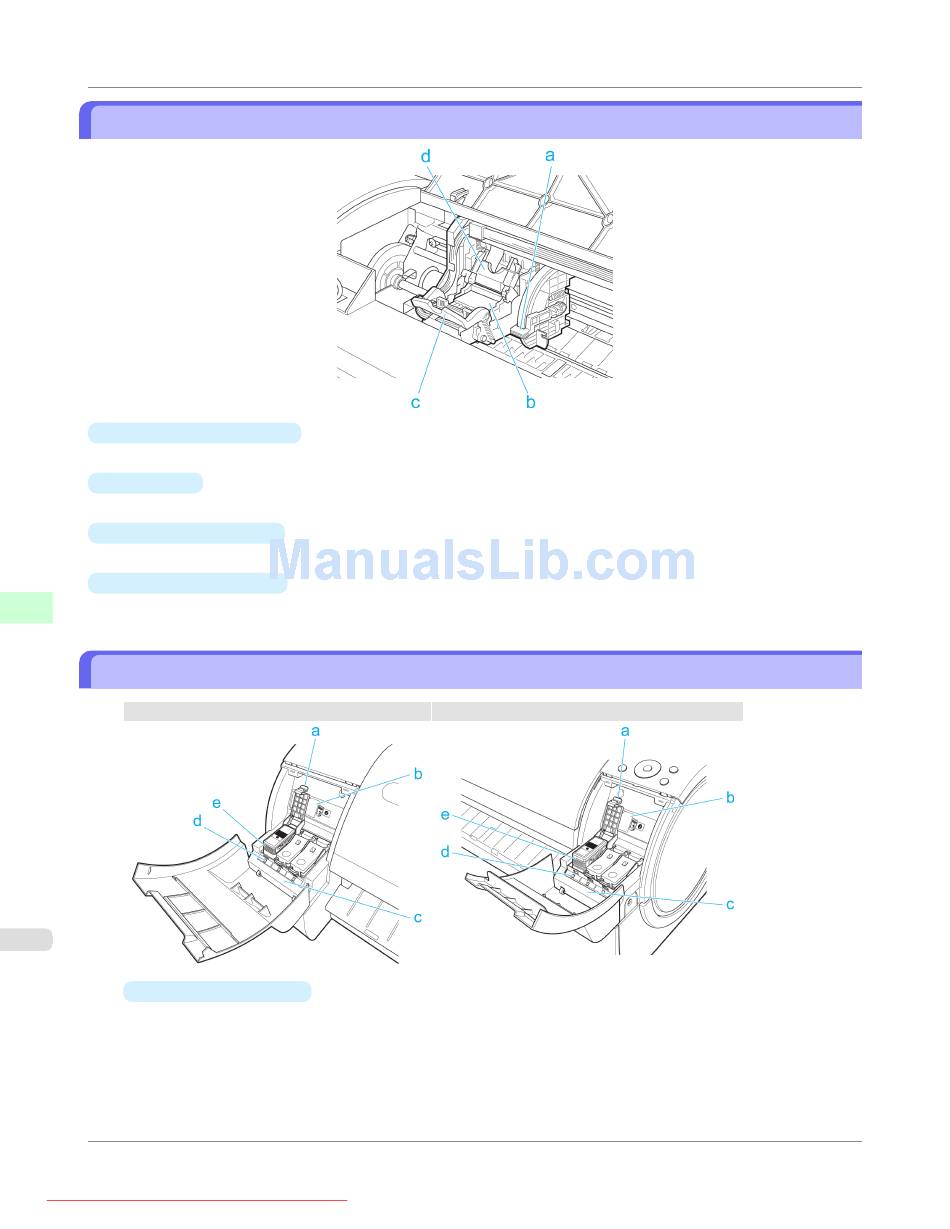

Carriage
a. Angle Adjustment Lever
Use this lever to fine-tune the printer to correct misalignment of printed lines.
b. Printhead
The printhead is equipped with ink nozzles. The carriage serves a key role in printing.
c. Printhead Fixer Lever
Locks the Printhead Fixer Cover.
d. Printhead Fixer Cover
8
Holds the Printhead in place.
Ink Tank Cover (Inside)
702
a. Ink Tank Lock Lever
A lever that locks the Ink Tank in place and protects it. Lift and press down the lever when replacing an Ink
Tank.
Carriage
