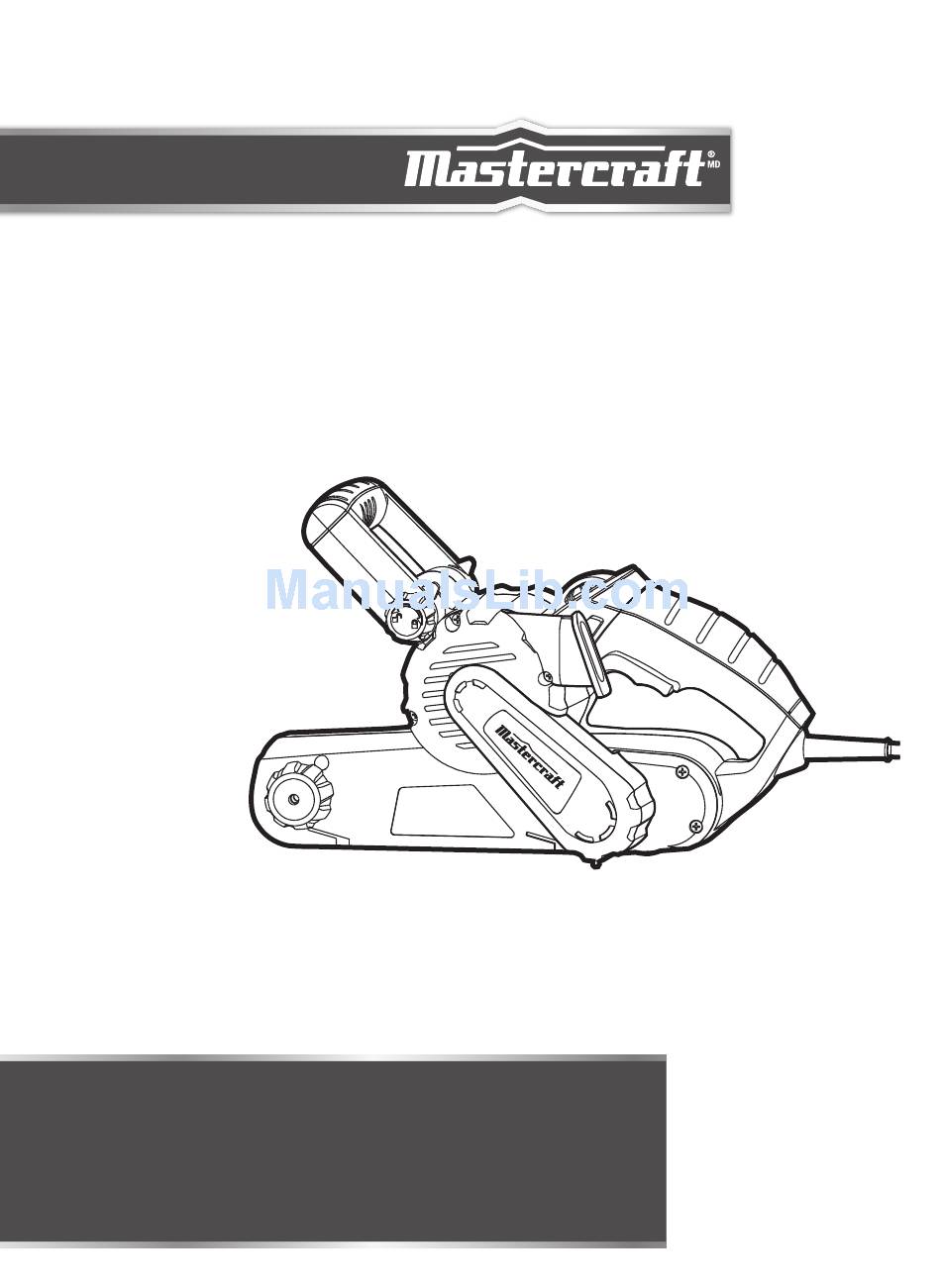

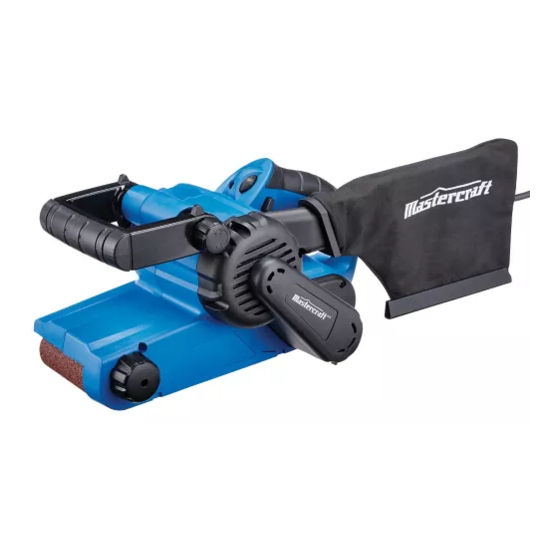

- Page 1 054-7240-8 3 X 21" BELT SANDER INSTRUCTION IMPORTANT: Read and understand this instruction manual thoroughly before MANUAL using the product.
-
Page 2: Table Of Contents
headline bars TABLE OF CONTENTS Technical Specifications Safety Guidelines 5–8 Key Parts Diagram 9–10 Important Information continuation tabs Assembly Instructions 12–13 Operating Instructions Maintenance Troubleshooting notes Part list 17–18 Warranty 19–20 warnings NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928 SAVE THESE INSTRUCTIONS •... -
Page 3: Technical Specifications
054-7240-8 | contact us 1.800.689.9928 RULES FOR SAFE OPERATION TECHNICAL SPECIFICATIONS WARNING! Rated voltage 120V~, 60Hz Rated power input 6.0 A Safety symbols in this Instruction Manual are used to flag possible dangers. The safety symbols and their explanations require your full understanding. - Page 4 054-7240-8 | contact us 1.800.689.9928 ELECTRICAL SAFETY • Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety •...
-
Page 5: Key Parts Diagram
054-7240-8 | contact us 1.800.689.9928 PACKAGE CONTENTS • A suitable breathing respirator must be worn while sanding lead paint, some woods and metal to avoid breathing the harmful/toxic dust or air. Belt sander, dust bag, fine belt, coarse belt and instruction manual •... -
Page 6: Important Information
054-7240-8 | contact us 1.800.689.9928 IMPORTANT INFORMATION Part Part Before attempting to use this sander, familiarize yourself with all its operating features and safety ON/OFF 2-finger trigger switch Belt adjustment knob requirements. “Lock-ON” button 3-position adjustable handle This sander is designed to sand wood surfaces, remove lacquer, varnish and other types of coating. -
Page 7: Assembly Instructions
054-7240-8 | contact us 1.800.689.9928 ASSEMBLY INSTRUCTIONS BELT ADJUSTMENT KNOB (fig 2) fig 2 Your sander features an automatic belt-control system SANDER BELT (fig 1) that helps to keep the belt running in the centre of the fig 1 rollers. -
Page 8: Operating Instructions
054-7240-8 | contact us 1.800.689.9928 OPERATING INSTRUCTIONS MAINTENANCE Before cleaning or performing any maintenance, make sure the sander has been disconnected from the power TURNING THE SANDER ON AND OFF supply. Keep all ventilation openings clean. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. -
Page 9: Troubleshooting
054-7240-8 | contact us 1.800.689.9928 TROUBLESHOOTING EXPLODED VIEW Problem Possible Causes Solution The sander is not connected to a The belt sander does not work Connect the plug to a power source power source If any parts are missing or damaged, or if you have any questions, please call the Toll-free Helpline, at 1-800-689-9928. - Page 10 3121011000 Cord Guard 4810002000 Power Cord & Plug This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase against defects in workmanship and materials, except for the following components: 3121026000 Bearing Holder...
-
Page 11: Warranty
054-7240-8 | contact us 1.800.689.9928 Additional Limitations This warranty applies only to the original purchaser and may not be transferred. Neither the retailer nor the manufacturer shall be liable for any other expense, loss or damage, including, without limitation, any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or inability to use this product.
