Summary of Contents for MasterCraft 054-7193-0

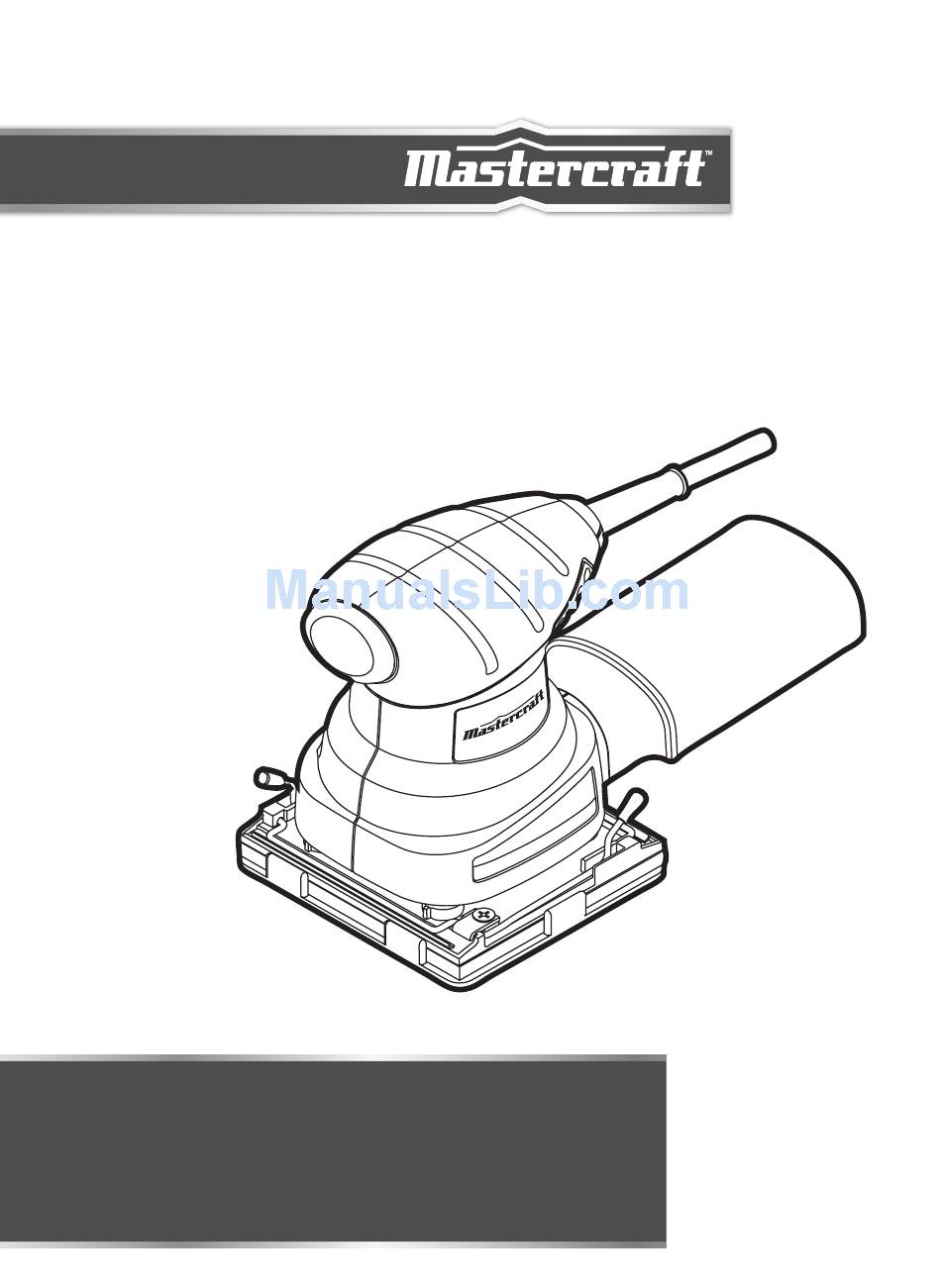

- Page 1 054-7193-0 1/4 Sheet Sander INSTRUCTION IMPORTANT: Read and understand this instruction manual thoroughly before MANUAL using the product.
-
Page 2: Table Of Contents
headline bars TAbLe Of CONTeNTS Technical Specifications Safety Guidelines 5–8 Key Parts Diagram Important Information continuation tabs Assembly Instructions 11–12 Operating Instructions 13–14 Maintenance Troubleshooting notes Part list 17–18 Warranty 19–20 warnings NOTe: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928 SAVe THeSe INSTRUCTIONS • This manual contains important safety and operating... -
Page 3: Technical Specifications
054-7193-0 | contact us 1.800.689.9928 RULeS fOR SAfe OPeRATION TeCHNICAL SPeCIfICATIONS WARNING! Rated voltage 120V~ 60Hz Rated power input Safety symbols in this Instruction Manual are used to flag possible dangers. The safety symbols and their explanations require your full understanding. The safety warnings do not, by themselves,... - Page 4 054-7193-0 | contact us 1.800.689.9928 eLeCTRICAL SAfeTy • Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter measures reduce the risk of starting the power tool accidentally. plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of • Store idle power tools out of the reach of children and do not allow persons unfamiliar with the...
-
Page 5: Key Parts Diagram
054-7193-0 | contact us 1.800.689.9928 PACKAge CONTeNTS • A suitable breathing respirator must be worn while sanding lead paint, some woods and metal to avoid breathing the harmful/toxic dust or air. 1/4 sheet sander, dust bag, punch plate, and instruction manual. • Always wear safety goggles and a dust mask when sanding, especially when sanding overhead Key PARTS dIAgRAM • The machine is not suitable for wet sanding. • Do not use sanding paper that is larger than needed. Extra paper extending beyond the sanding pad can also cause serious lacerations. -
Page 6: Important Information
054-7193-0 | contact us 1.800.689.9928 IMPORTANT INfORMATION ASSeMbLy INSTRUCTION Before attempting to use this sander, familiarize yourself with of all its operating features and safety ATTACHINg SANdPAPeR (fig 1) requirements. fig 1 1. Unplug the sander. -
Page 7: Operating Instructions
054-7193-0 | contact us 1.800.689.9928 ATTACHINg THe dUST bAg (fig 3) OPeRATINg INSTRUCTIONS fig 3 To install: Press the dust bag port down on to the slot of TURNINg THe TOOL ON ANd Off the dust chute until the chute’s detent fully engages with the holes. -
Page 8: Maintenance
054-7193-0 | contact us 1.800.689.9928 SANdINg TIPS MAINTeNANCe Before cleaning or performing any maintenance, make sure that the sander has been disconnected from the 1. Starting and stopping the sanding – Contact the workpiece with the tool only after it has reached full speed power supply. -
Page 9: Troubleshooting
054-7193-0 | contact us 1.800.689.9928 TROUbLeSHOOTINg exPLOded VIew Problem Possible Causes Solution Cooling vents may be obstructed Clean, clear vents. Do not cover with Motor overheating by dust or other obstacles hand during operation If any parts are missing or damaged, or if you have any questions, please call the Toll-free Helpline, at 1-800-689-9928. - Page 10 Switch Cover 3120234000 Cord Anchorage 2800018000 Brush Holder 5610024000 Tapping Screw This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase 4960008000 Carbon Brush 3121011000 Cord Guide against defects in workmanship and materials, except for the following components: 5700004000 Bearing 4810002000 Power Cord &...
-
Page 11: Warranty
054-7193-0 | contact us 1.800.689.9928 additional Limitations This warranty applies only to the original purchaser and may not be transferred. Neither the retailer nor the manufacturer shall be liable for any other expense, loss or damage, including, without limitation, any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or inability to use this product.
