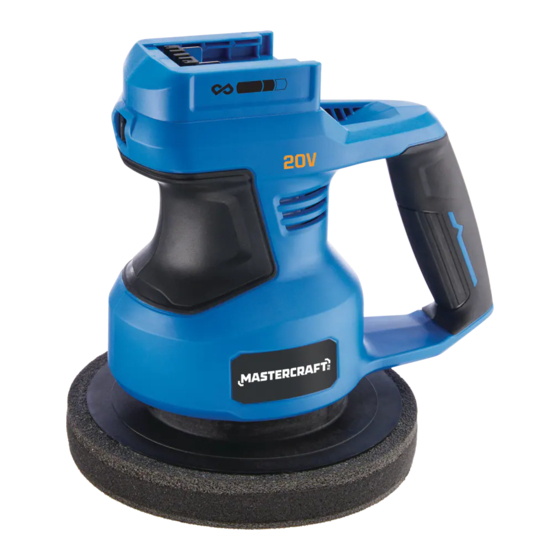

- Page 1 CORDLESS POLISHER 054-7285-2 IMPORTANT: INSTRUCTION Read and understand this instruction manual MANUAL thoroughly before using the product.
- Page 2 headline bars headline bars headline bars continuation tabs continuation tabs continuation tabs notes notes notes warnings warnings warnings...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Guidelines Key Parts Diagram Assembly Instructions Operating Instructions Maintenance Troubleshooting Parts List Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS •... -
Page 4: Technical Specifications
5.0 Ah Li-ion (054-2434-8; sold separately) Weight (without battery) 3 lb (1.35 kg) *Maximum battery voltage without workload; with workload nominal voltage is 18V. Recommend using tool with Mastercraft® 20V max* Lithium-Ion 4.0 Ah battery (054-7557-6; sold notes notes notes separately) and higher capacity batteries for optimal performance. -
Page 5: Safety Guidelines
SAFETY GUIDELINES: WARNING! Safety symbols in this instruction manual are used to flag possible dangers. The safety symbols and their explanations require your full understanding. The safety warnings do not, by themselves, eliminate any danger, nor are they substitutes for proper accident prevention measures. WARNING! This Safety Alert Symbol indicates caution, warning, or danger. - Page 6 054-7285-2 | contact us 1-800-689-9928 ELECTRICAL SAFETY • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Page 7 POWER TOOL USE AND CARE • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. • Do not use the power tool if the switch does not turn it on and off.
- Page 8 054-7285-2 | contact us 1-800-689-9928 temperature above 130ºC (266ºF) may cause explosion. • Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
- Page 9 • The label on your tool may include the following symbols. The symbols and their definitions are as follows: V ..... Volts A ..... Amperes Hz ....Hertz W ....Watts min ....Minutes ....Alternating current or d.c...... Direct current n 0 ....
-
Page 10: Key Parts Diagram
054-7285-2 | contact us 1-800-689-9928 PACKAGE CONTENTS: Cordless polisher, 1 fabric bonnet, 1 wool bonnet, and instruction manual. KEY PARTS DIAGRAM continuation tabs continuation tabs continuation tabs notes notes notes warnings warnings... -
Page 11: Assembly Instructions
ASSEMBLY INSTRUCTIONS fig 1 Detach TO ATTACH BATTERY PACK (fig 1) 1. Make sure that the switch is in the OFF position. Latch 2. Align the raised portion on the battery pack with the groove on the bottom of the tool, then slide the battery pack onto the tool. -
Page 12: Operating Instructions
054-7285-2 | contact us 1-800-689-9928 OPERATING INSTRUCTIONS APPLICATION You may use this tool for the purposes listed below: Polishing/buffing cars, boats, personal watercraft, RVs, motorcycles, hardwood floors and large furniture. For best results, the surface should be clean and dry. Most high-gloss surfaces can be cleaned with a mild soap and water solution and then dried thoroughly before polishing. -
Page 13: Maintenance
MAINTENANCE BEFORE EACH USE: 1. Inspect the cordless polisher, the switch, and the accessories for damage. 2. Check for damaged, missing, or worn parts. 3. Check for loose screws, misalignment or binding of moving parts, or any other condition that may affect the operation. -
Page 14: Troubleshooting
054-7285-2 | contact us 1-800-689-9928 TROUBLESHOOTING Problem Possible Causes Solution The polisher does not start. The battery is depleted. Charge the battery pack. The bonnet dropped off There is too much wax on Wash the bonnet or replace with a new from the base plate. -
Page 15: Parts List
EXPLODED VIEW... - Page 16 054-7285-2 | contact us 1-800-689-9928 No. Part No. Description No. Part No. Description 0547285201 Battery connector 0547285209 Bearing 0547285202 Switch 0547285210 Circlip 0547285203 Capacitor 0547285211 Shaft sleeve...
-
Page 17: Warranty
This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase against defects in workmanship and materials, except for the following components: a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;... - Page 18 054-7285-2 | contact us 1-800-689-9928 h) this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited to, scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive and chemical cleaners;...
