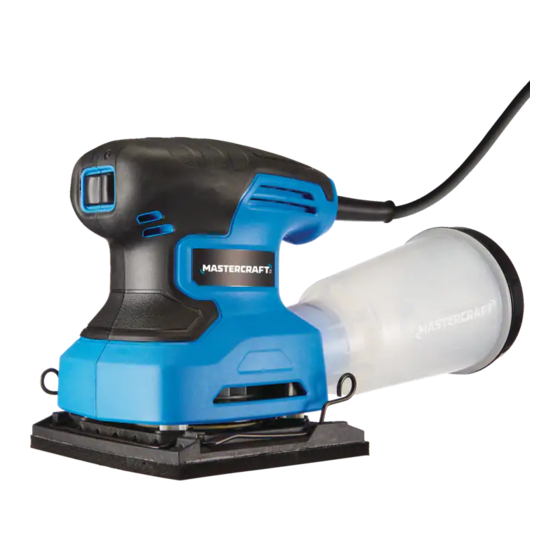

- Page 1 1/4” SHEET SANDER 054-7295-8 IMPORTANT: INSTRUCTION Read and understand this instruction manual MANUAL thoroughly before using the product.
- Page 2 headline bars headline bars headline bars continuation tabs continuation tabs continuation tabs notes notes notes warnings warnings warnings...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Guidelines Key Parts Diagram Operating Instructions Maintenance Troubleshooting Parts List Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS •... -
Page 4: Technical Specifications
headline bars headline bars headline bars model no. 054-7295-8 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Rated Voltage 120 V~, 60 Hz Rated Input 2.2 A No-load Speed 14,000 OPM continuation tabs continuation tabs continuation tabs notes notes notes warnings warnings warnings... -
Page 5: Safety Guidelines
SAFETY GUIDELINES: WARNING! Safety symbols in this Instruction Manual are used to flag possible dangers. The safety symbols and their explanations require your full understanding. The safety warnings do not, by themselves, eliminate any danger, nor are they substitutes for proper accident prevention measures. - Page 6 headline bars headline bars headline bars model no. 054-7295-8 | contact us 1-800-689-9928 ELECTRICAL SAFETY • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adaptor plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Page 7 POWER TOOL USE AND CARE • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. • Do not use the power tool if the switch does not turn it on and off.
- Page 8 headline bars headline bars headline bars headline bars headline bars headline bars model no. 054-7295-8 | contact us 1-800-689-9928 ADDITIONAL SAFETY GUIDELINES FOR SHEET SANDER • The label on your tool may include the following symbols. The symbols and their definitions are as follows: V .....
-
Page 9: Key Parts Diagram
PACKAGE CONTENTS: 1/4 sheet sander, microfilter dust canister, sanding paper (80 grit), punch plate and instruction manual. KEY PARTS DIAGRAM No. Description No. Description On/off switch Microfilter dust canister Sanding pad Sanding-paper-clamp lever WARNING! • Remove the sheet sander from the package and examine it carefully. Do not discard the carton or any packaging material until all parts have been examined. -
Page 10: Operating Instructions
headline bars headline bars headline bars headline bars headline bars headline bars model no. 054-7295-8 | contact us 1-800-689-9928 OPERATING INSTRUCTIONS SANDING PAPER This sander uses 1/4 sheet sanding paper, which can be cut from standard (228 x 280 mm) sanding paper. - Page 11 INSTALL THE MICROFILTER DUST fig 2 CANISTER (fig 2) Your sander is supplied with a dust canister to help you keep the working area clean. The dust canister is ideal for smaller jobs. For maximum efficiency, the dust canister should be emptied frequently during Microfilter dust operation.
- Page 12 headline bars headline bars headline bars model no. 054-7295-8 | contact us 1-800-689-9928 CLEAN AND EMPTY THE DUST CANISTER fig 4a (fig 4 ) Dust-canister body 1. Remove the dust canister from the tool. 2. Hold the dust-canister body and remove the microfilter by rotating it counter-clockwise.
- Page 13 SANDING TIPS When starting and stopping sanding, contact the workpiece with the tool only after it has reached full speed and remove it from the workpiece before turning off the switch. Operating in this manner will prolong switch and motor life and will greatly increase the quality of your work. 2.
-
Page 14: Maintenance
headline bars headline bars headline bars model no. 054-7295-8 | contact us 1-800-689-9928 MAINTENANCE The tool may be cleaned most effectively with compressed dry air. Always wear safety goggles when cleaning tools with compressed air. Before each use: • Inspect the tool, the trigger switch, and the cord for damage. •... -
Page 15: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Solution Cooling vents may be Clean and clear the vents. Do not cover obstructed by dust or other Motor is overheating. with hand during operation. obstacles. The sander is not connected The sander does not start. Plug the sander into a power source. -
Page 16: Parts List
headline bars headline bars headline bars headline bars headline bars headline bars model no. 054-7295-8 | contact us 1-800-689-9928 EXPLODED VIEW continuation tabs continuation tabs continuation tabs continuation tabs continuation tabs continuation tabs notes notes notes notes notes notes warnings warnings warnings warnings... - Page 17 No. Part No. Description No. Part No. Description 3900185000 L R Housing Set 2751226000 Rotor Set 4930008000 Sleeve 4960316000 Carbon Brush 4860302000 Internal Wire Assembly 2800234000 Brush Holder 4860360000 Internal Wire Assembly 3127319000 Fan Baffle 4860299000 Internal Wire Assembly 3120282000 Pad Support 3125792000 Switch Cover 3700137000 Flange Screw 4870051000 Switch...
-
Page 18: Warranty
054-7295-8 | contact us 1-800-689-9928 This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase against defects in workmanship and materials, except for the following components: a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;... - Page 19 The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation. Made in China Imported by Mastercraft Canada Toronto, Canada M4S 2B8...
