Summary of Contents for MasterCraft 2112.1

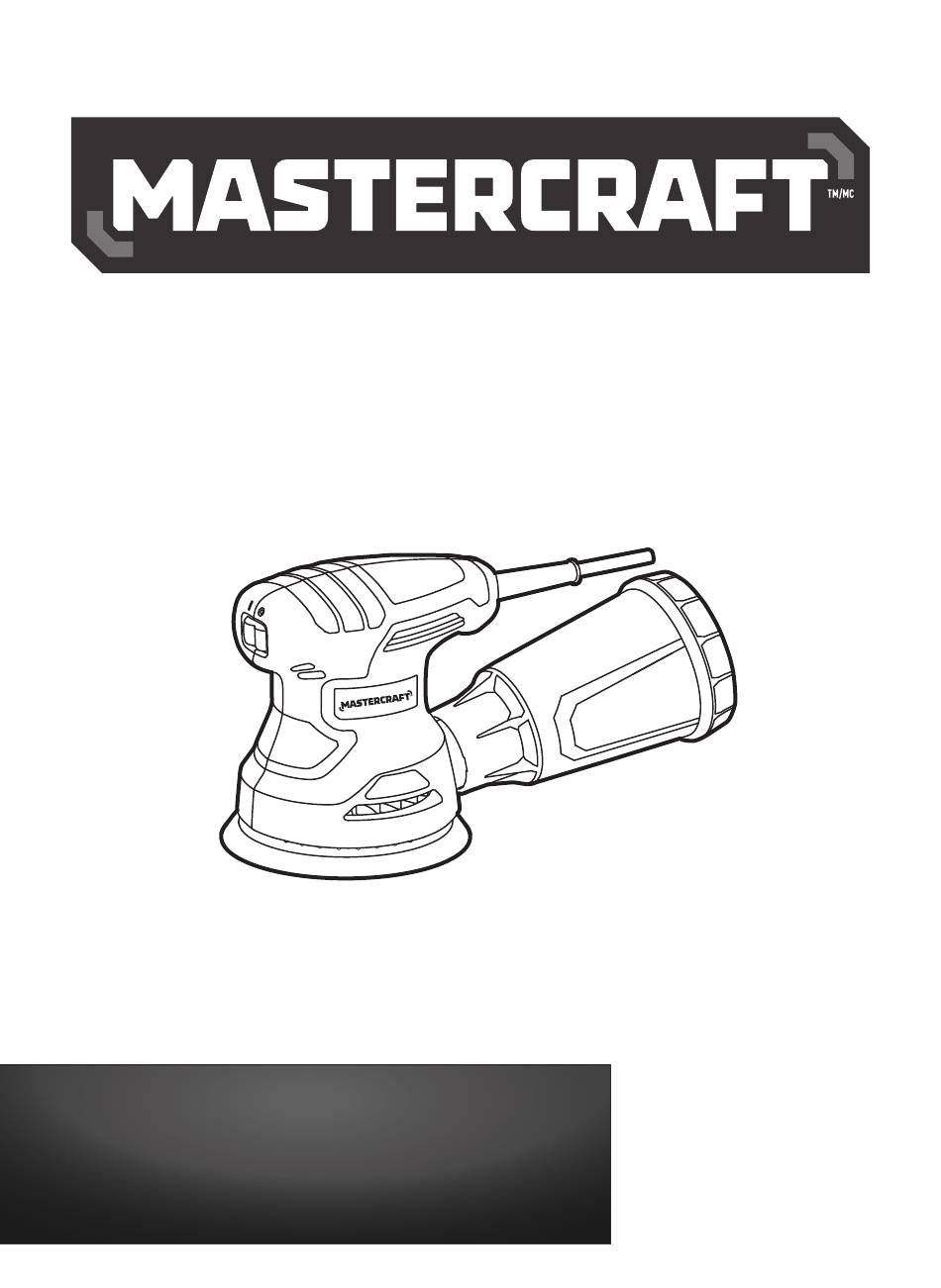

- Page 1 RANDOM ORBIT SANDER 054-7296-6 INSTRUCTION IMPORTANT: Read and understand this instruction manual thoroughly MANUAL before using the product.
- Page 2 headline bars headline bars headline bars continuation tabs continuation tabs continuation tabs notes notes notes warnings warnings warnings...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Guidelines Key Parts Diagram Operating Instructions Maintenance Troubleshooting Parts List Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS •... -
Page 4: Technical Specifications
headline bars headline bars headline bars model no. 054-7296-6 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Rated Voltage 120 V~, 60 Hz Rated Input 2.6 A No-load Speed 12,500 OPM continuation tabs continuation tabs continuation tabs notes notes notes warnings warnings warnings... -
Page 5: Safety Guidelines
SAFETY GUIDELINES: WARNING! Safety symbols in this Instruction Manual are used to flag possible dangers. The safety symbols and their explanations require your full understanding. The safety warnings do not, by themselves, eliminate any danger, nor are they substitutes for proper accident prevention measures. - Page 6 headline bars headline bars headline bars model no. 054-7296-6 | contact us 1-800-689-9928 • Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adaptor plugs with earthed (grounded) power tools.
- Page 7 • Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. POWER TOOL USE AND CARE • Do not force the power tool.
- Page 8 headline bars headline bars headline bars headline bars headline bars headline bars model no. 054-7296-6 | contact us 1-800-689-9928 ADDITIONAL SAFETY GUIDELINES FOR THE SANDER • The label on your tool may include the following symbols. The symbols and their definitions are as follows: V .....
-
Page 9: Key Parts Diagram
PACKAGE CONTENTS: Random orbit sander, microfilter dust canister, 2 sanding papers (80 grit) and instruction manual. KEY PARTS DIAGRAM No. Description No. Description On/off switch Sanding pad Microfilter dust canister WARNING! • Remove the random orbit sander from the package and examine it carefully. Do not discard the carton or any packaging material until all parts have been examined. -
Page 10: Operating Instructions
headline bars headline bars headline bars headline bars headline bars headline bars model no. 054-7296-6 | contact us 1-800-689-9928 OPERATING INSTRUCTIONS ATTACH THE SANDING PAPER (fig 1) fig 1 1. Disconnect the sander from the power source. 2. Place the sander upside down on a flat surface. Sanding paper 3. - Page 11 ATTACH THE VACUUM HOSE ( fig 3) fig 3 Directly attach the 1 1/4”(3.2 cm) vacuum hose to the dust port, and then connect the opposite end of the vacuum hose to a vacuum cleaner. Dust port 1 1/4”(3.2 cm) vacuum hose CLEAN AND EMPTY THE DUST CANISTER fig 4a...
- Page 12 headline bars headline bars headline bars headline bars headline bars headline bars model no. 054-7296-6 | contact us 1-800-689-9928 SELECT THE CORRECT SANDING PAPER GRADE Available grades are: coarse, medium and fine. Use a coarse grit to sand rough finishes, medium grit to smooth the work and fine grit to finish off.
-
Page 13: Maintenance
MAINTENANCE BEFORE EACH USE 1. Inspect the sander, the rocker switch, the cord and the accessories for damage. 2. Check for damaged, missing, or worn parts. 3. Check for loose screws, misalignment or binding of moving parts, or any other condition that may affect the operation. -
Page 14: Troubleshooting
headline bars headline bars headline bars model no. 054-7296-6 | contact us 1-800-689-9928 TROUBLESHOOTING Problem Possible Causes Solution Be sure the cooling vents Clean and clear the vents. Do not The motor is overheating. are free from dust and cover the vents with your hand during obstacles. -
Page 15: Parts List
EXPLODED VIEW... - Page 16 headline bars headline bars headline bars headline bars headline bars headline bars model no. 054-7296-6 | contact us 1-800-689-9928 No. Part No. Description No. Part No. Description 4810003210 Power Cord and Plug 2740099000 Stator 3121011000 Cord Guard 3402301000 Dust Fan 3322657000 Left Housing 3421477000 Counterweight 4870051000 Switch...
-
Page 17: Warranty
This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase against defects in workmanship and materials, except for the following components: a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;... - Page 18 The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation. Made in China notes notes notes Imported by Mastercraft Canada Toronto, Canada M4S 2B8 warnings warnings warnings...
