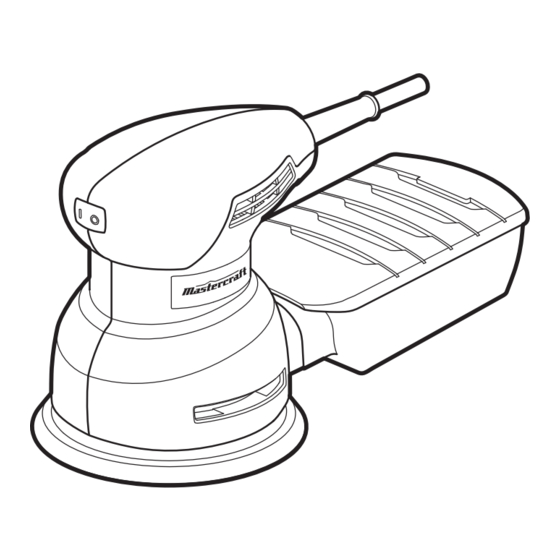

- Page 1 054-8392-0 RANDOM ORBIT SANDER INSTRUCTION IMPORTANT: Read and understand this instruction manual thoroughly MANUAL before using the product.
-
Page 2: Table Of Contents
headline bars TABLE OF CONTENTS Technical Specifications Safety Guidelines Key Parts Diagram Assembly Instructions continuation tabs Operating Instructions Maintenance Troubleshooting Parts List notes Warranty warnings NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS •... -
Page 3: Technical Specifications
054-8392-0 | contact us 1-800-689-9928 SAFETY GUIDELINES TECHNICAL SPECIFICATIONS WARNING! Rated power input 2.4A Safety symbols in this instruction manual are used to flag possible dangers. The safety Rated voltage 120V~, 60 Hz symbols and their explanations require your full understanding. The safety warnings do not,... - Page 4 054-8392-0 | contact us 1-800-689-9928 ELECTRICAL SAFETY POWER TOOL USE AND CARE • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use • Do not force the power tool. Use the correct power tool for your application.
-
Page 5: Key Parts Diagram
054-8392-0 | contact us 1-800-689-9928 • Protect your hearing. Wear appropriate personal hearing protection during use. Under PACKAGE CONTENTS: some conditions and duration of use, noise from this product may contribute to hearing loss. -
Page 6: Assembly Instructions
054-8392-0 | contact us 1-800-689-9928 ASSEMBLY INSTRUCTIONS DUST BOX Your sander is supplied with a dust box to help you keep the working area clean. The dust box is ideal ATTACHING THE SANDPAPER (fig 1) fig 1 for smaller jobs. -
Page 7: Operating Instructions
054-8392-0 | contact us 1-800-689-9928 OPERATING INSTRUCTIONS MAINTENANCE TURNING THE SANDER ON/OFF (fig 3) BEFORE EACH USE fig 3 To turn on the sander, depress the side of the rocker 1. Inspect the sander, the rocker switch, the cord and the accessories for damage. -
Page 8: Troubleshooting
054-8392-0 | contact us 1-800-689-9928 CLEANING THE DUST BOX (fig 4) TROUBLESHOOTING fig 4 Upper cover Always empty and clean the dust box thoroughly Problem Possible Causes Solution when you’ve finished sanding and before you store... - Page 9 054-8392-0 | contact us 1-800-689-9928 EXPLODED VIEW Part No. Description Part No. Description 3127055000 Switch cover 5700008000 Ball bearing 4870051000 Switch 3126439000 Left housing 4930008000 Sleeve 5690013000 O ring 4960273000 Carbon brush 2740099000 Stator...
- Page 10 This Mastercraft product is guaranteed for a period of 3 years from the date of original retail Notice to Consumer...
