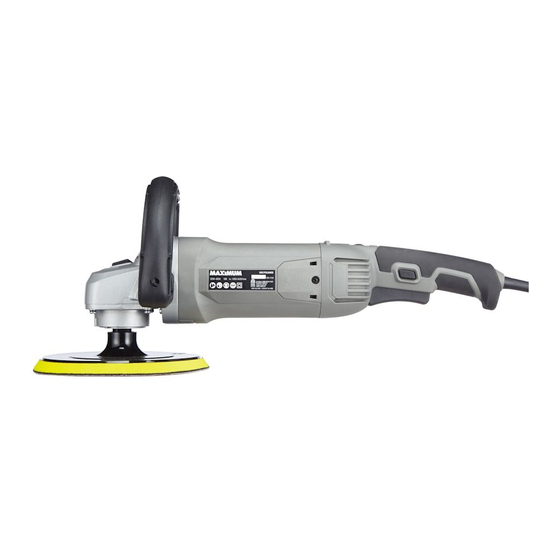

Heavy-duty Sander/Polisher
Model No. 054-7135-0
IMPORTANT:
Please read this manual carefully before using
this product, and save it for reference.
TM
INSTRUCTION
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAXIMUM 054-7135-0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MasterCraft MAXIMUM 054-7135-0

  • Page 1 Heavy-duty Sander/Polisher Model No. 054-7135-0 IMPORTANT: INSTRUCTION Please read this manual carefully before using MANUAL this product, and save it for reference.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS TECHNICAL SPECIFICATIONS GENERAL POWER TOOL SAFETY WARNINGS SAFETY INSTRUCTIONS FOR ALL OPERATIONS SYMBOLS PARTS LIST ACCESSORIES KNOW YOUR SANDER / POLISHER OPERATING INSTRUCTIONS WORKING HINTS FOR YOUR POLISHER MAINTENANCE TROUBLESHOOTING WARRANTY NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928 SAVE THESE INSTRUCTIONS This manual contains important safety and...
  • Page 4: Technical Specifications

    model no. 054-7135-0 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS VOLTAGE 120 V 60 Hz AC AMPS VARIABLE SPEEDS 1000–3000 RPM (no load) PAD SIZE 7” (17.8 cm) PAD TYPE Hook and loop fastening system SPINDLE THREAD 5/8”-11 UNC CORD LENGTH 10’...
  • Page 5: General Power Tool Safety Warnings

    WORK AREA SAFETY Keep work area clean and well lit. Cluttered or dark areas invite accidents. • Do not operate power tools in explosive atmospheres, such as in the presence of • flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  • Page 6 model no. 054-7135-0 | contact us 1-800-689-9928 ELECTRICAL SAFETY Power tool plugs must match the outlet. Never modify the plug in any way. Do not • use any adapter plugs with grounded power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and •...
  • Page 7 Do not use the power tool if the switch does not turn it on and off. Any power tool • that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or the battery pack from the •...
  • Page 8: Safety Instructions For All Operations

    model no. 054-7135-0 | contact us 1-800-689-9928 SAFETY INSTRUCTIONS FOR ALL OPERATIONS Safety warnings common for polishing operations: This power tool is intended to function as a sander/polisher. Read all safety • warnings, instructions, illustrations and specifications provided with this power tool.
  • Page 9 Do not run the power tool while carrying it at your side. Accidental contact with the • spinning accessory could snag your clothing, pulling the accessory into your body. Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside •...
  • Page 10 model no. 054-7135-0 | contact us 1-800-689-9928 Do not allow any loose portion of the polishing bonnet or its attachment strings • to spin freely. Tuck away or trim any loose attachment strings. Loose and spinning attachment strings can entangle your fingers or snag on the workpiece.
  • Page 11: Symbols

    SYMBOLS To reduce the risk of injury, user must read instruction manual Double insulation Warning Wear ear protection Wear eye protection Wear dust mask Don’t use in the rain...
  • Page 12 model no. 054-7135-0 | contact us 1-800-689-9928 No. Description No. Description Spindle lock button On/off switch Front handle Lock-on switch Variable speed control Hook-and-loop pad Rear handle Not all the accessories illustrated or described are included in standard delivery.
  • Page 13: Accessories

    ACCESSORIES 80 Grit sanding disc with hook-and-loop backing 3 Wool bonnet Hook-and-loop pad We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake.
  • Page 14: Know Your Sander / Polisher

    model no. 054-7135-0 | contact us 1-800-689-9928 No. Description No. Description Cord & plug Felt seal Cord protector Bearing race Self-tapping screw Ring Cord clamp Washer Capacitor Gear case Constant speed unit Side handle Screw On/off switch Lock button Carbon brush (pair) Compression spring Brand label Snap ring...
  • Page 15: Operating Instructions

    PLACE THE BONNET (Fig. A) Place the required bonnet securely over the hook-and-loop pad and make sure it’s centrosymmetric, otherwise the polisher vibrates badly. Fig. A Fig. SPREAD THE POLISH (Fig. B) Spread about a tablespoonful of polish evenly over the entire surface of the pad cover.
  • Page 16 model no. 054-7135-0 | contact us 1-800-689-9928 Fig. D Fig. D VARIABLE SPEED CONTROL (Fig.E) The speed increases as you turn the switch to a higher number and decreases at a lower number. Fig. E Fig. E HAND GRIP AREAS (Fig. F) Always hold your car polisher firmly with both hands when operating.
  • Page 17 Fig. A Fig. G2 SPINDLE LOCK BUTTON (Fig. H) Press in the spindle lock button and rotate the hook-and-look pad by hand until it is locked. ATTENTION: The spindle lock button must only be used when changing a pad. Never press it when the pad is rotating.
  • Page 18: Working Hints For Your Polisher

    model no. 054-7135-0 | contact us 1-800-689-9928 WORKING HINTS FOR YOUR POLISHER • At all times, let the polisher do the work—do not not force it or apply excessive pressure to the polisher. Preferably, use a light circular motion. Pressing too hard will slow down the machine’s movement and affect the quality of the work.
  • Page 19: Maintenance

    MAINTENANCE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool.
  • Page 20: Troubleshooting

    model no. 054-7135-0 | contact us 1-800-689-9928 TROUBLESHOOTING • If your power tool does not start, check the plug on the power supply first. • If the polisher does not abrade surface, check the bonnet. If the bonnet has been worn, replace with new bonnet and try again.
  • Page 21 This Mastercraft Maximum product is guaranteed for a period of 5 years from the date of original retail purchase against defects in workmanship and materials, except for the following components: a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;...
  • Page 22 model no. 054-7135-0 | contact us 1-800-689-9928 ADDITIONAL LIMITATIONS This warranty applies only to the original purchaser and may not be transferred. Neither the retailer nor the manufacturer shall be liable for any other expense, loss or damage, including, without limitation, any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or inability to use this product.
