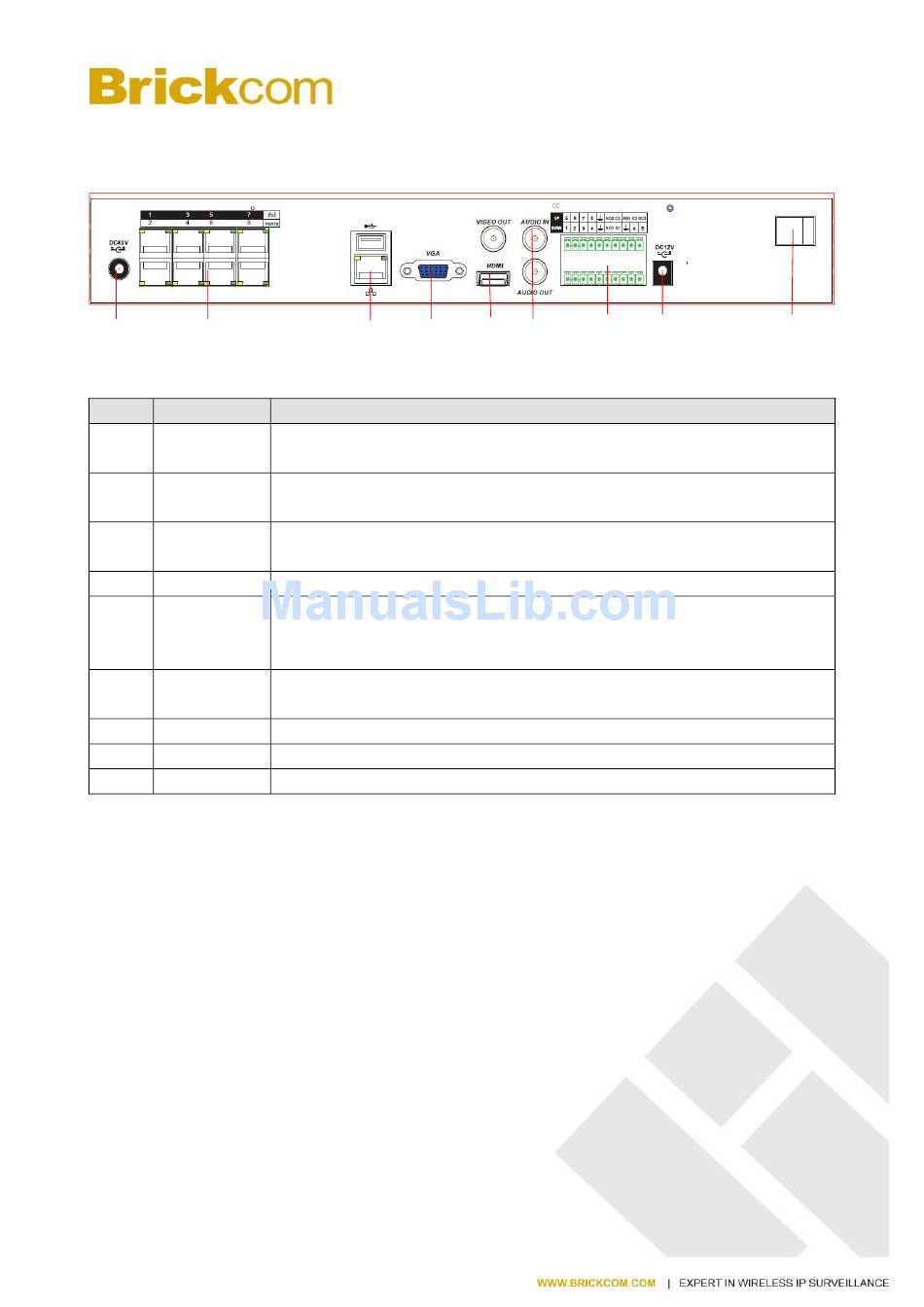

4.2 Rear Panel

9 8
No Name
Audio/Video
1
Out
2 Ethernet Port
3 VGA Port
4 Power Input
5 The Terminals
6 HDMI Port
7 Power Switch
8 POE Ports
9 POE Power

4.3 Remote Control

The remote control interface is shown as below:
3
2
NV-2008-E NVR rear panel
The output interfaces of the audio signal and CVBS
Self-adaptive Ethernet port. Connect to the network cable. USB ports, connect to the
mouse and U-disk.
VGA video output port. Output analog video signal. It can connect to the monitor to view
analog video.
12V DC power
Alarm In/Out ports.
RS-485 communication port. You can connect to the control devices such as speed dome
PTZ.
High definition audio and video signal output port. It transmits uncompressed high
definition video and multiple-channel data to the HDMI port of the display device.
The power switch.
Built-in Switch. Support POE.
48V DC power.
