www.brickcom.com.tw
DC
Loading
G
DC
OUT
See details 7.2.5.

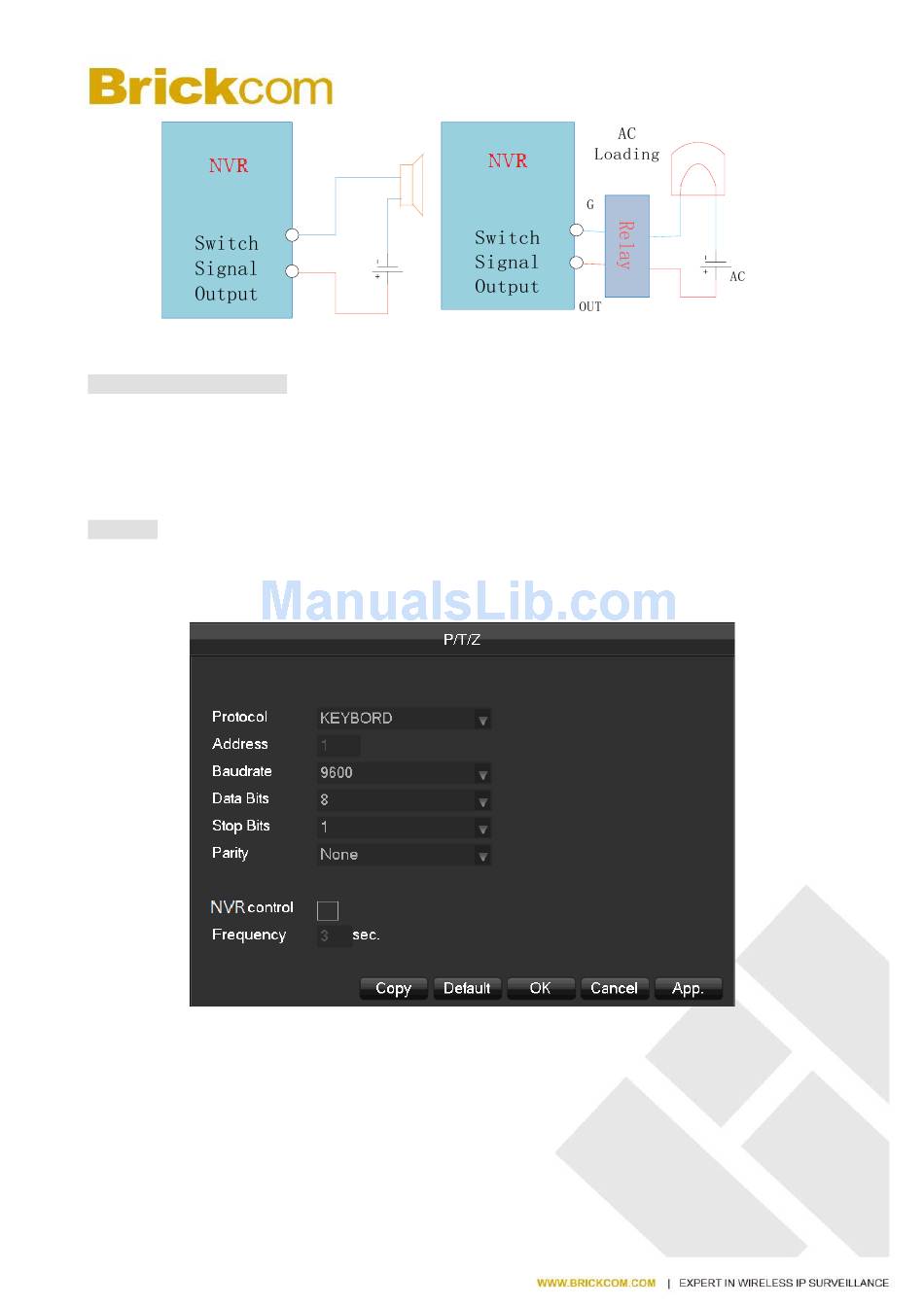

The Connection of the P/T/Z
The A, B interface of the PTZ decoder connect with A and B interfaces of the NVR's RS-485. 120Ω resistors should
be paralleled in the remote A, B lines to reduce the distortion of the signal if a larger number of PTZs are connected.
See details 7.2.4.
Keyboard
The A, B interface of the Keyboard connect with A and B interfaces of the NVR's RS-485 .【MAIN MENU】→
【CONFIGURATION】→【P/T/Z】，Protocol choose KEYBORAD. See below.
16
