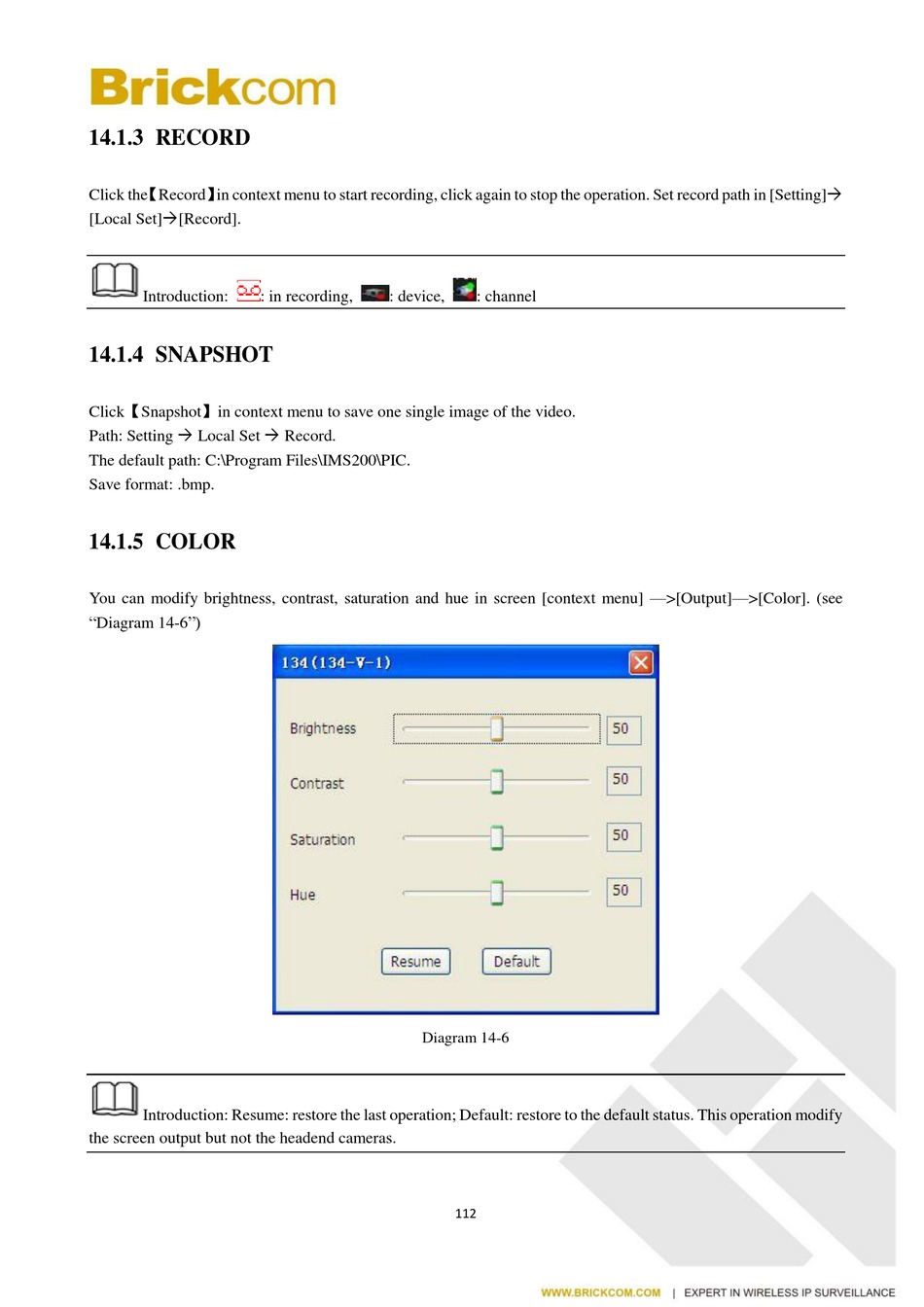

Brickcom NR-2008 User Manual page 113

14.1.3 RECORD
Click the 【 Record】 in context menu to start recording, click again to stop the operation. Set record path in [Setting]
[Local Set][Record].
Introduction: : in recording,
14.1.4 SNAPSHOT
Click【Snapshot】in context menu to save one single image of the video.
Path: Setting  Local Set  Record.
The default path: C:\Program Files\IMS200\PIC.
Save format: .bmp.
14.1.5 COLOR
You can modify brightness, contrast, saturation and hue in screen [context menu] —>[Output]—>[Color]. (see
"Diagram 14-6")
Introduction: Resume: restore the last operation; Default: restore to the default status. This operation modify
the screen output but not the headend cameras.
: device, : channel
Diagram 14-6
112
www.brickcom.com.tw
