• Tagged command queuing to process up to 255
simultaneous data requests
• RS-232 management for local management
control; Ethernet option available for setup
connection only
TM
• ExpressNAV browser-based user interface
• Two power supplies capable of 85-264 V (rated
100-240V AC) operation (340 watts each)
• UL, TUV and CE marked and compliant
• Internal thermal and power management
• Redundant hot swappable power supplies with
integrated thermal and power management
• Floor model cabinet or 19" 3U rack mount

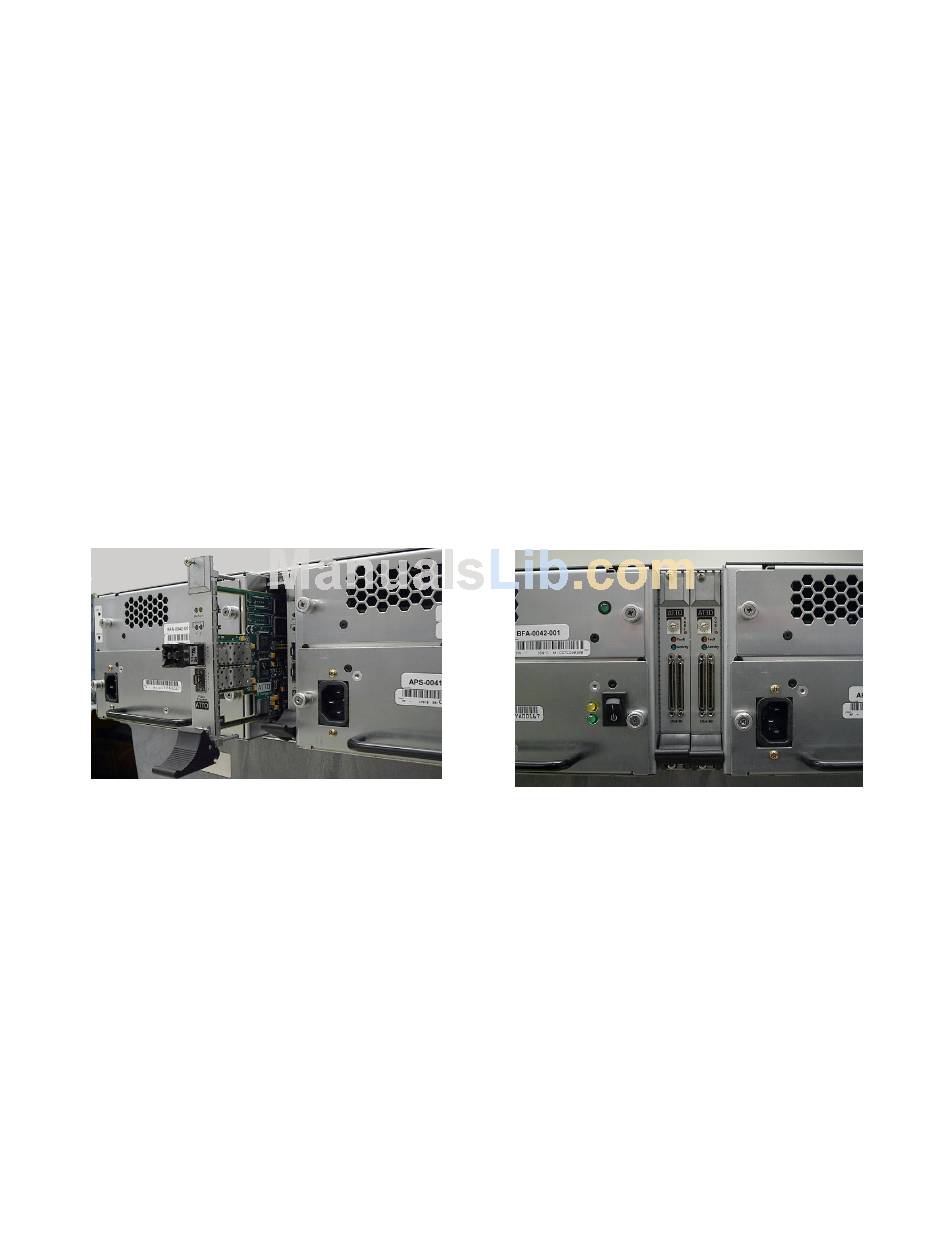

Exhibit 1.0-1 Back of rack mount model, Diamond Storage Array. Left: 2 gigabit Fibre Channel. Right:
SCSI.

Fibre Channel model

• 2 gigabit Fibre Channel Port (single or dual
channel)
• SFP-based Fibre Channel interface supports
long wave and short wave optical cables
• Built-in hub for daisy-chaining
• Up to 9,500 I/Os per second per port
• Up to 240 MB/sec. sustained Fibre Channel
transfer rates per interface

SCSI model

• Ultra 160 SCSI bus.
• Dual stacked VHDCI connectors for daisy-
chaining and termination
• SCSI Target ID selection switch
• Support for single-ended and LVD SCSI
• No onboard termination
