QUICK START GUIDE
FEATURES:
• 1/2.8" 8.0 Megapixel [4K] CMOS Image Sensor
• 8MP (3840 × 2160) [1~20fps], 6MP (3072 × 2048 ), 5MP (2592 × 1944),
720P (1280 × 720), D1, CIF, 480 × 240 [1~30fps]
• 2.8mm Fixed Iris Lens
• Matrix IR (up to 100' IR Range)
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Region Intrusion Detection, Scene Change Detection, Line Crossing, Video Blur, Video
Color Cast Detection
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• MicroSD Card Slot for Local Recording (Up to 256GB)
• 1 Ch. Audio In + Built-in Mic*
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Optional Wall Mounts (VT-TWMT-3, VT-TWMT-A1 [reqs. VT-TJB08]), Junction Boxes
(VT-TJB01, VT-TJB08), and Pendant Mounts (VT-TPDMT-A1 [reqs. VT-TJB08],
VT-TPDM-2 [reqs. VT-TJB01])
See additional mounting options on pg. 9
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio
surveillance.

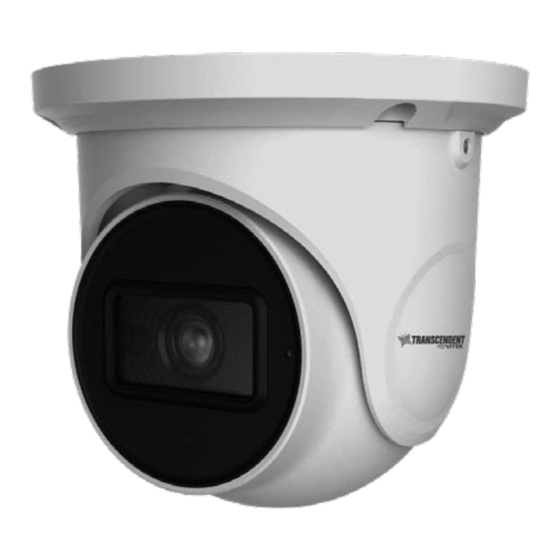

VTC-TNT8RFEA-2
Transcendent Series 8 MegaPixel [4K]
Fixed IP WDR Turret Camera
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Available in Ivory or Charcoal,
(VTC-TNT8RFEAB-2)
Advertisement
Table of Contents
Related Manuals for Vitek Transcendent VTC-TNT8RFEA-2
Summary of Contents for Vitek Transcendent VTC-TNT8RFEA-2

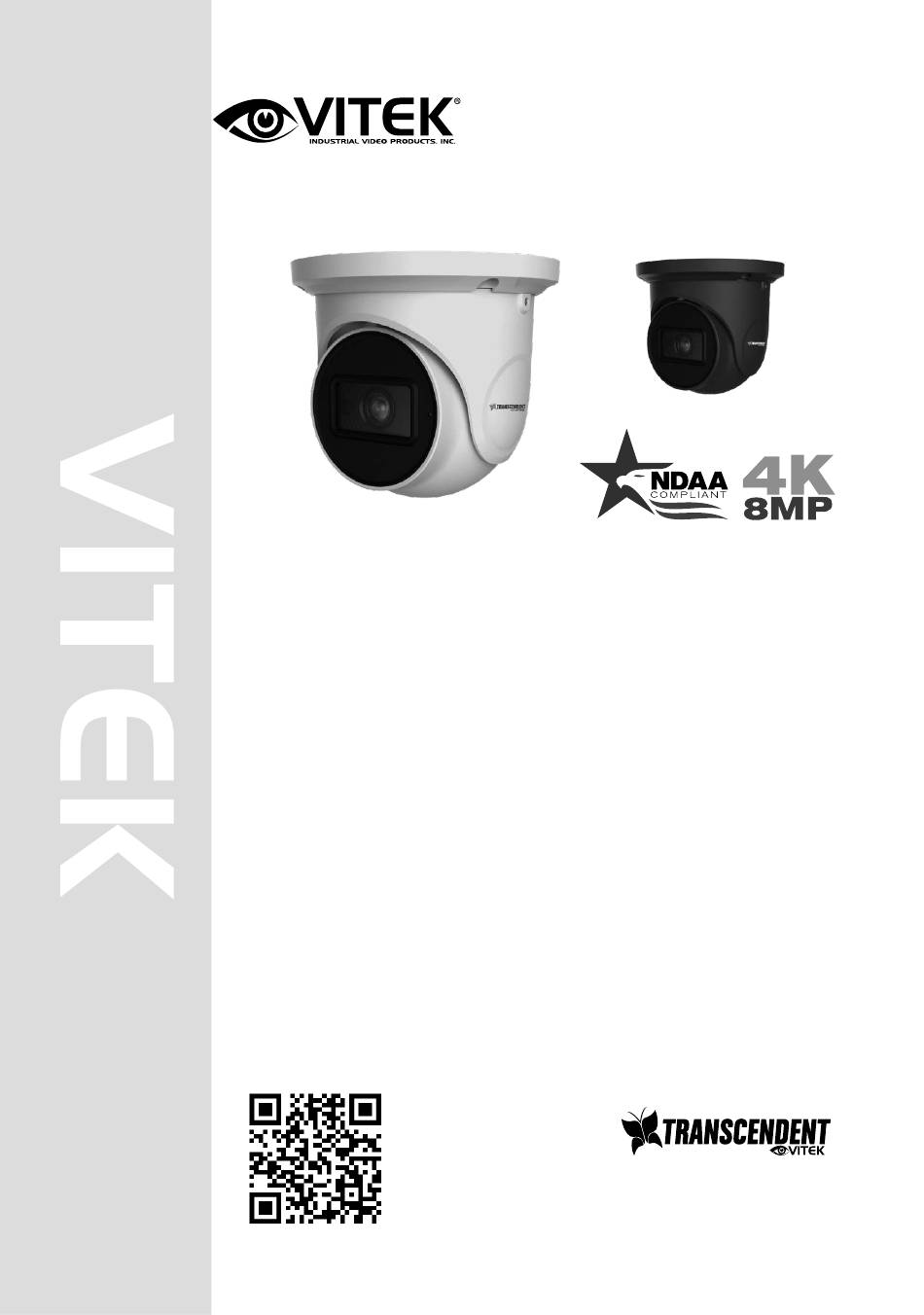

- Page 1 VTC-TNT8RFEA-2 Transcendent Series 8 MegaPixel [4K] Fixed IP WDR Turret Camera QUICK START GUIDE Available in Ivory or Charcoal, (VTC-TNT8RFEAB-2) FEATURES: • 1/2.8” 8.0 Megapixel [4K] CMOS Image Sensor • 8MP (3840 × 2160) [1~20fps], 6MP (3072 × 2048 ), 5MP (2592 × 1944), 720P (1280 ×...
-
Page 2: Components And Accessories
Components and Accessories Camera Drill Template Quick Guide Rubber Plug Screws Waterproof Cap Hex Wrench Overview Network Cable & Power Connections First connect the Weather Resistant Cap to an Ethernet patch cable, then connect the cameras to the ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC power supply. -
Page 3: Installation
Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. - Page 4 Fig. 2 3. Loosen the lock screws, then adjust the camera to obtain the optimium viewing angle. Confirm the correct viewing Lock Screw angle with a monitor. Next, tighten the lock screw to secure the viewing angle adjustments.
-
Page 5: Lan Configuration
LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. - Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 7: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. - Page 8 VTC-TNT8RFEA-2 Detailed Specifications 1/2.8” 8.0 Megapixel [4K] Progressive Scan CMOS Image Sensor Image Size 8 MegaPixel (3840 × 2160) Resolution 8MP(3840×2160) [1~20fps], 6MP(3072×2048), 5MP(2592×1944), 720P(1280×720), D1, CIF, 480×240 [1~30fps] Min. Illumination 0.02 lux @ F1.6, AGC ON; 0 lux with IR, 0.01lux@F1.2, AGC ON; 0 lux with IR 1 s ~ 1 / 100000 s Electronic Shutter 2.8mm Fixed Iris Lens...
- Page 9 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNT8RFEA-2 VT-TJB08 VT-TJB01 VT-TWMT3 VT-TPDM-2 Optional Optional Optional Wall Transcendent Universal Junction Box Junction Box Mount 10” Pendant Mount. Reqs. VT-TJB01 5.10” VT-TWMT-A1 VT-TPLMT VT-TCNMT VT-TPDMT-A1 Transcendent Transcendent Transcendent Transcendent Wall Mount. Reqs. Universal Pole Universal Corner Universal 10”...
- Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS UPDATED UPDATED NVRs NEWLY NEWLY TRANSCENDENT A Standalone Solution with Analytic Support and NDAA Compliance! • 8MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression •...
- Page 11 Also Consider Vitek NDAA Compliant Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 12: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
