FEATURES
• 1/3" 2.1 Megapixel Progressive Scan CMOS image sensor
• 2.1 MegaPixel Video Transmission over COAX cable at
distances of up to 1500' using HD-TVI Technology*
• 2.8~12mm Varifocal Lens (VTC-TTT28R2V) / 3.6mm Fixed
Iris Lens (VTC-TTT28R2F)
• 28 Infrared LED's with 70' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
• IP66 Weather Resistance
• 12VDC Operation

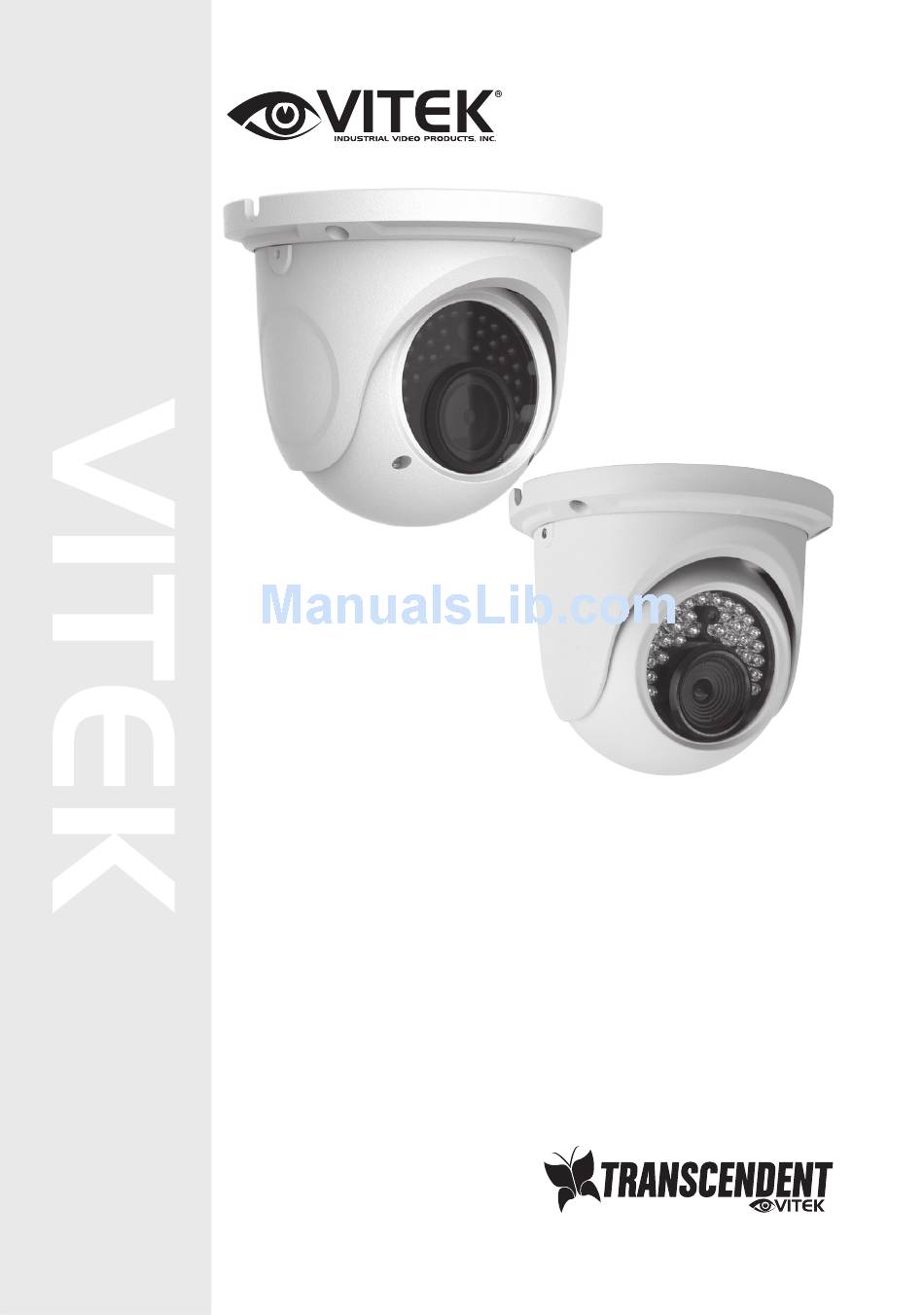

VTC-TTT28R2F
VTC-TTT28R2V

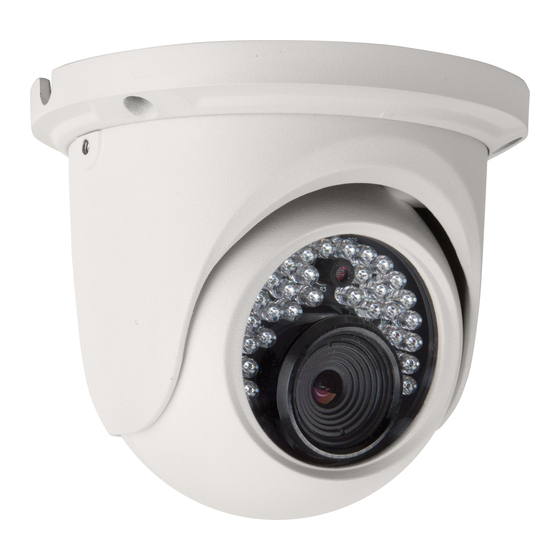

2.1 Megapixel Indoor/Outdoor
HD-TVI IR Turret Cameras
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-TTT28R2F
Summary of Contents for Vitek VTC-TTT28R2F
- Page 1 • 2.1 MegaPixel Video Transmission over COAX cable at distances of up to 1500’ using HD-TVI Technology* • 2.8~12mm Varifocal Lens (VTC-TTT28R2V) / 3.6mm Fixed Iris Lens (VTC-TTT28R2F) • 28 Infrared LED’s with 70’ IR Range • Digital Wide Dynamic Range (D-WDR) •...
-
Page 2: Safety Precaution
Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. -
Page 3: Components And Accessories
Components and Accessories Camera Hex Wrench User Manual Mounting Plate Screws Overview This camera series supports both fixed and varifocal lenses. Please note that the zoom and focus features mentioned below are not features of the fixed lens version. Lens Lock Screws Video Cable Focus*... -
Page 4: Video Connection
Video Connection Connect the video connecter to a BNC patch cable. Monitor Video Power Connection Connect the power connecter to a 12 VDC power adaptor. 12VDC Power... - Page 5 Installation Before start, please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the...
- Page 6 Installation 4. Tighten the lock screws to secure the viewing angle adjustments. 5. Adjust the Focus and Zoom screws to achieve a clear image (if your camera has a fixed lens, please skip this step). 6. Carefully remove the protective film from the lens to complete the installation.
- Page 7 Detailed Specifications VTC-TTT28R2F VTC-TTT28R2V Image Sensor 1/3” CMOS (AR0330 + NVR2421 + TP2801) Video Compression Standard H.264 Resolution 1080P (2 MegaPixel) Effective Pixels 1920(H) x 1080(V) Signal System PAL/NTSC Synchronization Internal Lens 3.6mm Fixed 2.8~12mm (Vari-Focal) S/R Ratio >52dB (AGC OFF) Auto Gain Control OFF ~ 44.8dB...
-
Page 8: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
