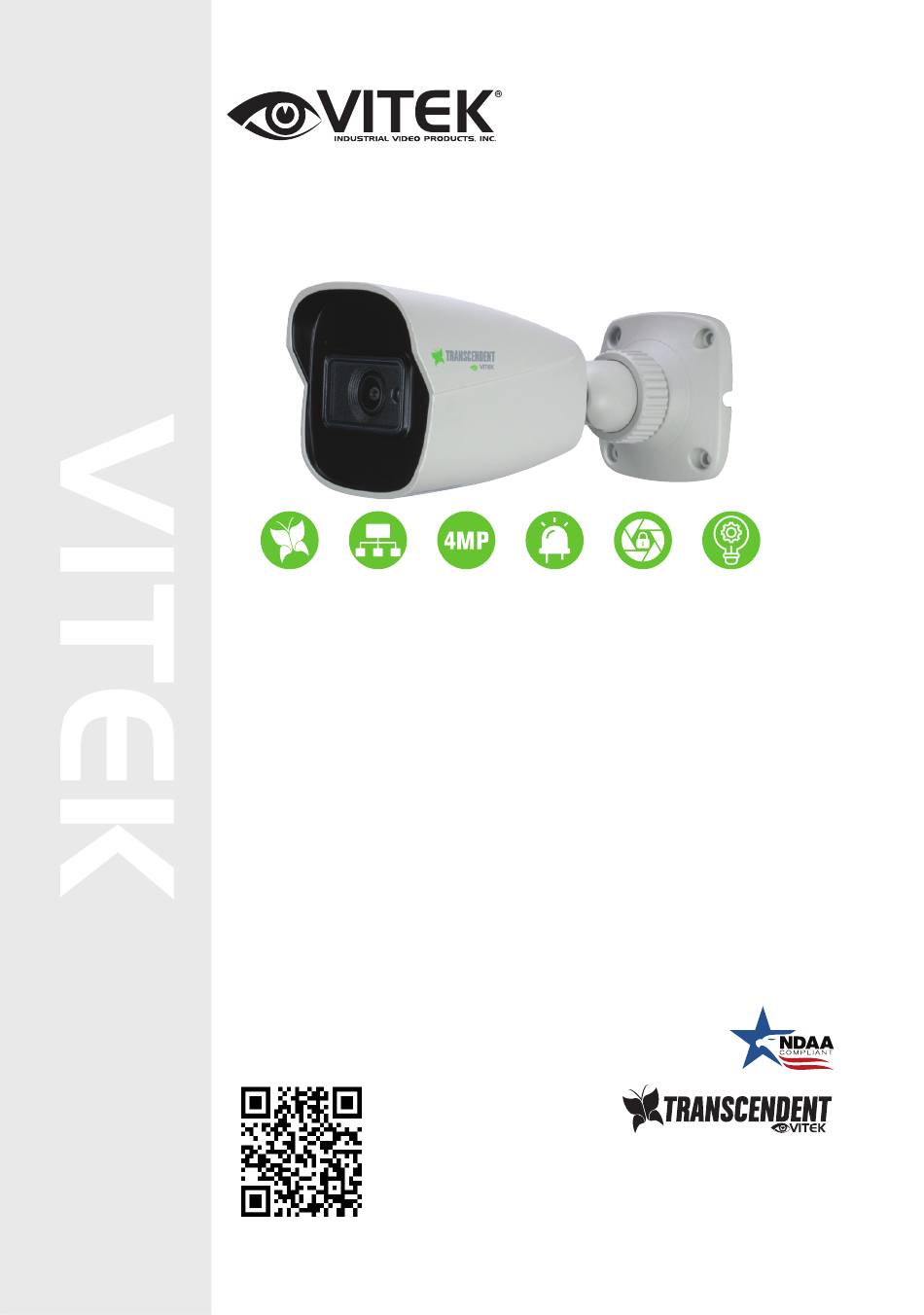

QUICK START GUIDE
TRANSCENDENT
NETWORK
FEATURES
• 1/3" 4.0 Megapixel CMOS Image Sensor
• Up to 30fps @ 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P
(1280 × 720), D1, CIF, 480 × 240
• 2.8mm Fixed Iris Lens
• Matrix IR with up to 100' IR Range
• True 120dB Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• 1 Ch. Audio In*
• Region Intrusion Detection, Object Tracking, Scene Change, Line Crossing, Video Blur, Video
Cast Detection
• Compression - Main stream: H.265 / H.264, Sub stream: H.265 / H.264 / MJPEG
• MicroSD Card Slot for Local Recording (Up to 256GB)
• Remote Viewing via VMS, IE (plug-in required) / Google Chrome / Edge / Firefox / Safari,
and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Wall Mount Included & Optional Junction Box (VT-TJB08) Available
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
VTC-TNB4FLN-2
MegaPixel Indoor/Outdoor IP
4 MEGAPIXEL
MATRIX IR LED
ILLUMINATION
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series 4
Fixed Bullet Camera
FIXED IRIS
STANDARD
LENS
ANALYTICS
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-TNB4FLN-2
Summary of Contents for Vitek VTC-TNB4FLN-2
- Page 1 VTC-TNB4FLN-2 Transcendent Series 4 MegaPixel Indoor/Outdoor IP Fixed Bullet Camera QUICK START GUIDE TRANSCENDENT NETWORK 4 MEGAPIXEL MATRIX IR LED FIXED IRIS STANDARD ILLUMINATION LENS ANALYTICS FEATURES • 1/3” 4.0 Megapixel CMOS Image Sensor • Up to 30fps @ 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 ×...
-
Page 2: Components And Accessories
Components and Accessories Camera Drill Template Quick Guide Plastic Plugs Screws Network Coupler Overview 1. Locking Ring 5. Power Connector 2. Mounting Base 6. MicroSD Card Slot 3. Network Connector 7. Reset 4. Audio Input 8. Mic Cable Connections First connect the weather resistant cap to an ethernet patch cable, then connect the cameras ethernet adaptor. -
Page 3: Installation
Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. - Page 4 2. Route the cables and connect the power & video cables, use the rubber plug to fill the gap of the mounting base. then secure the mounting base to the ceiling or wall with screws. 3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then tighten the mount lock to secure the viewing angle adjustments.
-
Page 5: Lan Configuration
LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. - Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 7: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. - Page 8 Image Sensor, Size 1/3” 4.0 Megapixel CMOS Image Sensor Resolution 4MP(2560 × 1440), 3MP(2304 × 1296), 1080P(1920 × 1080), 720P(1280 × 720), D1, CIF, 480 × 240 Min. Illumination 0.005 lux @F1.6, AGC ON; 0 lux with IR Lens 2.8mm Fixed Iris Lens Day / Night True Day/Night by ICR IR LEDs / IR Distance...
- Page 9 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNB4FLN-2 OPTIONAL MOUNT CONFIGURATIONS: 8.47” 6.43” VT-TJB08 VT-TPLMT VT-TCNMT Optional Junction box for Universal Pole Mount Universal Corner Mount Cable Management Adapter (VT-TJB08 Req) Adapter (VT-TJB08 Req)
- Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS TRANSCENDENT NVRs! TRANSCENDENT NVRs! A Standalone Solution with GEN. IV Advanced Analytic Support and NDAA Compliance! • Up to 12MP Recording • H.265S / H.265+ / H.265 / H.264 Video Compression •...
- Page 11 Also Consider Vitek NDAA Compliant Wireless Bridge Products to Reduce Costly Cable Installation! VT-WB1150, VT-WB2150, and VT-WB5900 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, High Speed Transmission, and Point-to-Multi- Point (P2MP) Topology VT-WB1150...
-
Page 12: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
