FEATURES
• 1/3" 2.1 MegaPixel CMOS Sensor
• HD-TVI & AHD/CVBS Video Output
• 2.8~12mm Varifocal Lens (VTC-TTAT2HR2V) or 3.6mm
Fixed Lens Options (VTC-TTAT2HR2F)
• 2 High Power Infrared LED's with 100' IR Range (VTC-
TTAT2HR2V) / 65' IR Range (VTC-TTAT2HR2F)
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
• IP66 Weather Resistance
• Supports Up The COAX Control
• Over 1500' HD Video Transmission (Depending on cable
characteristics and integrity)
• Optional Junction Box Mount Available (VT-TJB01) / Wall
Mount (VT-TWM03) Also Available for VTC-TTAT2HR2V
• 12VDC Operation

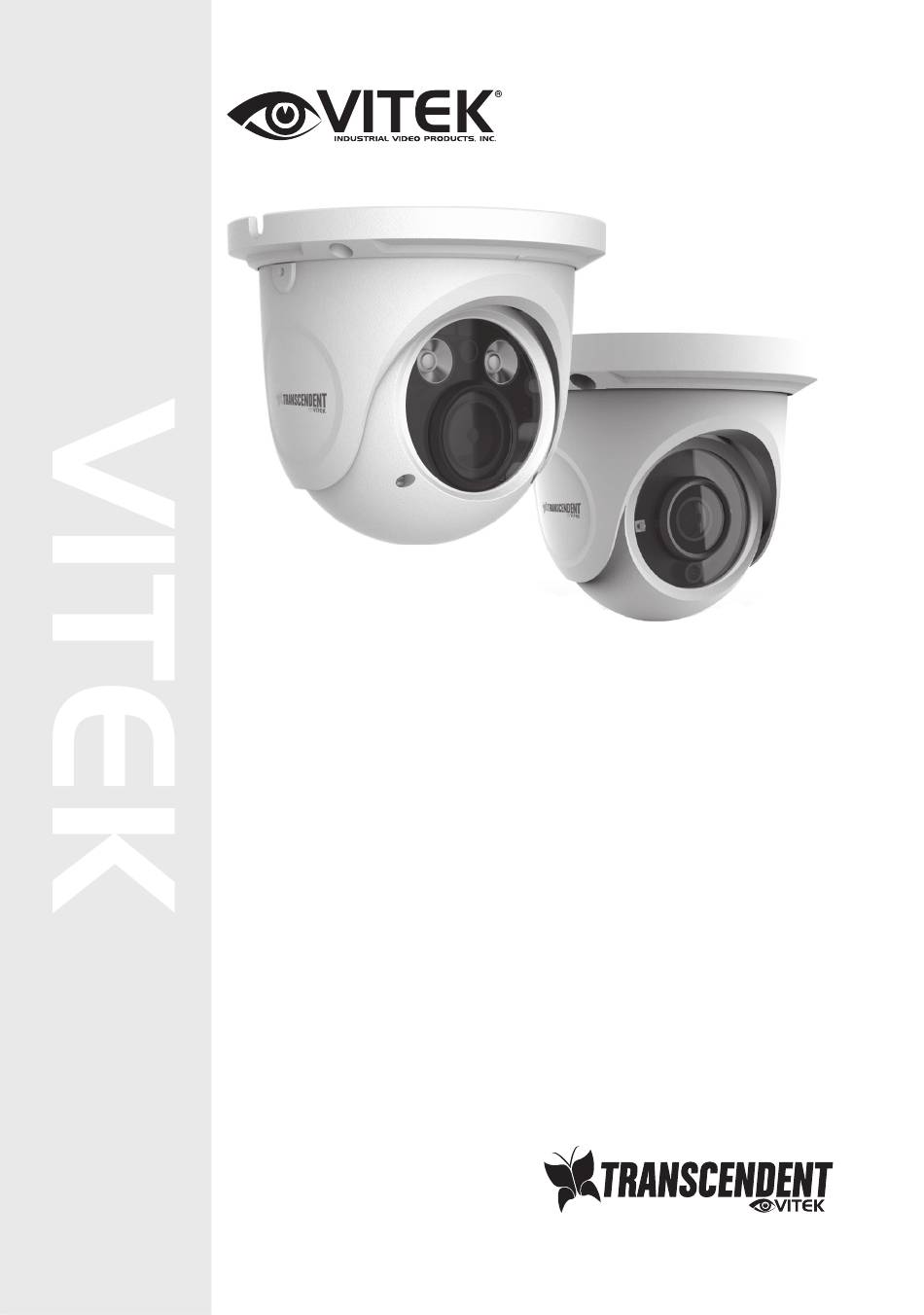

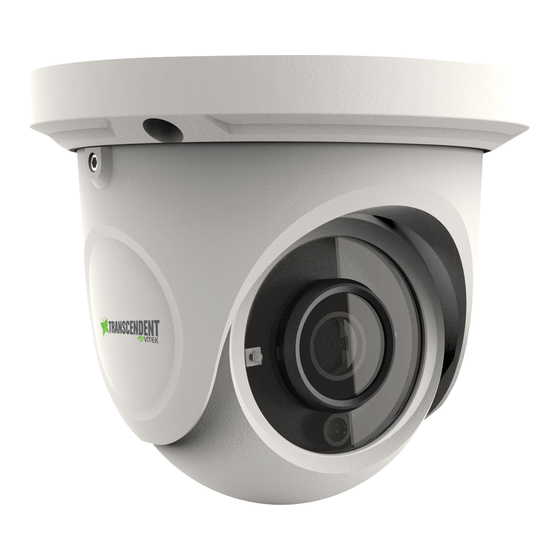

VTC-TTAT2HR2F
VTC-TTAT2HR2V
2.1 Megapixel Outdoor HD-TVI/
AHD/CVBS IR Turret Cameras
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-TTAT2HR2F
Summary of Contents for Vitek VTC-TTAT2HR2F
- Page 1 • 2.8~12mm Varifocal Lens (VTC-TTAT2HR2V) or 3.6mm Fixed Lens Options (VTC-TTAT2HR2F) • 2 High Power Infrared LED’s with 100’ IR Range (VTC- TTAT2HR2V) / 65’ IR Range (VTC-TTAT2HR2F) • Digital Wide Dynamic Range (D-WDR) • True Mechanical Day/Night function by ICR •...
-
Page 2: Safety Precaution
Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. -
Page 3: Components And Accessories
Components and Accessories Camera Hex Wrench User Manual Mounting Plate Screws Overview This camera series supports both fixed and varifocal lenses. Please note that the zoom and focus features mentioned below are not features of the fixed lens version. Lens Power Cable AHD/CVBS Switch Focus*... -
Page 4: Video Connection
Video Connection Connect the HD-TVI Video or AHD/CVBS video connector to a BNC patch cable, then to DVR. Monitor Video AHD/CVBS Switch: Switch to CVBS Mode: Press & Hold the Switch for 5 seconds Switch to AHD Mode: Press & Release the Switch quickly Power Connection Connect the power connecter to a 12 VDC power adaptor. -
Page 5: Installation
Installation Before you begin, please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the... - Page 6 Installation 4. Tighten the lock screws to secure the viewing angle adjustments. 5. Adjust the Focus and Zoom screws to achieve a clear image (if your camera has a fixed lens, please skip this step). 6. Carefully remove the protective film from the lens to complete the installation.
-
Page 7: Camera Osd Menu
OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. The following menu toolbar will pop up by right-clicking the mouse when using VITEK Transcendent Series HD-TVI DVRs. You will see the following interface by clicking the button. - Page 8 You can select the menu by clicking (U) or (D) key on the direction area. Click (L) or (R) key to select the menu on the left. The menu with arrow icon which means it has sub-menu. You can select the menu and click “Iris +” or call preset NO.95 to enter the sub-menu.
- Page 9 Detailed Specifications VTC-TTAT2HR2F VTC-TTAT2HR2V Image Sensor 1/3” 2.1 MegaPixel CMOS Sensor Resolution 1080p (2.1 MegaPixel) Effective Pixels 1920(H) x 1080(V) Signal System PAL/NTSC Video Output 1x HD-TVI (BNC) & 1 AHD/CVBS (BNC) Lens 3.6mm Fixed 2.8~12mm (Vari-Focal) Day/Night True Day/Night by ICR S/N Ratio >52dB (AGC OFF)
- Page 10 OPTIONAL ACCESSORIES FOR TRANSCENDENT CAMERAS VT-TR4K VT-TR4VPK Passive Video Balun Transmitter/ Video & Power Balun Receiver pair (2ea included) for Transmitter/Receiver pair (2ea TVI/AHD/CVI for distances from included) for TVI/AHD/CVI for 680 to 1400’. Built in Surge distances from 680 to 1400’. suppression and 60dB noise Built in Surge suppression and immunity...
-
Page 11: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning. - Page 12 Version 2.0 28492 CONSTELLATION ROAD VALENCIA, CA 91355 June 2016 WWW.VITEKCCTV.COM...
