FEATURES
• 1/2.9" 2.1 Megapixel Sony® Exmor™ Progressive Scan
CMOS Sensor
• 30fps live view @ 1920 x 1080p
• True Day/Night by IR Cut Filter
• HD-TVI / HD-CVI / AHD / 960H CVBS Video Output
(Selectable)
• Motorized 2.8~12mmMegaPixel IR Corrected Auto Focus
Varifocal Lens with CoC
• 4 Integrated High Power Dynamic IR LEDs with up to 165'
IR Range
• XD-DNR (2D-DNR + 3D-DNR) Noise Reduction
• Double Shutter Wide Dynamic Range (WDR)
• 16:9 Video format
• IP66 Weather Resistance
• Supports Up The COAX Control (CoC)
• Over 1500' HD Video Transmission (Depending on cable
characteristics and integrity)
• Optional Junction Box Mount Available (VT-TJB04)
• 12VDC / 24VAC Dual Voltage Operation
• 3 Year Warranty

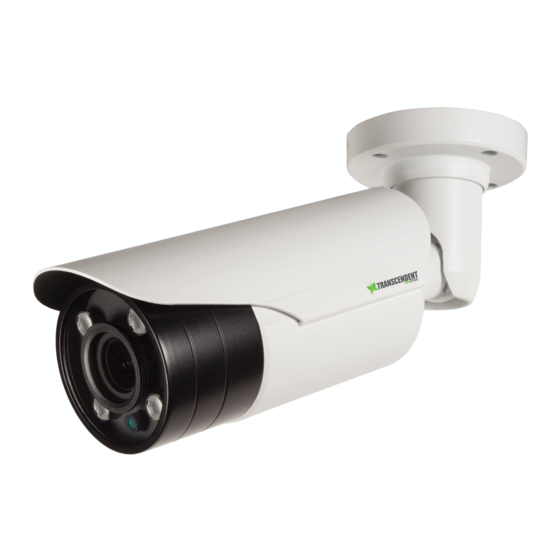

VTC-T4B4HR2MD
2.1 Megapixel 4-in-1 HD-TVI/
AHD/CVI/CVBS Motorized
Varifocal Bullet Camera with 4
High Power IR LED Illumination
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-T4B4HR2MD
Summary of Contents for Vitek VTC-T4B4HR2MD

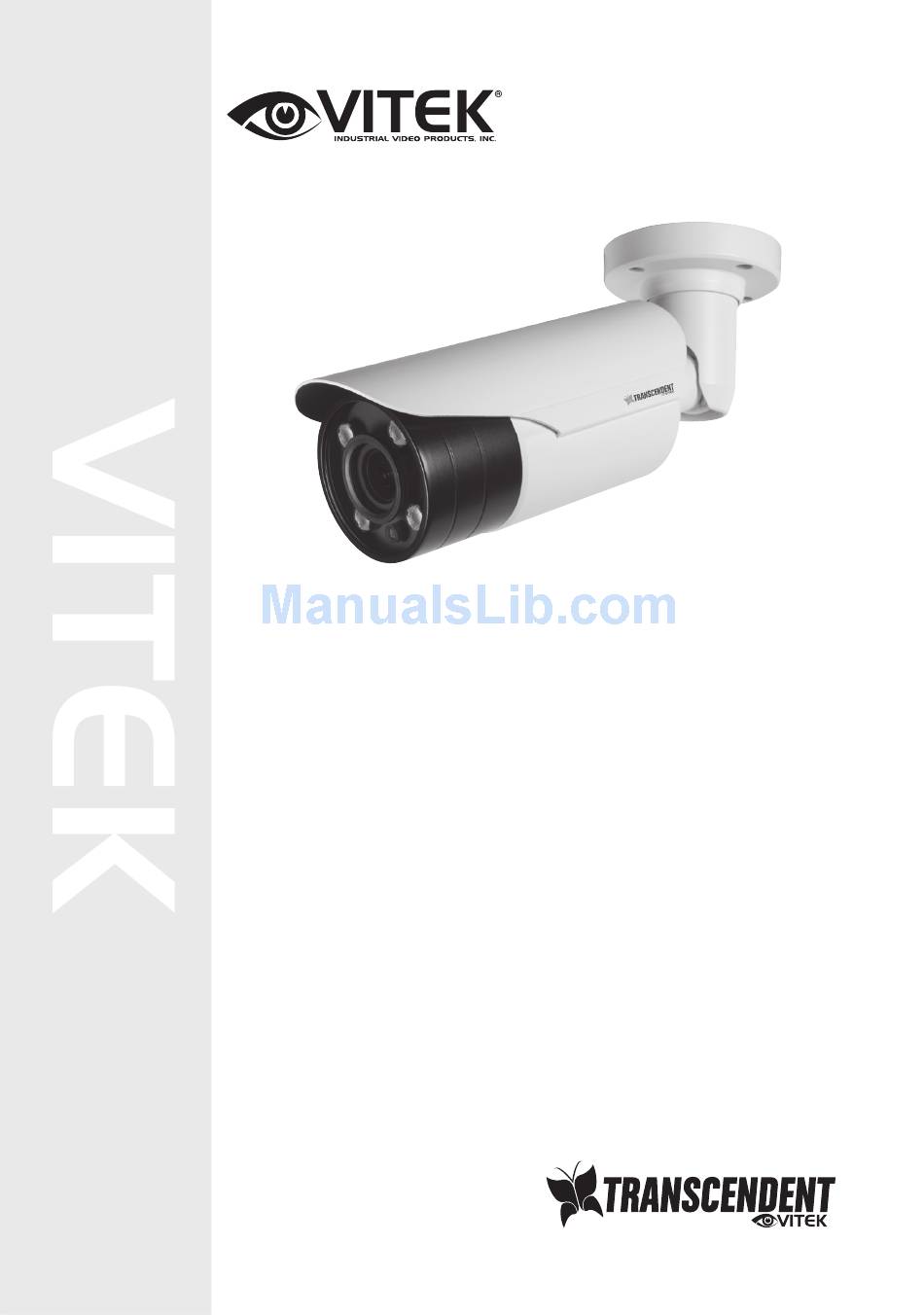

- Page 1 VTC-T4B4HR2MD 2.1 Megapixel 4-in-1 HD-TVI/ AHD/CVI/CVBS Motorized Varifocal Bullet Camera with 4 High Power IR LED Illumination FEATURES • 1/2.9” 2.1 Megapixel Sony® Exmor™ Progressive Scan CMOS Sensor • 30fps live view @ 1920 x 1080p • True Day/Night by IR Cut Filter •...
-
