IMPORTANT:
THESE INSTRUCTIONS ARE TO
REMAIN WITH THE HOMEOWNER
INSTALLATION
AND OPERATING
INSTRUCTIONS

SAFETY NOTICE

If this stove is not properly installed, a house
fire may result. For your safety, follow the
installation instructions.
building or fire officials about restrictions
and installation, inspection requirements
in your area.
©PACIFIC ENERGY FIREPLACE
200116-20
PRODUCTS LTD. - 2016
Contact local
NEO1.6 EU-En

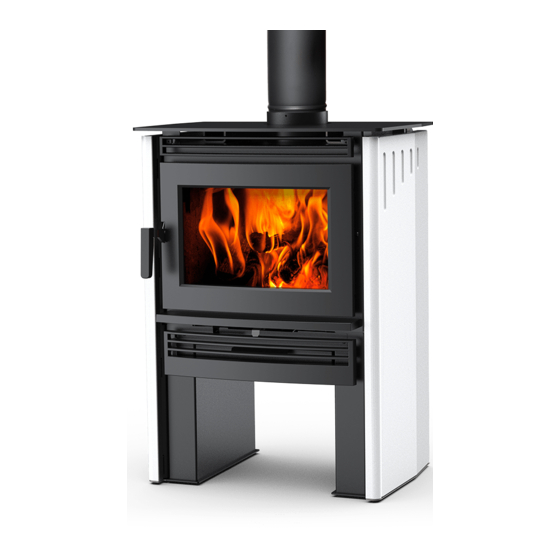

MODEL - NEO 1.6 EU
SERIES - A
SERIAL #
5055.700EU-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEO 1.6 EU A SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pacific energy NEO 1.6 EU A SERIES

Summary of Contents for Pacific energy NEO 1.6 EU A SERIES

  • Page 1: Safety Notice

    For your safety, follow the installation instructions. Contact local MODEL - NEO 1.6 EU building or fire officials about restrictions and installation, inspection requirements SERIES - A in your area. ©PACIFIC ENERGY FIREPLACE 200116-20 NEO1.6 EU-En 5055.700EU-A PRODUCTS LTD. - 2016...

  • Page 2: Table Of Contents

    PLEASE SAVE THESE INSTRUCTIONS This manual describes the installation and operation of the Pacific Energy, NEO 1.6 Freestanding wood heater. SAFETY NOTICE: If this stove is not properly installed, a house fire may result. For your safety, follow the instal- lation instructions.

  • Page 3: Label

    Label PACIFIC ENERGY FIREPLACE PRODUCTS LTD. 2975 ALLENBY RD., DUNCAN, BC, CANADA V9L 6V8 EN: 13240:2001 / A2:2005 NEO1.6, NEWCASTLE 1.6, NEOSTONE 1.6 Steel Freestanding room heater fired by Chauffe en acier indépendants uniquement Calentador de acero independiente de wood fuel only.

  • Page 4: Safety

    If smoke detectors have been previously installed, you may notice that they are operating more frequently. This may be due to curing of stove paint or fumes caused by accidentally leaving the fire door open. Do not disconnect the detectors. ©PACIFIC ENERGY FIREPLACE NEO 1.6 EU-En 200116-20...

  • Page 5: Operation

    CAUTION: Hot while in operation. Keep children, clothing and furniture away. Contact may cause skin burns. Your PACIFIC ENERGY stove is designed for many years of trouble free operation. Over firing the appliance will shorten the life of the product. Failure to recitify an over firing condition can be hazardous and may void the manufacturer's warranty.

  • Page 6: Normal Operation

    3. Inadequate draft may cause backpuffing into the room and plugging of the chimney. Smoke leaking into the room through appliance and chimney connector joints indicates inadequate draft. This will also cause excessive smoke temission. WARNING: DO NOT STORE WOOD BENEATH YOUR UNIT. ©PACIFIC ENERGY FIREPLACE NEO 1.6 EU-En 200116-20 PRODUCTS LTD.

  • Page 7: Ash Removal

    - Please contact your dealer if you experience any of the damage listed above. Continuing to operate your stove with broken parts may accelerate damage to other parts and may void your warranty NEO 1.6 EU-En 200116-20 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
  • Page 8 10. Instruct all members of your family on the safe operation of the stove. Ensure they have enough knowledge of the entire system if they are expected to operate it. Stress the section on chimney fires and the importance of following the steps outlined "In Case of Chimney Fire". ©PACIFIC ENERGY FIREPLACE NEO 1.6 EU-En 200116-20 PRODUCTS LTD.

  • Page 9: Baffle Removal

    Stove Dimensions FIG. #1 512mm 690mm 152mm 940mm 915mm NOTE: DIMENSION DOES NOT INCLUDE LEVELLING LEGS NEO 1.6 EU-En 200116-20 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 10: Assembly

    2) Engage the tabs in the panel into the slots in the panel mounting bracket. Fig. #3) Tabs 3) Attach the panel to the rear shield. Secure with two screws. Fig. #4 FIG. #4 rear mounting screws ©PACIFIC ENERGY FIREPLACE NEO 1.6 EU-En 200116-20 PRODUCTS LTD.

  • Page 11: Installation

    2. Clearances to combustible surfaces and materials are shown in Figure #5. Clearances may be reduced with various heat insulating materials. Consult local fire codes and authorities for approval. FIG. #5 200mm 200mm 355mm 400mm 400mm 400mm NEO 1.6 EU-En 200116-20 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 12: Floor Protector

    5. Install the remaining lengths of pipe one on top of the other to the finished height of the chimney connector and secure to each other. ©PACIFIC ENERGY FIREPLACE NEO 1.6 EU-En 200116-20 PRODUCTS LTD.

  • Page 13: Optional Blower

    Manual: To manually operate the blower, set the rocker switch to "Man" and set the speed switch to desired setting. This will bypass the sensing device and allow manual control of the blower. Switching from "Auto" to "Man" or selecting speed may be done anytime. NEO 1.6 EU-En 200116-20 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
  • Page 14 Hooded vent or 90 elbow turned down * 100mm diameter air inlet with rodent screen * If the crawl space is well ventilated it is not necessary to extend air inlet to outside ©PACIFIC ENERGY FIREPLACE NEO 1.6 EU-En 200116-20 PRODUCTS LTD.
  • Page 15 * 100mm diameter air inlet with rodent screen * If the crawl space is well ventilated it is not necessary to extend air inlet to outside Check local and national codes NEO 1.6 EU-En 200116-20 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 16: Troubleshooting

    Red ..RD Titanium.....TI 16 ..Ash System ........NE16.LGADA All parts may be ordered from your nearest Pacific Energy dealer. 17 ..Left Support, Black ......NE16.78115 Contact Pacific Energy for the location of the dealer nearest you. 17b ..Right Support, Black ......NE16.78125 18 ..

  • Page 17: Firebrick Installation

    3” X 4 1/2” X 1 1/4” (77 mm x 115 mm x 32 mm) 247.0 9” X 4 1/2” X 1 1/4” (230 mm x 115 mm x 32 mm) 5096.99 NEO 1.6 EU-En 200116-20 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
  • Page 18 ©PACIFIC ENERGY FIREPLACE NEO 1.6 EU-En 200116-20 PRODUCTS LTD.

  • Page 19: Warranty Information

    3 Year Comprehensive Pacific Energy will replace or repair any part found to be defective (parts and labor) for three years from the date of pur- chase. This coverage includes electrical components (blowers, speed controls and thermal switches).
  • Page 20 PACIFIC ENERGY FIREPLACE PRODUCTS LTD. 2975 Allenby Rd., Duncan, B.C. V9L 6V8 For technical support, please contact your retailer. Web site: http://www.pacificenergy.net Printed in Canada ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
