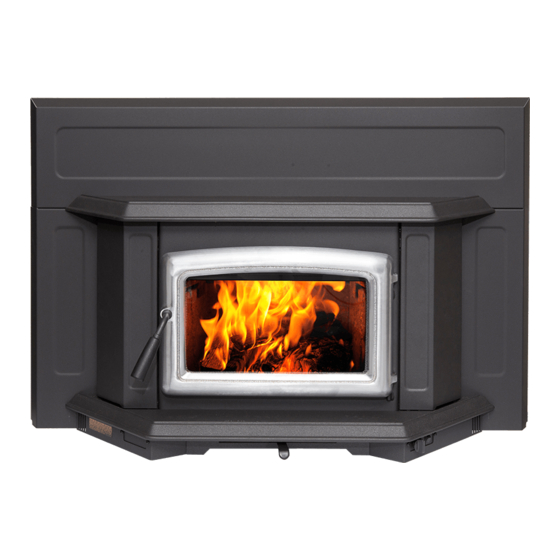

Pacific energy Super Insert DESIGN-D Installation And Operating Instructions Manual
Stove
Hide thumbs
Also See for Super Insert DESIGN-D:
Table of Contents
Advertisement
IMPORTANT:
THESE INSTRUCTIONS ARE TO
REMAIN WITH THE HOMEOWNER
SAFETY NOTICE
If this stove is not properly installed, a house
fire may result. For your safety, follow the
installation directions. Consult local building
inspector or officials about restrictions and
installation inspection requirements in your
area.
TESTED and LISTED
to ULC S628 / UL 1482
Meets the U.S. Environmental Protection
Agency's July 1990 Particulate Emission
Standards
300309-24
Super Insert
INSTALLATION
AND OPERATING
INSTRUCTIONS
MODEL:
SUPER INSERT
DESIGN-D
SPND.BODYA
5055.101.C
Advertisement
Table of Contents
Related Manuals for Pacific energy Super Insert DESIGN-D
Summary of Contents for Pacific energy Super Insert DESIGN-D
- Page 1 IMPORTANT: THESE INSTRUCTIONS ARE TO REMAIN WITH THE HOMEOWNER Super Insert SAFETY NOTICE INSTALLATION AND OPERATING If this stove is not properly installed, a house fire may result. For your safety, follow the INSTRUCTIONS installation directions. Consult local building inspector or officials about restrictions and installation inspection requirements in your area.
-
Page 2: Table Of Contents
Blower Operation ................... 15 Electrical Supply .................... 15 Maintenance ......................16 Baffle Removal ....................16 Replacement Parts ....................17 Appendix A ......................18 Understanding & Operating Your Pacific Energy Stove ........18 Troubleshooting ....................19 Label ......................23 SPND.BODYA 300309-24... -
Page 3: Safety
Safety Clearances READ ALL INSTRUCTIONS BEFORE INSTALLING AND Masonry or Factory Built Fireplace USING THIS APPLIANCE. The minimum required clearances to surrounding combustible We strongly recommend that smoke detectors be installed. materials when installed into a masonry or factory built If smoke detectors have been previously installed, you may fireplace are listed below and in figure #1. - Page 4 Fireplace hearth requirements:(Measured without the insert) The non- combustible fireplace hearth must be raised 2” above an adjacent combustible floor and extend 16” in front and 8” beyond each side of the existing fireplace opening. A non-combustible hearth that extends a minimum 23 1/2” in front of the fireplace opening may be flush to an adjacent combustible floor.
-
Page 5: Dimensions
Dimensions 42 5/8” 6 1/2” 8 1/8” 28 7/8” 19 9/16” 20 3/4” 9 1/2” 23 3/4” 21 1/2” 18” 28 1/8” 10” 21 1/8” 36” SPND.BODYA 300309-24... -
Page 6: Installation
Exception: Masonry or steel, including the damper plate, Pacific Energy highly recommends the use of a full may be removed from the smoke shelf and adjacent damper liner as the safest installation and providing optimum frame if necessary to accommodate a chimney liner, performance. -
Page 7: Full Flue Liner - (Required In Canada)
Full Flue Liner - (Required in Canada) Direct Flue Connection Fig. # 3 (USA Only) This fireplace insert must be installed with a continuous liner of 6” diameter extending from the fireplace insert to Mantel or the top of the chimney. The chimney liner must conform Chimney Top Facing to the class 3 requirements of CAN/ULC-S635, Standard... -
Page 8: Fan Speed Controller
Fan Speed Controller 4) Loosen the two bolts that secure the ash lip to the firebox, carefully lift up the ash lip and remove from the firebox. The fan speed controller is factory installed under the ash lip on the right hand side. If required it can be relocated to the left side by following the instructions below. - Page 9 7) Route cable from speed control to fan under the clips on 8) Remove Thermal switch from right hand fan mounting bracket the underside of the ash lip. Note wire positions.(Fig.13 & and secure to left hand fan mounting bracket. Fig.14) Fig.
-
Page 10: Surround Assembly And Installation
Surround Assembly and Fig. # 20 Installation Fig. # 21 Part F 1) Lay part A, B and C face down on a flat non-marring surface. Fasten together with 1/4" x 1/2" bolts and nuts provided through holes at points “D” (Fig. #19 and 22). Trim 2) Lift the surround assembly to the upright position and Retaining... - Page 11 10) Once the surround is fastened to the insert, in order to Fig. # 24 maximize heated air discharge efficiency, the surround can be pulled upward so that the fastening screws are at the lowest end of the surround securing flange slots. (Fig.27) 11) Push the entire appliance back until the surround assembly is in contact with the fireplace structure.
-
Page 12: Combustion Air
Fig. # 30 Combustion Air Consult local building codes regarding combustion air supply. Intake or combustion air can be supplied to the Insert in one of two ways: 1) Outside air (O/A) supply: Remove cover from ash clean out in existing fireplace. Place a rodent screen in place of the cover. -
Page 13: Operation
2) Adjust air control to “H” (high) position (pushed to the far left) and in just a few minutes, logs should begin Your Pacific Energy heater is designed for maximum overall burning. efficiency at a moderate firing rate. Overfiring is hazardous 3) After wood has charred, reset air control to desired and a waste of fuel. -
Page 14: More Wood, More Heat
other than for starting or preheating fresh fuel loads. dispersed, they should be retained in the closed container until all cinders have thoroughly cooled. Other waste should not be placed in this container! DO NOT OVERFIRE THIS HEATER: Attempts to achieve heat output rates that exceed heater design Creosote specifications can result in permanent damage to the... -
Page 15: Chimney Fires
chimney - A roaring sound - Vibration of the chimney Blower In Case of a Chimney Fire The Super Insert comes equipped with twin variable speed 1. Prepare to evacuate to ensure everyone’s safety. Have circulating air blowers. The blower system is thermostatically a well understood plan of action for evacuation. -
Page 16: Maintenance
INSULATION REMOVED. replacements. Baffle Assembly Removal 4. DOOR GASKET - The gasket used by Pacific Energy requires only light pressure to seal. This will prolong seal Remove retaining pin at the back top of the firebox, just life. It is important that the door seal be maintained in under the baffle. -
Page 17: Replacement Parts
18 ..Boost Manifold ..........4105 •{ Not sold separately NOT SHOWN Fig. # 33 PART REVISION 1 Parts may be ordered from your nearest Pacific Energy dealer. Contact Pacific Energy for the location of the dealer nearest you. SPND.BODYA 300309-24... -
Page 18: Appendix A
Appendix A Understanding & Operating Your Pacific Energy Stove The Pacific Energy line of woodstoves is a culmination burn. During this storage, heat is stored in the mass of years of research and development. Designed to of the unit and is later released slowly and evenly. As be efficient, clean-burning and user-friendly, this wood chars, active flaming will diminish. -
Page 19: Troubleshooting
Troubleshooting Problem Cause Cure Excessive Creosote 1) Wood is too wet - Use dry wood Buildup 2) Turning down air control - Do not turn down until: too soon a) there is a good bed of coals b) the wood is charred 3) Draft too low - Improper chimney height and/or diameter - Chimney plugged or restricted, check flue... - Page 20 NOTES: SPND.BODYA 300309-24...
- Page 21 NOTES: SPND.BODYA 300309-24...
- Page 22 NOTES: SPND.BODYA 300309-24...
-
Page 23: Label
Label The ceritfication label is located on the left side casing of the insert. CERTIFICATION LABEL SPND.BODYA 300309-24... - Page 24 PACIFIC ENERGY FIREPLACE PRODUCTS LTD. www.pacificenergy.net Technical Support: 1-250-748-1184 2975 Allenby Rd., Duncan, B.C. V9L 6V8 Printed in Canada SPND.BODYA 300309-24...
