IMPORTANT:
THESE INSTRUCTIONS ARE TO
REMAIN WITH THE HOMEOWNER
SAVE THESE INSTRUCTIONS
SAFETY NOTICE
If this stove is not properly installed, a house
fire may result. For your safety, follow the
installation instructions. Contact local
building or fire officials about restrictions and
installation inspection requirements in your
area.
Meets the Environmental Protection
Agency's 2020 Particulate Emission
Standards (Crib Wood).
Visit www.pacificenergy.net for the most recent version of this manual
230424-32
INSTALLATION
AND OPERATING
INSTRUCTIONS

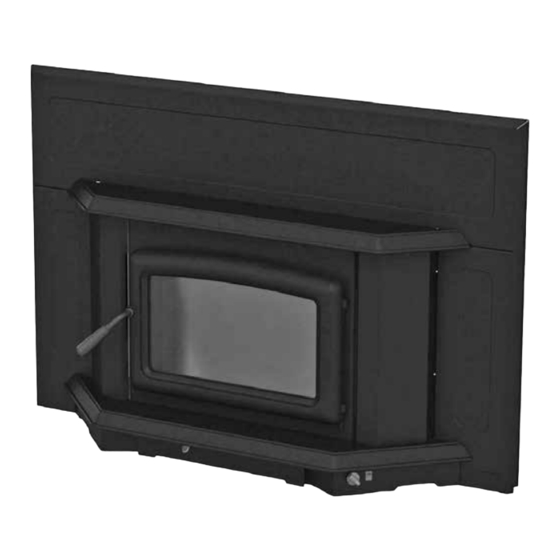

MODEL:
SUMMIT INSERT LE
SUMMIT INSERT LE
SERIAL #
100000089

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUMMIT INSERT LE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pacific energy SUMMIT INSERT LE

Summary of Contents for Pacific energy SUMMIT INSERT LE

  • Page 1 Meets the Environmental Protection Agency's 2020 Particulate Emission Standards (Crib Wood). MODEL: SUMMIT INSERT LE Visit www.pacificenergy.net for the most recent version of this manual 230424-32 SUMMIT INSERT LE 100000089...

  • Page 2: Table Of Contents

    TOUCH GLASS. PLEASE SAVE THESE INSTRUCTIONS This manual describes the installation and operation of the Pacific Energy, SUMMIT INSERT LE; Fireplace Insert wood heater. This heater meets the 2020 U.S. Environmental Protection Agency's crib wood emission limits for wood heaters sold after May 15, 2015. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 13,567 to 39,159 btu/hr.

  • Page 3: Rating Label

    Rating Label PLEASE SAVE THESE INSTRUCTIONS This manual describes the installation and operation of the Pacific Energy, SUMMIT INSERT LE Fireplace Insert wood heater. SAFETY NOTICE: This wood heater needs periodic inspection and repair for proper operation. It is against federal regulations to operate this wood heater in a manner inconsistent with the operating instructions in this manual.

  • Page 4: Safety

    Chimney fires are easy to detect; they usually involve one or more of the following: • Flames and sparks shooting out of the top of the chimney • A roaring sound • Vibration of the chimney 100000089 SUMMIT INSERT LE 230424-32...

  • Page 5: To Avoid A Chimney Fire

    If the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in closed container until all cinders have thoroughly cooled. Other waste should not be placed in this container. SUMMIT INSERT LE 230424-32 100000089...

  • Page 6: Operation

    It is damp if it turns black and lights within three minutes. If it sizzles, hisses and blackens without igniting in five minutes it is soaked and should not be burnt. 100000089 SUMMIT INSERT LE 230424-32...

  • Page 7: Lighting A Fire

    Attempts to achieve heat output rates that exceed heater design specifications can result in permanent damage to the heater and chimney. A glowing red, top or vent pipe are indications of overfiring. Failure to rectify an over firing condition can be hazardous and may void the manufacturer's warranty. SUMMIT INSERT LE 230424-32 100000089...

  • Page 8: Convection Blower Operation

    Leave an ash bed approximately 1" (25 mm) deep on the firebox bottom to help maintain a hot charcoal bed. See section "Disposal of Ashes" on page 5. 100000089 SUMMIT INSERT LE 230424-32...

  • Page 9: Maintenance

    DOOR GASKETS - The gasket used by Pacific Energy (7/8"(22mm) medium density fiberglass rope) requires only light pressure to seal. This will prolong seal life. It is important that the door seal be maintained in good condition. Periodically inspect seals and replace if necessary.

  • Page 10: Maintenance Checks

    Tilt baffle sideways to drop down and remove from firebox. Inspect gasket between baffle and supply tube. If necessary, replace with gasket part number 80000365, available from your Pacific Energy dealer. Re-install baffle assembly in reverse order. The two side pieces of insulation must be tight against the side rails.

  • Page 11: Dimensions

    570mm 22” 560mm ” 450mm ” ” 270mm 705mm ” 650mm ” 315mm 42” 1.067m Figure 2: Summit Insert LE dimensions. SURROUND DIMENSIONS REGULAR OVERSIZED SURROUND SURROUND 50 3/8” 54 3/8" 32 1/4” 34 1/4" SUMMIT INSERT LE 230424-32 100000089...

  • Page 12: Minimum Fireplace And Hearth Dimensions

    16” (USA) and 18” (CANADA) from the firing side (Door Glass) and 8” to the sides of the unit (Figure 4). Consult CAN/CSA-B365 Installation Code for Solid-Fuel-Burning appliances and equipment in Canada, and N.F.P.A. 211 Standard for chimneys, fireplaces, vents and Solid-Fuel-Burning appliances in USA. 100000089 SUMMIT INSERT LE 230424-32...
  • Page 13 3”/ 76mm Raised Hearth Figure 4: OPTION A - SIN LE Ember protection. CAN: 24” / 610mm USA: 22” 18” / 406mm USA: 16” Extended Masonry Hearth Figure 5: OPTION B - SIN LE Ember protection. SUMMIT INSERT LE 230424-32 100000089...

  • Page 14: Clearances

    406mm 3” 8” 76mm 203mm Figure 6: SUMMIT Insert LE Clearances.ai Minimum Clearances to Combustibles (Measured From Insert Body) Adjacent Sidewall ..............8 in.(203 mm.) Side Facing (Max 1.5 in. deep) ..........8 in.(203 mm.) Mantel .................. 15 in.(381 mm.) Mantel Facing ..............

  • Page 15: Installation

    National Building Code. SUMMIT INSERT LE 230424-32 100000089...
  • Page 16 10. Install the surround See "Surround Assembly and Installation" on page 20, Re-Install the top and Blower covers in the reverse order they were removed. Figure 7: Full flue liner. 100000089 SUMMIT INSERT LE 230424-32...
  • Page 17 Direct Flue Connection (USA only) Pacific Energy highly recommends the use of a full liner as the safest installation and to provide optimum performance. When connected to a full liner, the Insert is able to draft correctly and will prevent problems such as difficult start-ups and smoking out the door.

  • Page 18: Combustion Air

    Replace the center cover and tighten screws (Figure 9). Combustion Air will be drawn from the room through the front of the unit. Figure 9: Room air cover. SCREWS COVER BOX 100000089 SUMMIT INSERT LE 230424-32...

  • Page 19: Electrical Supply

    2. Lift up on the panel to release the catches and pull towards you. Lift the cover up, and under the Top and then pull out from the bottom to remove it (Figure 12). cover mounting screw Figure 11: Front cover screw location. Figure 12: Panel removal. SUMMIT INSERT LE 230424-32 100000089...

  • Page 20: Surround Assembly And Installation

    8. Re-install the decorative top by aligning the wing bolts in the slots and pushing it back gently against the surround. Tighten the Wing Bolts. 9. Install the Fan Cover panels, the rear tabs use the same slots as the surround. 100000089 SUMMIT INSERT LE 230424-32...

  • Page 21: Fan Speed Controller Relocation

    Figure 18: Bolts securing ash lip to firebox. Wire Support Tab Screw Figure 17: Removing speed control assy. Figure 19: Wire Guides. SUMMIT INSERT LE 230424-32 100000089...
  • Page 22 Ensure that the power cable is correctly routed through the surround and it is not touching the firebox side. Wire placement is important to prevent damage to wires. Figure 22: Removing thermal switch. Figure 23: Relocating thermal switch to left side. 100000089 SUMMIT INSERT LE 230424-32...

  • Page 23: Troubleshooting

    - Check outside air supply for obstruction - Check that room air cover is removed 2. Draft too low - Chimney plugged or restricted, inspect and clean - Chimney oversized or otherwise unsuitable, - Consult Dealer SUMMIT INSERT LE 230424-32 100000089...

  • Page 24: Firebrick Installation

    Firebrick Installation Figure 24: Summit Insert LE Brick Pack. ITEM SIZE 19pcs......9” X 4 1/2” X 1 1/4” 1pc........7 1/4” X 4 1/2” X 1 1/4” 2pcs......9” X 4 1/2” X 1 1/4” with Corner Cut Note: There will be extra bricks due to the "Brick Pack" being universal to several models of the Summit line of woodstoves.
  • Page 25 3. Place five full bricks along the front row; Eliminating any gaps between the bricks by shifting the bricks towards the center of the firebox (Figure 26). Figure 25: Back row of bricks Summit Insert LE. Figure 26: Floor bricks - Summit Insert LE.

  • Page 26: Parts Diagram

    ITEM ..DESCRIPTION ................... PART # 1....Bay Top, Cast, Summit Insert, (c/w Washers and Nuts) ....80000334 2....Fan Cover, Summit Insert LE ............. 80002258 3....Blower Assy, c/w brackets, Latch Side, ........... 80002257 4....Blower Only, Latch Side ..............80000904 6....
  • Page 27 All parts may be ordered from your nearest Pacific Energy dealer. Contact Pacific Energy for the location of the dealer nearest you. SUMMIT INSERT LE 230424-32 100000089...
  • Page 28 IF WARRANTY SERVICE IS NEEDED: 1. If you discover a problem that you believe is covered by this warranty, report it to your Pacific Energy Fireplace Products dealer, giving them proof of purchase, the purchase date, and the model name and serial number. 2. Pacific Energy Fireplace Products Ltd.
  • Page 29 SUMMIT INSERT LE 230424-32 100000089...
  • Page 30 100000089 SUMMIT INSERT LE 230424-32...
  • Page 31 SUMMIT INSERT LE 230424-32 100000089...
  • Page 32 © 2023 Copyright Pacific Energy Fireplace Products LTD. Reproduction, adaptation, or translation without prior written permission is prohibited except as allowed under the copyright laws. For Technical Support please contact your dealer Web site: http://www.pacificenergy.net 2975 Allenby Rd., Duncan, B.C. V9L 6V8...
