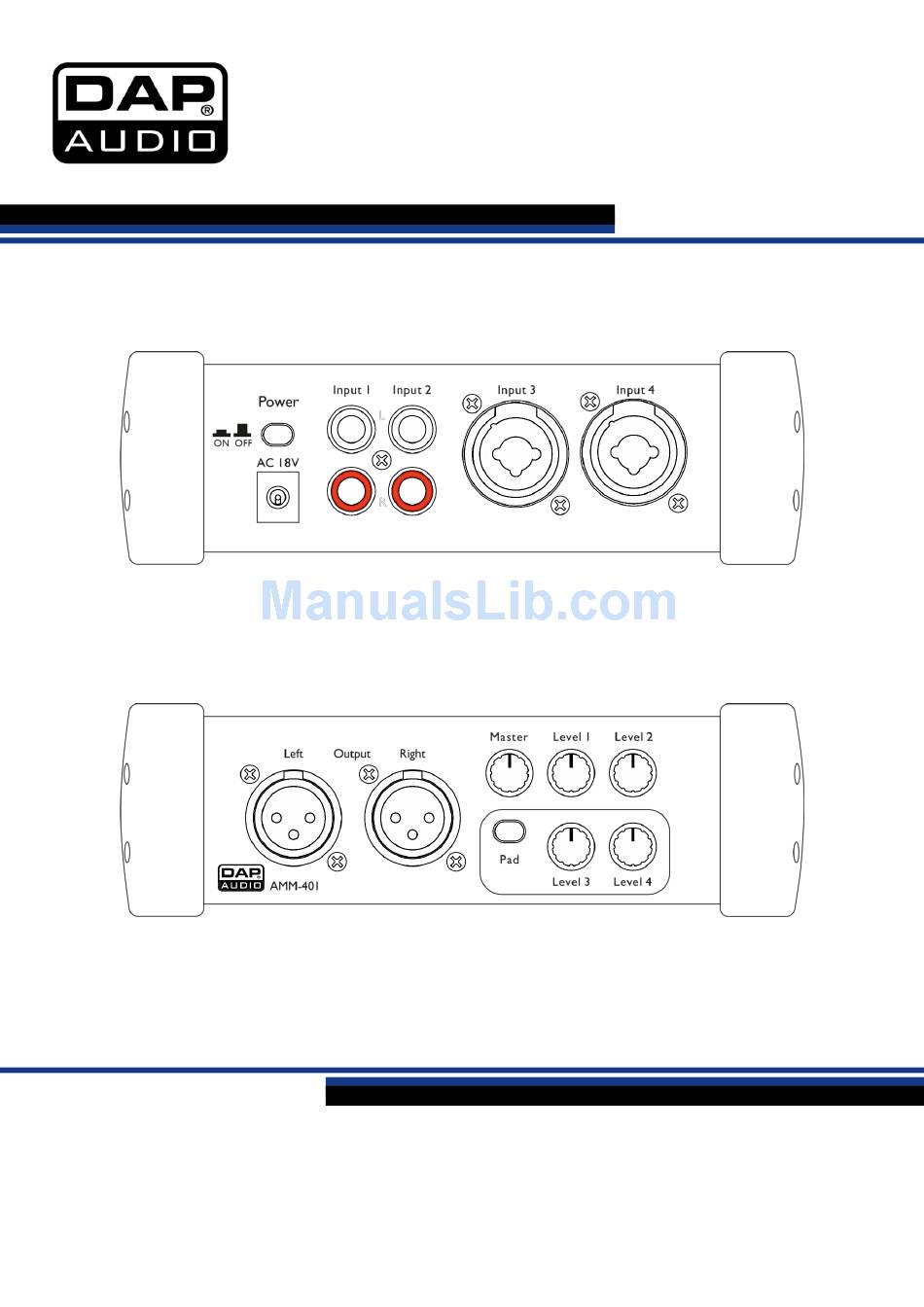

- Page 1 MANUAL ENGLISH AMM-401 Ordercode: D1532 4 Channel Active Mixer Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

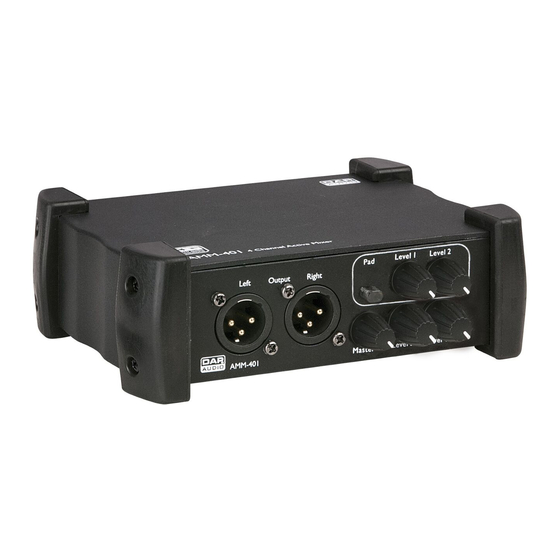

- Page 2 Only use the supplied DAP audio adapter. Description The AMM-401 is a 4 channel active mixer in a very compact housing. An ideal audio tool for sound engineers or musicians that often need to improvise. It can also be helpful to extend an USB audio interface with some extra inputs.
- Page 3 AMM-401 4 Channel Active Mixer Connection Example D1532...
-
Page 4: Specifications
AMM-401 4 Channel Active Mixer Dimensions Specifications Frequency Response: 20Hz-20KHz Inputs: RCA, XLR/Jack Combo Outputs: XLR male Input Impedance line: 1MOhm Input Impedance: 50 kOhm Output Impedance: 12 KOhm Power supply: 18V AC (adapter included) Dimensions: 53x158x135 mm (HxWxD) Weight: 0,7 Kg ©2013 DAP Audio...
