BCM MX57QM User's Quick Start Card

BCM MX57QM User's Quick Start Card

Intel core i3, i5, i7 mobile socket 989 arrandale processors support
Hide thumbs Also See for MX57QM:

Advertisement

Socket 989 Arrandale Processors Support
User's Quick Start Card

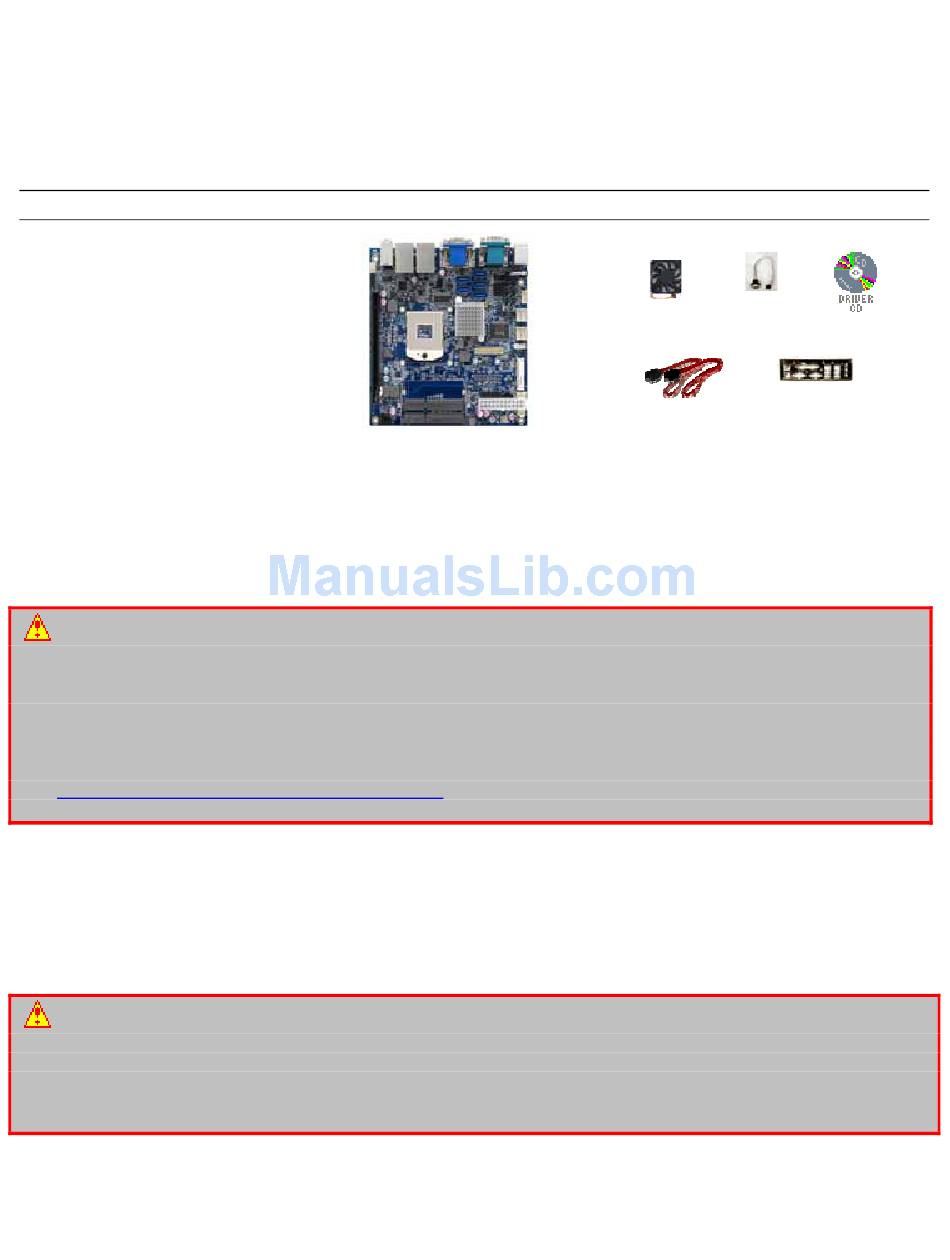

Inspect the Package:
One

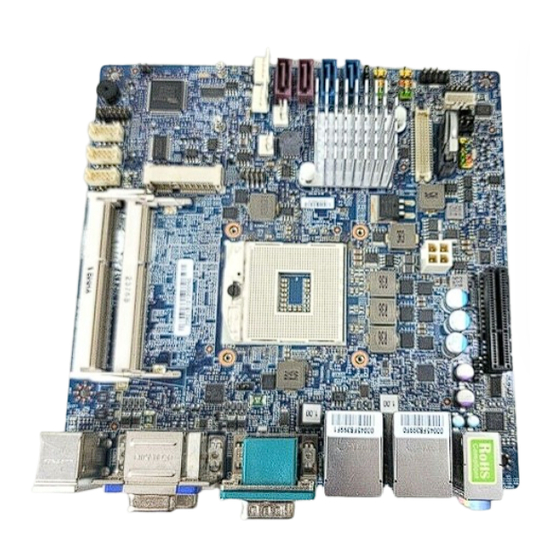

MX57QM Motherboard
One
Standard I/O Shield
One
CPU Cooler
Two
COM Port Cables
Two
SATA Cables
One
Driver CD
One User's Quick Start Card
Responsibility:
This manual is provided "As-Is" with no warranties of any kind, expressed or implied, including, but not limited to the implied
warranties or conditions of this product's fitness for any particular purpose. In no event shall we be liable for any loss of
profits, loss of business, loss of data, interruption of business, or indirect, special, incidental, or consequential damages of
any kind, even the possibility of such damages arising from any defect or error in this manual or product. We reserve the
right to modify and update the user manual without prior notice.
WARNING: CMOS Battery Damage
Replace your system's CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell (or equivalent) battery
type to avoid risk of personal injury or physical damage to your equipment. Improper installation might cause battery to
explode. Always dispose of used batteries according to the manufacturer's instructions, or as required by the local
ordinance (where applicable). The damage due to not following this warning will void your motherboard's manufacturer
warranty.
Perchlorate Material- Special Handling May Apply.
See
http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
Additional Information:
Additional information on setting this board up can be found in the User's Manual in the provided CD or DVD ROM. The
Online User's Manual and FAQ/Knowledge Base can be found on our website by visiting our website:
http://www.bcmcom.com. If your question is not answered in our FAQ/Knowledge Base, visit our forums and post your
messages or submit a new FAQ through FAQ Submittal form for us to add your question in our FAQ with our answer.
ATTENTION: Incorrect BIOS Setup
If you do not know how to handle BIOS setup or how to set it up properly, it is strongly advisable that you do not modify any
of the settings than otherwise instructed in the User's Quick Start Card. Even a seemingly small incorrect adjustment or
modification in the BIOS setup can render your system unstable or unusable. Incorrect BIOS setup is not covered by your
motherboard's manufacturer warranty. Try Clear CMOS information when system does not boot after BIOS settings
change.
MX57QM
Intel
Core™ i3, i5, i7 Mobile
®
Version 1.1
MX57QM
http://www.bcmcom.com
CPU Cooler
1
COM Port
Cables
I/O Shield

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX57QM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BCM MX57QM

  • Page 1 Intel Core™ i3, i5, i7 Mobile ® Socket 989 Arrandale Processors Support User’s Quick Start Card http://www.bcmcom.com Version 1.1 Inspect the Package: MX57QM Motherboard Standard I/O Shield COM Port CPU Cooler CPU Cooler Cables COM Port Cables SATA Cables Driver CD One User’s Quick Start Card...
  • Page 2 WARNING: Electrostatic Sensitive Device (ESD) Static electricity can easily damage your motherboard and will void your motherboard warranty. Keep the motherboard and other system components in their anti-static packaging until you are ready to install them. Touch a grounded surface before you remove any system component from its protective anti-static packaging.
  • Page 3: Connectors And Headers

    Connectors & Headers Label Function DIMM1 DDR3 Memory SO-DIMM Socket DIMM2 DDR3 Memory SO-DIMM Socket CPU_FAN1 CPU FAN Wafer CHA_FAN1 SYSTEM FAN Wafer MPCIE1 PCIE x 1 Slot IrDA Pin Header LVDS1 LVDS Panel Pin Header Panel Backlight Wafer ATXPWR1 24-pin ATX Power Input Connector Debug port Connector COM2...
  • Page 4: Internal Connector Pin Assignment

    Internal Connector Pin Assignment CPU_FAN1 CPU FAN Wafer Signal +12V FAN_CPU_TACH FAN_CPU_CTRL Pitch: 2.54mm WAFER CHA_FAN1 SYSTEM FAN Wafer Signal +12V HW_FANIN1 Pitch: 2.54mm WAFER IrDA remote control Wafer Signal Name IRRX IRTX Pitch:2.54mm SATA1, SATA2, SATA3, SATA4, SATA5 Serial ATA Connector Signal Name USB1,USB2 USB Pin Header...
  • Page 5 COM2,COM3,COM4,COM5,COM6 RS-232 Box Header Signal DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready GND, ground DSR, Data set ready RTS, Request to send CTS, Clear to send RI, Ring indicator Pitch:2.0mm WAFER Front Panel 1 Pin Header Signal Signal HLED...
  • Page 6 AMP_R1 Audio AMP Right Output Wafer Signal Name Speaker+ Speaker- Pitch:2.0mm WAFER AMP_L1 Audio AMP Left Output Wafer Signal Name Speaker+ Speaker- Pitch:2.0mm WAFER SPDIF1 S/PDIF Pin Header Signal Name S/PDIF In S/PDIF Out Pitch:2.54mm DIO1 Digital Input / Digital Output Pin Header Signal Signal DIP 18P 2R MALE STRAIGHT TYPE Pitch:2.54mm...
  • Page 7 LVDS1 Channel 1 LVDS Connector Signal Name Signal Name +3.3V +3.3V DDC_CLK DDC_DATA LVDS0_DATA1 LVDS0_DATA0 LVDS0_DATA#1 LVDS0_DATA#0 LVDS0_DATA3 LVDS0_DATA2 LVDS0_DATA#3 LVDS0_DATA#2 LVDS1_DATA1 LVDS1_DATA0 LVDS1_DATA#1 LVDS1_DATA#0 LVDS1_DATA3 LVDS1_DATA2 LVDS1_DATA#3 LVDS1_DATA#2 LVDS1_CLK LVDS0_CLK LVDS1_CLK# LVDS0_CLK# +12V +12V Pitch:1.25mm LVDS Backlight Inverter Wafer Signal Name Backlight Control Backlight Power...
  • Page 8: Rear Panel Connector List

    Rear Panel Connector List AUDIO1 Audio Phone Jack Signal Name BLUE LINE IN GREEN LINE OUT PINK MIC IN AUDIO JACK*3 DIP Vertical LAN1, LAN2 RJ-45 + USB Port-0&1 Connector Signal Signal Yellow LED Green LED# Orange LED# USB_PWR USB_N0 USB_P0 USB_PWR USB_N1...
  • Page 9 Hdmi1 Connector Signal Name Signal Name TMD_DATA2+ TMD_DATA2- TMD_DATA1+ TMD_DATA1- TMD_DATA0+ TMD_DATA0- HDMI_TCLP HDMI_TCLN DDC_CLK DDC_DATA HPDET HDMI right angle PS-KBMS1 Internal PS/2 Keyboard & Mouse Signal Name Signal Name KB_DATA KB_PWR KB_CLK MS_DATA KB_PWR MS_CLK DIP 6/6P MH11061-P36-4F 90D(F) Kb/Ms...
  • Page 10: Jumper Settings

    Jumper Settings PCIE_JP1 Mini PCIE Version Selection Jumper Status 1-2 (Default) MPCIE Rev1.1 MPCIE Rev1.2 Pitch: 2.0mm COMS1 Clear CMOS Selection Jumper Status Open (Default) Normal Operation Short Clear CMOS Pitch: 2.54mm Backlight Enable Selection Jumper Status 1-2 (Default) High Active Low Active Pitch: 2.0mm Backlight Power Selection...
  • Page 11: Motherboard Layout

    Motherboard Layout: LAN_USB2 PS2 KB/MS COM1 LINE-IN LAN_USB1 LINE-OUT HDMI SATA1-5 USB1, 2 SPDIF1 J8, J7 AMP_R1 AMP_L1 J6, 10 J11, J9 SPI_CN1 COMS1 COM 2 PCIE1 COM 3 COM 4 CPU SOCKET COM 5 (BOTTOM SIDE) COM 6 JBKL1 JLVDS1 MPCIE X1 DIO1...
  • Page 12: Cpu Installation

    CPU Installation This processor is intended to be professionally installed. Take proper electrostatics discharge (ESD) precautions such as using appropriate ground strips, gloves, and ESD mats. • Insert CPU into CPU socket and turn the screw to the lock position. Lock Unlock Gold triangular...
