IMPORTANT:
THESE INSTRUCTIONS ARE TO
REMAIN WITH THE HOMEOWNER

SAFETY NOTICE

If this stove is not properly installed, a house
fi re may result. For your safety, follow the
installation instructions.
building or fi re officials about restrictions
and installation inspection requirements in
your area.
TESTED and LISTED to CAN/ULC S627
AND UL 1482
Meets the Environmental Protection
Agency's May 2015 Particulate Emission
Standards
©PACIFIC ENERGY FIREPLACE
040515-24
PRODUCTS LTD. - 2014
Contact local
NEO16
INSTALLATION
AND OPERATING
INSTRUCTIONS
MODEL - NEO 1.6
SERIES - A
SERIAL #
5055.700

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEO 1.6 and is the answer not in the manual?

Questions and answers

Jeff Pearsall
February 15, 2025

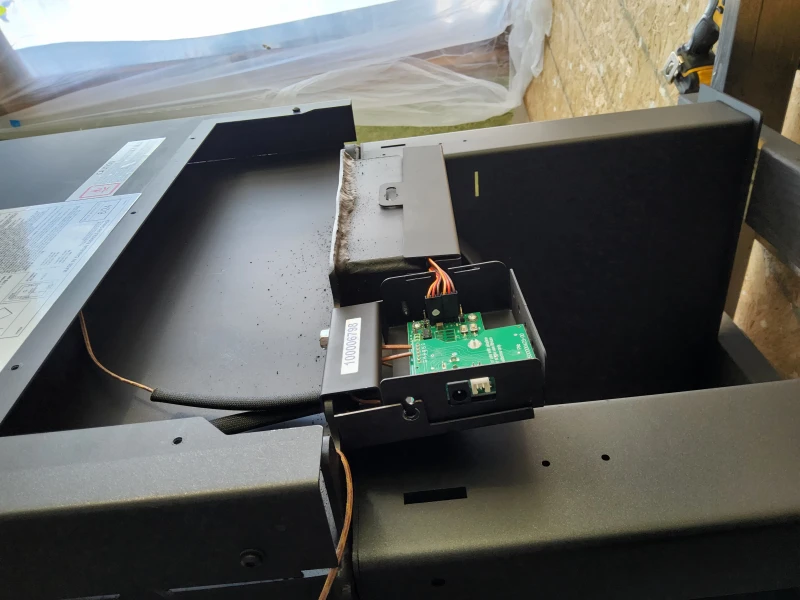

What is the function of the thermocouple and control boards on my Neo1.6Le2? They are unrelated to the blower assembly that I bought.
