Chapter 2 Overview
Administration and maintenance tools
R2MFC MBM configuration involves the following:
•
Internal link configuration for the PRI internal link to the BCM. The internal link uses preset
characteristics and therefore does not require localization.
•
External link configuration of the MFC-R2 E1 the external interface to public network. The
external link allows for localization in different countries.
External link configuration is performed using the DIP switches on the front of the R2MFC MBM
or by using the CLI, which is accessed through a serial port on the faceplate of the R2MFC MBM.
Internal link configuration is performed using either Element Manager or Unified Manager. Refer
to
"Configuring the R2MFC MBM" on page 45
tools.
R2MFC MBM faceplate elements
The faceplate of the R2MFC MBM consists of the following elements:
•
"System Status LEDs" on page 23
•
"Config DIP switches" on page 23
•
"RS232 port" on page 24
•
"E1 Status LEDs" on page 24
•
"Bantam jacks" on page 24
•
"BNC and RJ-48 connectors" on page 24
Figure 2
illustrates the placement of these elements.

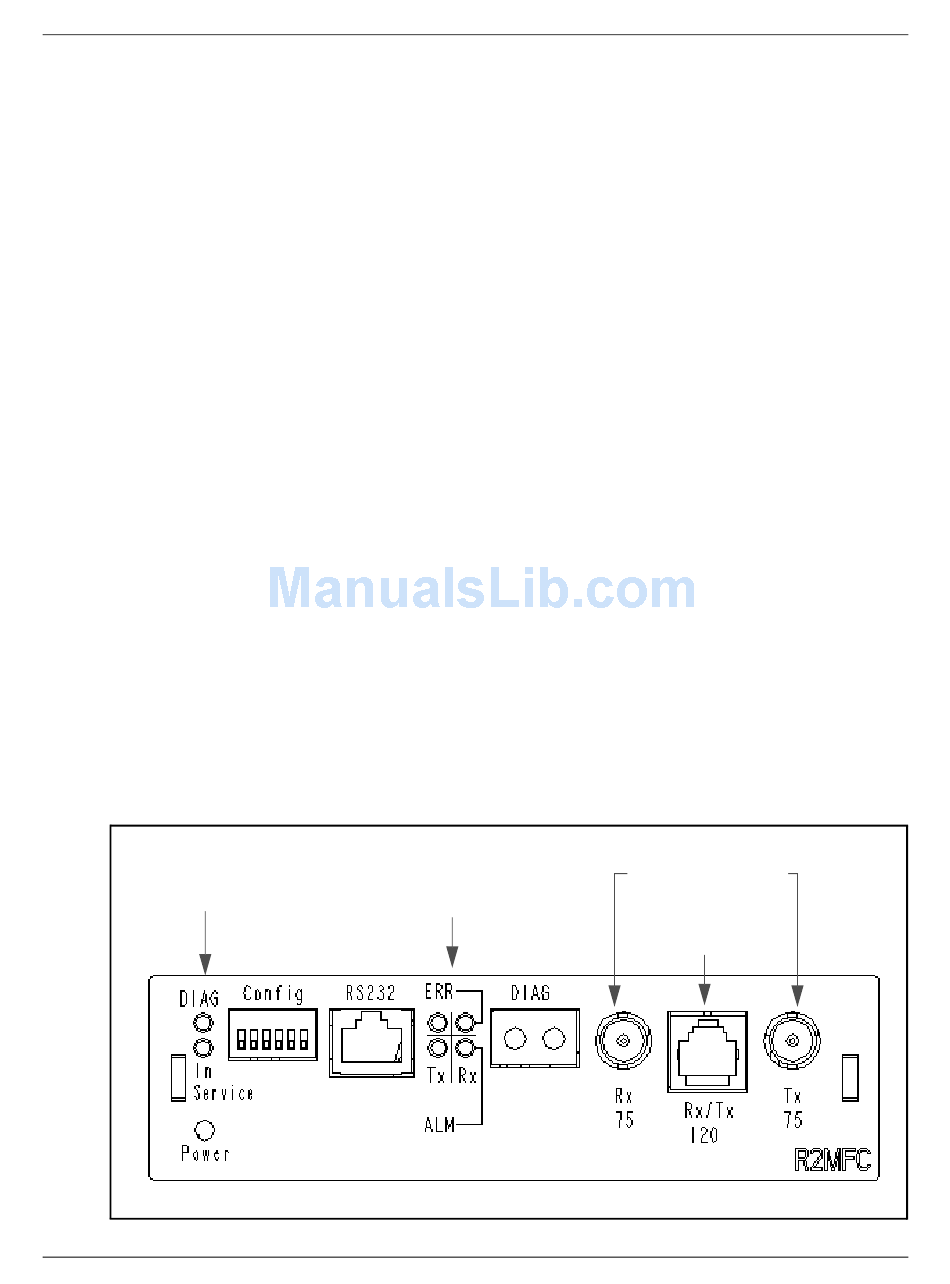

Figure 2 R2MFC MBM faceplate
MBM status
3 LEDS
NN40010-300
DIP
switches
RJ-45
for information on how to use the configuration
E1 status
4 LEDS
Bantam
jacks
75 Ω E1 BNC
120 Ω E1
RJ-48
