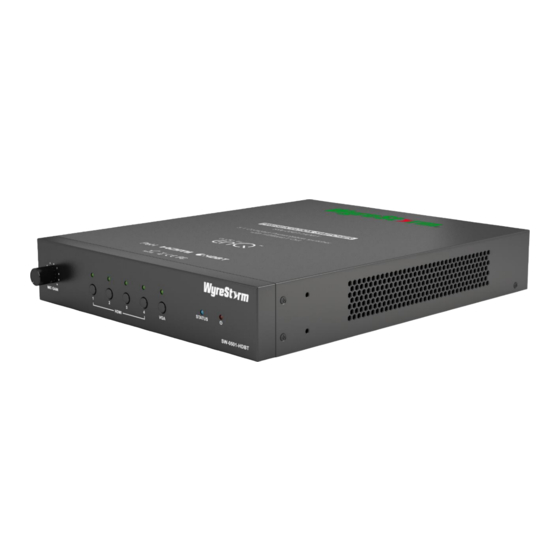

SW-0501-HDBT
5x1 Presentation Switcher/Scaler with Mic Input | CEC Control (1080p to 100m/328ft)

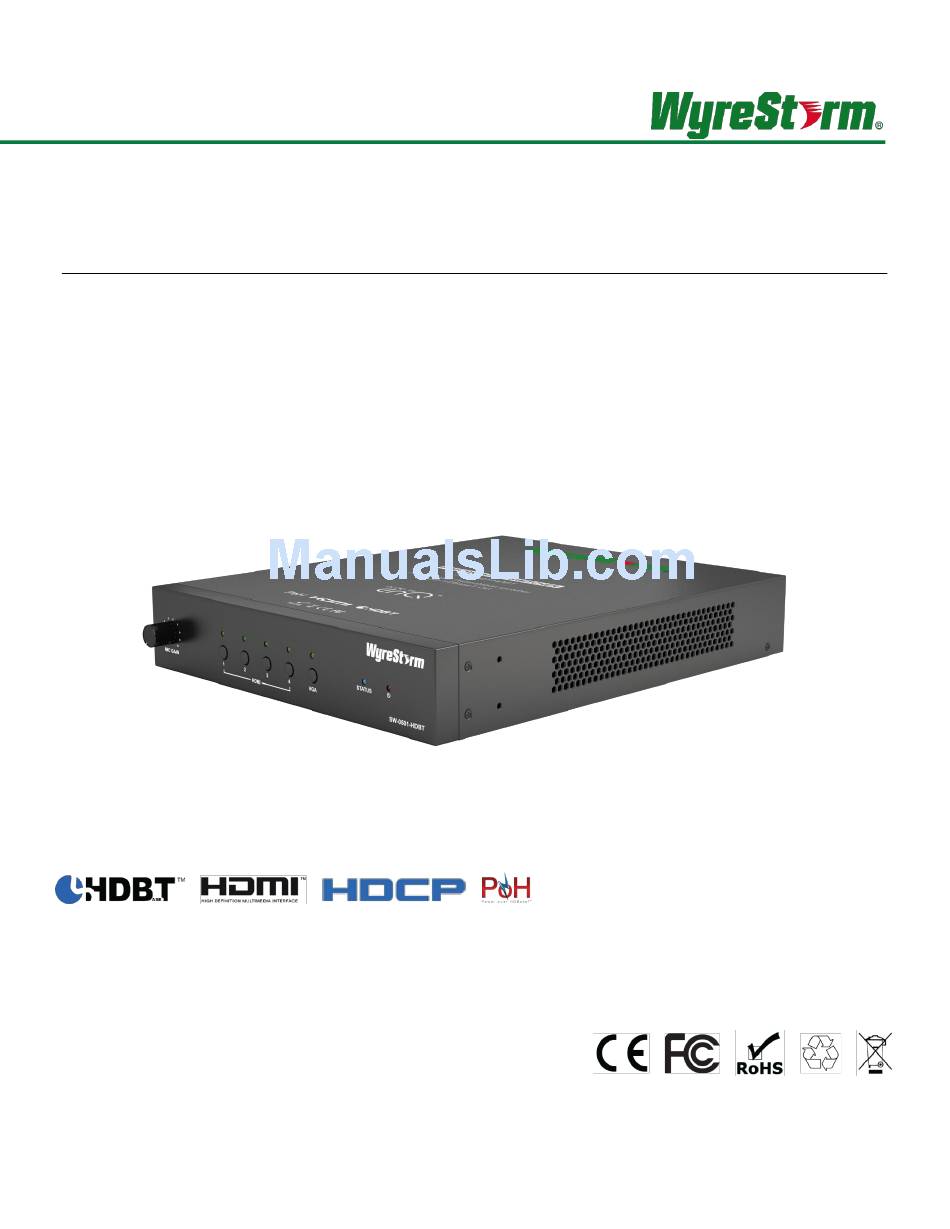

Installation Guide
Thank you for choosing this WyreStorm product.
Please read these instructions carefully before installing to avoid complications later.
Copyright © 2015 WyreStorm Technologies |
wyrestorm.com
Advertisement
Table of Contents
Related Manuals for Wyrestorm SW-0501-HDBT
Summary of Contents for Wyrestorm SW-0501-HDBT
-
Page 1: Installation Guide
SW-0501-HDBT 5x1 Presentation Switcher/Scaler with Mic Input | CEC Control (1080p to 100m/328ft) Installation Guide Thank you for choosing this WyreStorm product. Please read these instructions carefully before installing to avoid complications later. Copyright © 2015 WyreStorm Technologies | wyrestorm.com... -
Page 2: Important! Safety Information
Do Not Hot swap HDMI or HDBaseT connections - Please insert and extract cables carefully with the power SWITCHED OFF. Power is passed along transmissions so connecting and disconnecting cables while powered can result in damage to circuitry or possible injury. 2 of 22 SW-0501-HDBT HDBaseT Presentation Switcher/Scaler Installation Guide | 160211-1512... -
Page 3: Table Of Contents
5. Troubleshooting ................................19 6. Warranty and Service ..............................20 Warranty Limits & Exclusions ................................... 20 Obtaining Warranty Service ....................................20 7. Glossary of Terms ............................... 21 Publication Disclaimer ..............................22 Copyright © 2015 WyreStorm Technologies | wyrestorm.com 3 of 22... -
Page 4: Product Overview
1. Product Overview The SW-0501-HDBT allows for up to 4 HDMI and 1 VGA inputs (+audio). The internal scaler provides instant source switching by matching the resolution of the sink device up to 1920x1200p. There is also an adjustable microphone input with selectable phantom power, which can be mixed with source audio and sent via the audio output. -
Page 5: Front Panel
Press to select VGA input as the current source. An illuminated LED indicates the currently selected source VGA Input Selection is VGA. Status Flashing (at 2 second intervals): The SW-0501-HDBT is operating normally. Solid: The SW-0501-HDBT is powered On. (Power) Copyright © 2015 WyreStorm Technologies | wyrestorm.com... -
Page 6: Rear Panel
RS-232 Wiring for more details. Reset Press and hold for 5 seconds while the SW-0501-HDBT is powered on to restore factory default settings. 19-pin type A HDMI female digital video/audio input. HDMI In 1-4 Supports HDMI and DVI/D (requires adapter-not included). -
Page 7: Specifications
10% ~ 90%, non-condensing Dimensions and Weight Height 50mm / 1.9in Width 220mm / 8.6in Depth 270mm / 10.6in Weight 2.0kg / 4.40lbs Regulatory Safety and Emission CE | FCC Copyright © 2015 WyreStorm Technologies | wyrestorm.com 7 of 22... -
Page 8: Wiring And Connections
2. Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in this entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment. -
Page 9: Ir Wiring
Remote I/O Control Device Wiring The type of category cable used and the distance between The SW-0501-HDBT may be controlled using a contract the switcher and receiver can restrict the available video closure remote I/O device. Connection uses an 11-pin resolution. -
Page 10: Rs-232 Wiring
RS-232 Wiring There are 3 different RS-232 connections on the SW-0501-HDBT that use 2 different connectors. RS-232 1 - Control of the SW-0501-HDBT using a 4-pin phoenix connector. RS-232 2 - Control of local devices using a 4-pin phoenix connector. - Page 11 This method can only be used if the switcher will not be controlling a local device using RS-232 2 as the port will be used to jump the signal to the HDBaseT RS-232. Copyright © 2015 WyreStorm Technologies | wyrestorm.com...
-
Page 12: Installation
3. Installation Basic Wiring Diagram 12 of 22 SW-0501-HDBT HDBaseT Presentation Switcher/Scaler Installation Guide | 160211-1512... -
Page 13: Audio/Video Connections
Do not connect or disconnect (hot plug) the HDMI or HDBaseT connections while the switcher is powered on. Doing so may cause damage to the switcher or connected devices. Install the SW-0501-HDBT on a solid flat surface such as a cabinet or rack shelf located in a dry, well ventilated area. Connect the sources to the switcher: Note: While not shown, sources may be routed through desk plates located on table or in podiums. -
Page 14: Control And Lan Connections
Control and LAN Connections While the SW-0501-HDBT may be controlled using the front panel buttons, in most installations this may not be possible due to the switcher being hidden in a rack or cabinet. Control of the switcher in these installations is via either a contact closure switching device or RS-232. -
Page 15: Switcher Configuration
Default- Username: admin / Password: admin Configuring Source Auto Switching By default, the SW-0501-HDBT is set to automatically switch between sources based on signal. If this is not the desired operation, auto switching can be disabled. Access the Web-UI. See Accessing the Web User Interface (Web-UI) Navigate to: Functions >... -
Page 16: Configuring Edid Operation
Click Apply to save the changes. Tip: WyreStorm recommends setting the audio output level to 0dB to start as the output will be at an average level for most environments. 16 of 22 SW-0501-HDBT HDBaseT Presentation Switcher/Scaler Installation Guide | 160211-1512... -
Page 17: Display Power Management Configuration
Navigate to: System > Password In the New Password field, enter the new password ranging from 4 to 16 alphanumeric characters. Note that the password is case sensitive. Click Apply to save the changes. Copyright © 2015 WyreStorm Technologies | wyrestorm.com 17 of 22... -
Page 18: Rebooting And Restoring Factory Defaults
Status & Statistics – displays the latest source and display information. Version Info – current firmware version installed in the switcher. Log – displays the last 100 recorded operations 18 of 22 SW-0501-HDBT HDBaseT Presentation Switcher/Scaler Installation Guide | 160211-1512... -
Page 19: Troubleshooting
WyreStorm recommends using a cable tester or connecting the cable to others devices to verify functionality. Contacting Technical Support Should further clarification of the content of this manual or assistance on troubleshooting be required, please contact WyreStorm technical support. North America: 844.280.WYRE (9973) EMEA/ROW: 44 (0) 1793 230 343 support@wyrestorm.com... -
Page 20: Warranty And Service
Obtaining Warranty Service Prior to returning a WyreStorm product for factory service, a service authorization must be obtained from a WyreStorm technical support representative. At the time of contact an address for shipping and an authorization number will be supplied. Refer to... -
Page 21: Glossary Of Terms
High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Internet Protocol Infrared Local Area Network Personal Computer Power over HDBaseT Transmission Control Protocol User Datagram Protocol Universal Serial Bus Video Graphics Array Copyright © 2015 WyreStorm Technologies | wyrestorm.com 21 of 22... -
Page 22: Publication Disclaimer
WyreStorm reserves the right to change software, control codes and specifications without notice. WyreStorm will not be liable for any use of this information or any changes it may make to those products. The use of this information constitutes an agreement by the user to these limitations and exclusions.
