SW-540-TX-W
User Manual
v1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW-540-TX-W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wyrestorm SW-540-TX-W

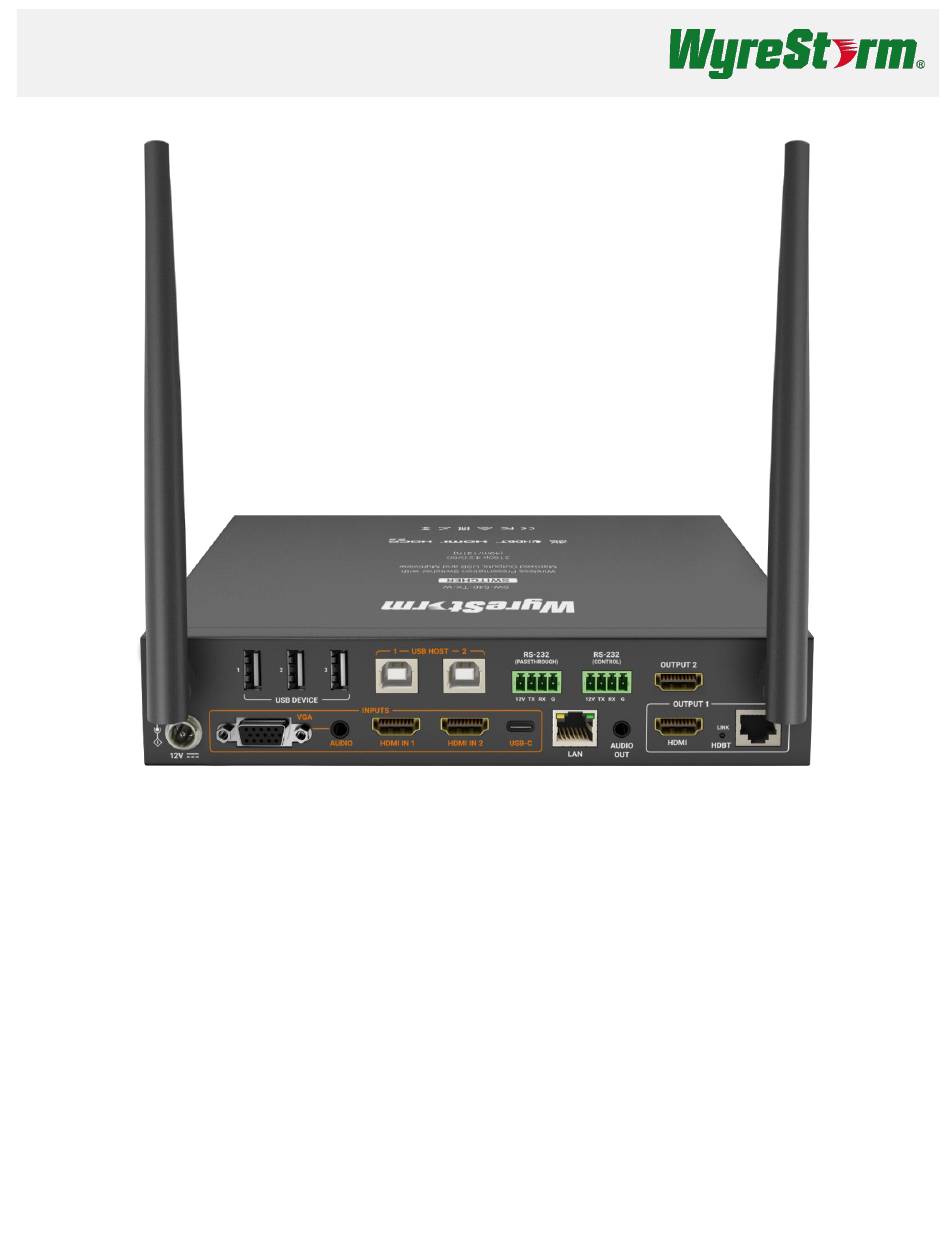

  • Page 1 SW-540-TX-W User Manual v1.0...
  • Page 2: Table Of Contents

    Wireless Access Point & Casting ....................... 7 Output Settings ............................9 Adjusting EDID ............................10 Display Control ............................11 Splash Screen ............................12 Copyright © 2021 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973) 2 of 12 SW-540-TX-W User Manual | 210908...

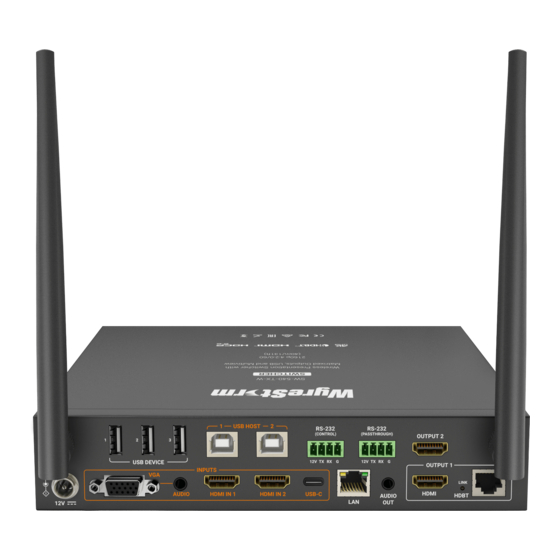

  • Page 3: Connections

    3.5mm stereo audio de-embed which will follow Output 1. Output 1 features a mirrored HDMI and HDBaseT output. Output 2 is a semi- A/V Outputs discrete matrix output (details on limitations below). Copyright © 2021 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973) 3 of 12 SW-540-TX-W User Manual | 210908 Support@WyreStorm.com...
  • Page 4: Usb Behavior & Performance

    USB Behavior & Performance The SW-540-TX-W features 3 x USB host ports. Two ports are USB-B 2.0 connections and the third utilizes the USB-C port. By default, the switcher is configured to auto-switch the active USB host based on the selected video input port.
  • Page 5: Multiview

    Multiview The SW-540-TX-W is capable of processing up to four inputs on a single display in a multiview layout. By default, the switcher automatically builds the multiview layout based on the number of simultaneous sources that are connected. For example, if two laptops are connected via HDMI 1 and HDMI 2 the switcher will automatically build a split screen layout.
  • Page 6: Input Switching & Modes

    Input Switching & Modes The SW-540-TX-W features three unique switching modes. Standard: This is the default mode of the switcher. It supports full screen and multiview processing. Multiview layouts are automatically built by the switch when it detects a second, third or fourth input. When the switch is in multiview mode you will be able to select or de-select multiple inputs for the Primary output (output 1).
  • Page 7: Wireless Access Point & Casting

    The access code can be either a static 4-digit number or uniquely generated each time a new casting session is attempted by checking the Auto box. Copyright © 2021 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973)
  • Page 8 This is adjustable for both the 2.4 and 5Ghz bands. WyreStorm recommends leaving this set on the default values. Only change a wireless channel if severe interference is occurring or connection problems arise.
  • Page 9: Output Settings

    If you are using the 3.5mm stereo audio output and experience lip-sync problems, you can adjust the latency on the Output Settings webpage as well. Simply enter in a value between 0-200ms and click apply. Copyright © 2021 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973)
  • Page 10: Adjusting Edid

    Each input allows for manual assignment of an EDID. If you experience compatibility problems with a device, you can adjust the EDID for the input port respectively. You can also upload a custom EDID binary file if the pre-loaded files do not meet a timing requirement. Copyright © 2021 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973)
  • Page 11: Display Control

    Display Control The SW-540-TX-W is capable of sending both CEC and RS232 (RS232 for HDBT only) signals to a connected display for power on/off. CEC will use the default one-touch play and standby commands. These values will work with most major display manufacturers.
  • Page 12: Splash Screen

    Splash Screen When no video signal is being transmitted, the SW-540-TX-W will display a splash screen. This screen shows quick connection steps, so users understand how to cast to the display. This image can be replaced with any image you require.
