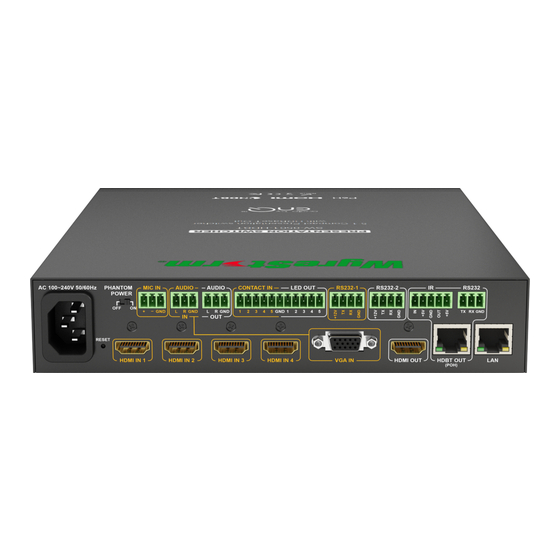

Wyrestorm SW-0501-HDBT Quick Start Manual

5x1 HDMI over HDBaseT Presentation Switcher/Scaler
with Mic Input and CEC control (1080p to 100m/328ft)
SW-0501-HDBT
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features before beginning the
installation process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document versions,
and the WyreStorm Maintenance Suite
• Install the latest firmware to ensure that all features described in this
document are available.
• WyerStorm recommends the use of static IP addresses to ensure that the
devices IP address will not change after power is restored or if network
components are changed. See
on changing the IP Address.
• In order to use ScreenLink software is required on the presentation PC. See
ScreenLink Presentation Software
• When using ScreenLink, the switcher is required to be on the same Local
Area Network (LAN) as the presentation PCs.
Basic Wiring Diagram
The following diagram is provided to illustrate a typical basic system containing the SW-0501-HDBT.
KEY
HDMI/DisplayPort
HDBaseT/Ethernet
Power
Copyright © 2018 WyreStorm Technologies |
SW-0501-HDBT Quickstart Guide | 180910
configuration tools.
Switcher First Time Configuration
for details on using ScreenLink
Podium PC
with Microphone
Analog Audio
Speaker Level Audio
Analog Video
HDMI
wyrestorm.com
In the Box
1x SW-0501-HDBT Presentation Switcher
1x 100~240V AC 50/60Hz Power Cord with US Plug
1x 11-pin Phoenix Connector
2x 4-pin Phoenix Connector
3x 3-pin Phoenix Connector
1x Table Mounting Bracket Kit
1 x Quickstart guide (This Document)
for details
Additional Information
Visit the product page on
documentation, firmware, software, and control drivers.
• SW-0501-HDBT
• SceenLink Presentation Software
• Control System
• Control Drivers for Various Control Systems
VGA Source
Analog Audio
Speaker Level Audio
1 of 4
Quickstart Guide
wyrestorm.com to download additional
Latest Firmware
for PC or Mac
API
Control System
Ethernet
IR RS-232
VGA Video
Wireless
Router
Ethernet
RX-70-4K
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
