- Page 1 Application Programming Interface Product Model SW-130-TX Document Revision V1.0 Document Date June 2020...
-
Page 2: Table Of Contents
Troubleshooting ..........................8 Contacting Technical Support ......................9 Document Revision History ......................9 Publication Disclaimer ........................10 Copyright © 2020 WyreStorm Technologies | WyreStorm.com 2 of 10 UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) SW-130-TX API | 200706... -
Page 3: Overview

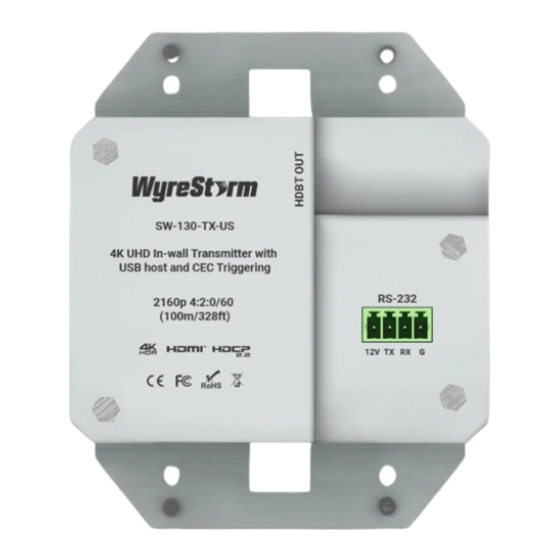

RS-232 Connection The following wiring diagram shows the pinout for the WyreStorm device. While not shown, connect the TX (transmit) to RX (receive) pins at the control system or PC side of the cable. Most control systems and computers are configured for Digital Terminal Equipment (DTE) where pin 2 is RX and pin 3 is TX. -
Page 4: Command Overview
Note: Most 3rd-party control software will either append these characters automatically or an option to specify them will be present. It is important that the last delimiter character is LF and not CR. Copyright © 2020 WyreStorm Technologies | WyreStorm.com 4 of 10 UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) -
Page 5: Switching Inputs
Query Active Input Command structure: GET SW Response Syntax: <INPUT> Example Command: GET SW Example Response: hdmi1 Copyright © 2020 WyreStorm Technologies | WyreStorm.com 5 of 10 UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) SW-130-TX API | 200706... -
Page 6: Controlling Display Power Via Cec
Command structure: GET AUTOCEC_M Response Syntax: AUTOCEC_M <PRM> Example Command: GET AUTOCEC_M Example Response: AUTOCEC_M on Copyright © 2020 WyreStorm Technologies | WyreStorm.com 6 of 10 UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) SW-130-TX API | 200706... - Page 7 GET AUTOCEC_D Example Response: AUTOCEC_D 5 Note: <PRM> is in minutes. A value of 5 is equal to a 5-minute delay. Copyright © 2020 WyreStorm Technologies | WyreStorm.com 7 of 10 UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
-
Page 8: Troubleshooting
Reboot Switcher Command: REBOOT No Parameters Response: REBOOT Restore Factory Defaults Command: RESET No Parameters Response: RESET Copyright © 2020 WyreStorm Technologies | WyreStorm.com 8 of 10 UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) SW-130-TX API | 200706... -
Page 9: Contacting Technical Support
Phone: UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) Contact Request: http://wyrestorm.com/contact-tech-support Document Revision History V1.0 – June 2020 Initial release of document Copyright © 2020 WyreStorm Technologies | WyreStorm.com 9 of 10 UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) SW-130-TX API | 200706... -
Page 10: Publication Disclaimer
WyreStorm reserves the right to change software, control codes and specifications without notice. WyreStorm will not be liable for any use of this information or any changes it may make to those products. The use of this information constitutes an agreement by the user to these limitations and exclusions.
